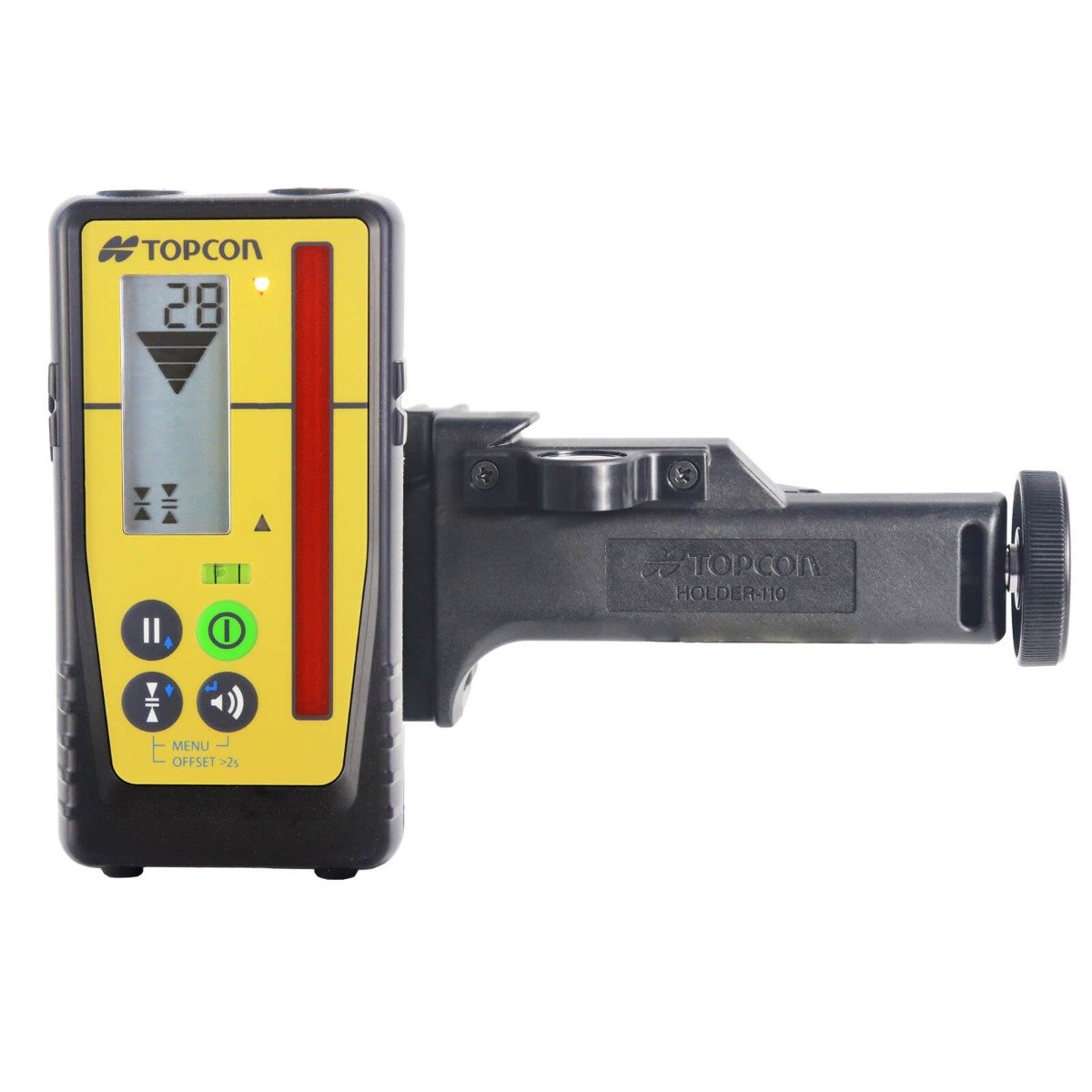

Topcon LS-100D Rotary Detector with "mm / inch" Display
Versatile and designed for maximum user convenience, the LS-100D features a digital readout to confidently deliver elevation and vertical alignment control on demand.
It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. The large and bright LCD displays (front and rear) feature 9-channels of grade information and digitally show the distance to on-grade. By pressing the Hold button, the display is locked so the user can conveniently read the results. For added versatility, three colored LED’s and a strong magnet mount are embedded for vertical operation, ideal for steel erection or operator grade checking while excavating.
To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI alert) or when the laser battery is low.
Example usage
Setting and checking jobsite elevation and depth for:
Cut and fills
General grading
Foundations, forms, and footings
Excavations
Specification
Working Range (diameter): 800m
Vertical Detecting Range: 90 mm (3.5 in.); (-30 mm to +60 mm) (-1.1 in to +2.3 in.)
LCD Digital Readout Range: 70 mm (2.7 in.); (-20 mm to +50 mm) (-0.7 in. to +1.9 in.)
Strobe Light Suppression: Yes
Unit: mm / cm / inch / fractional inch
On-Grade Resolution:
±0.5 mm (±0.02 in.):
±1.0 mm (±0.05 in.)
±2.0 mm (±0.10 in.)
±5.0 mm (±0.20 in.)
±10.0 mm (±0.50 in.)
LCD Grade Indicators 9 Channels
LED Grade Indicators: Orange, Green, Red (On/Off selectable)
Display LCD on each side
Buzzer: Loud/Low/Off selectable
Operating Time: Up to 45 hours with alkaline batteries
Battery Level Indicator: LCD Icon
Auto Shut-off Approx: 30 minutes
Dust/Water Rating: IP67 (IEC 60529)
Comprises of
Topcon LS-100D Detector
1 x AA Alkaline Battery

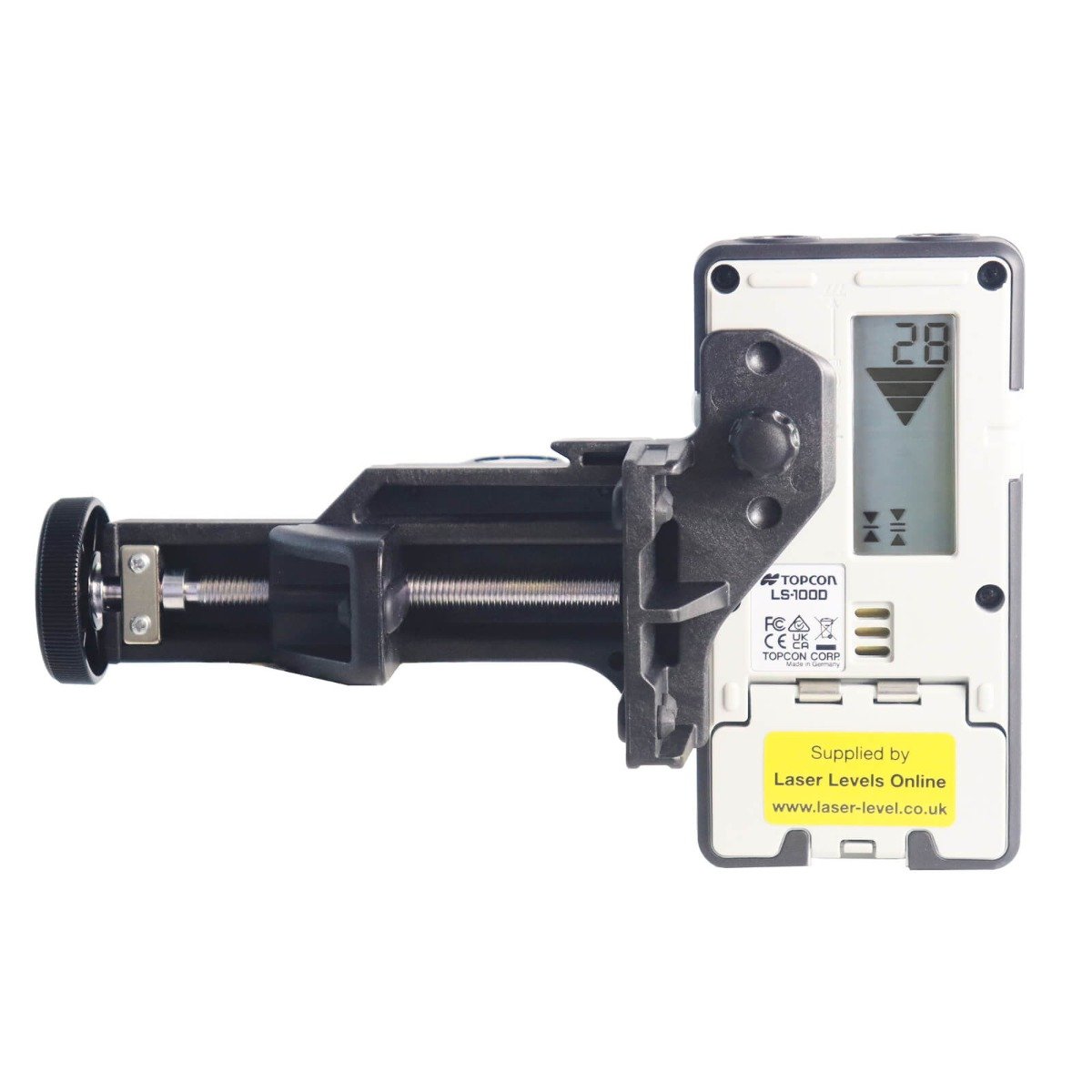

Staff Mounting Bracket (Holder 110)
Instruction & Safety Manual
Outlet Warranty: 1 Year
