Fukuda FRE-205 DUO Laser Kit - Outlet

Overview

We are the main UK Distributors for the FUKUDA brand of laser levels, where the FRE-205 is by far the most popular in their range. We have been selling it for many years and these kits have proved to have a very good reliability record.

The FRE-205 is a horizontal levelling laser which has been designed specifically for exterior Groundworks but at a very affordable price. It is constructed with a rugged housing and has an automatic drift system (bump sensor), together with the optional Fukuda RC2054 Remote Control enabling the facility to Dual Grade; making this the laser of choice for Groundworks Contractors working to a budget.

Included in this special DUO kit is an EK-112M Crossline laser to cover most indoor work. Its auto levelling has bright red beams & is supplied with an "L" shaped, magnetic mounting bracket (for wall mounting etc). This combination has proved to be very popular even for Groundworkers who have found the Crossline laser useful for other indoor tasks.

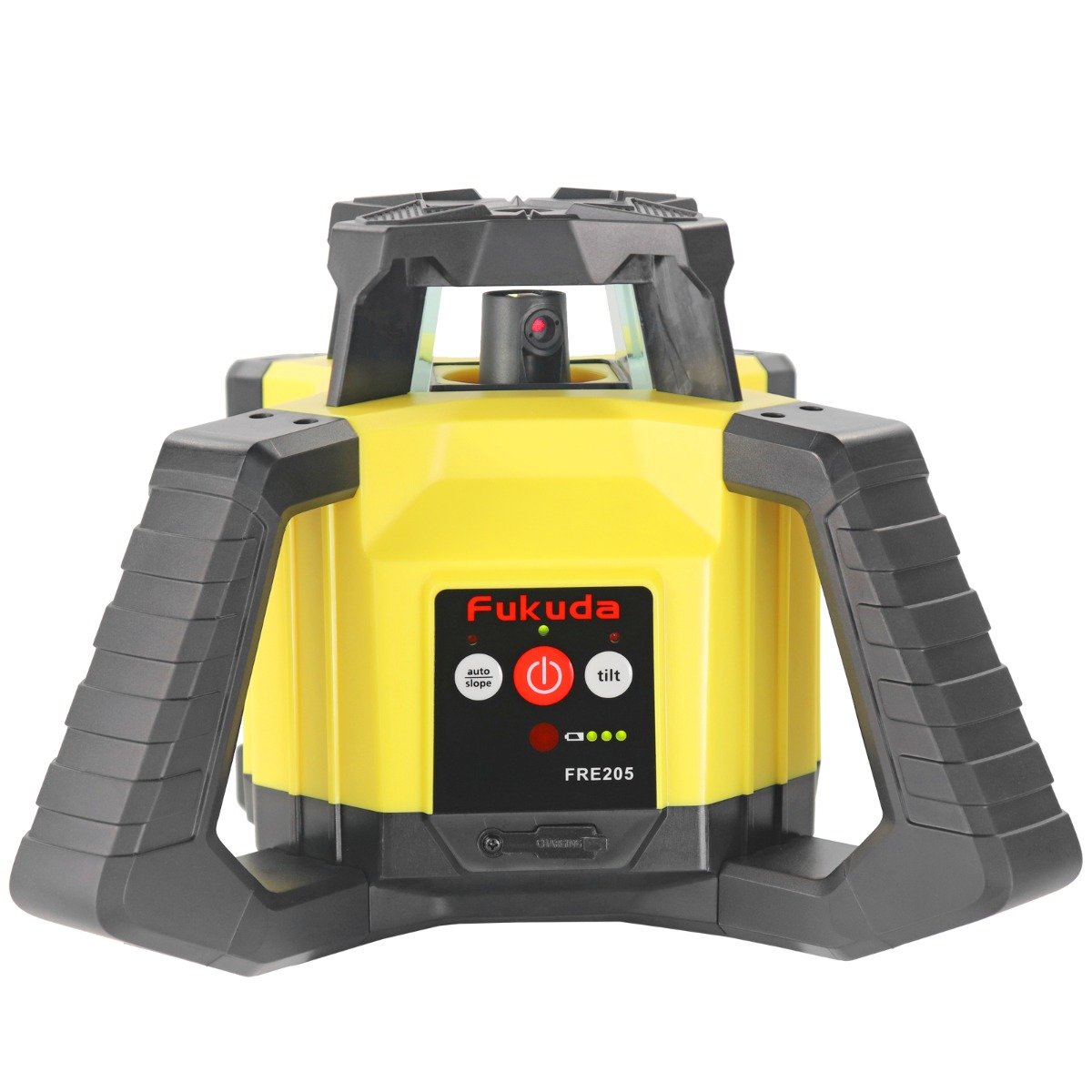

Rotary Laser Level:

The FRE-205 auto levels horizontally; is accurate to +/-3mm over 30m and has a 500 metre range, using the supplied laser detector.

For site Groundworks use, the laser can be purchased with the optional Fukuda RC205-4 Remote Control enabling the dual-grade facility. Switch off the auto levelling by pressing the Manual button on the remote control. This enables the User to accurately and easily set slopes (grades) in both X and Y axis, as required.

If you need a True Grade laser (where you key in grade values), see model FRE-203XT.

Note: Outdoors, we recommend setting the rotating speed to maximum (600rpm) to give the best operating distance & stability, when using the detector. For User convenience, the FRE-205 can operate on either of its two Li-ion rechargeable batteries (supplied). These high-powered lithium batteries can either be charged in the laser or externally.

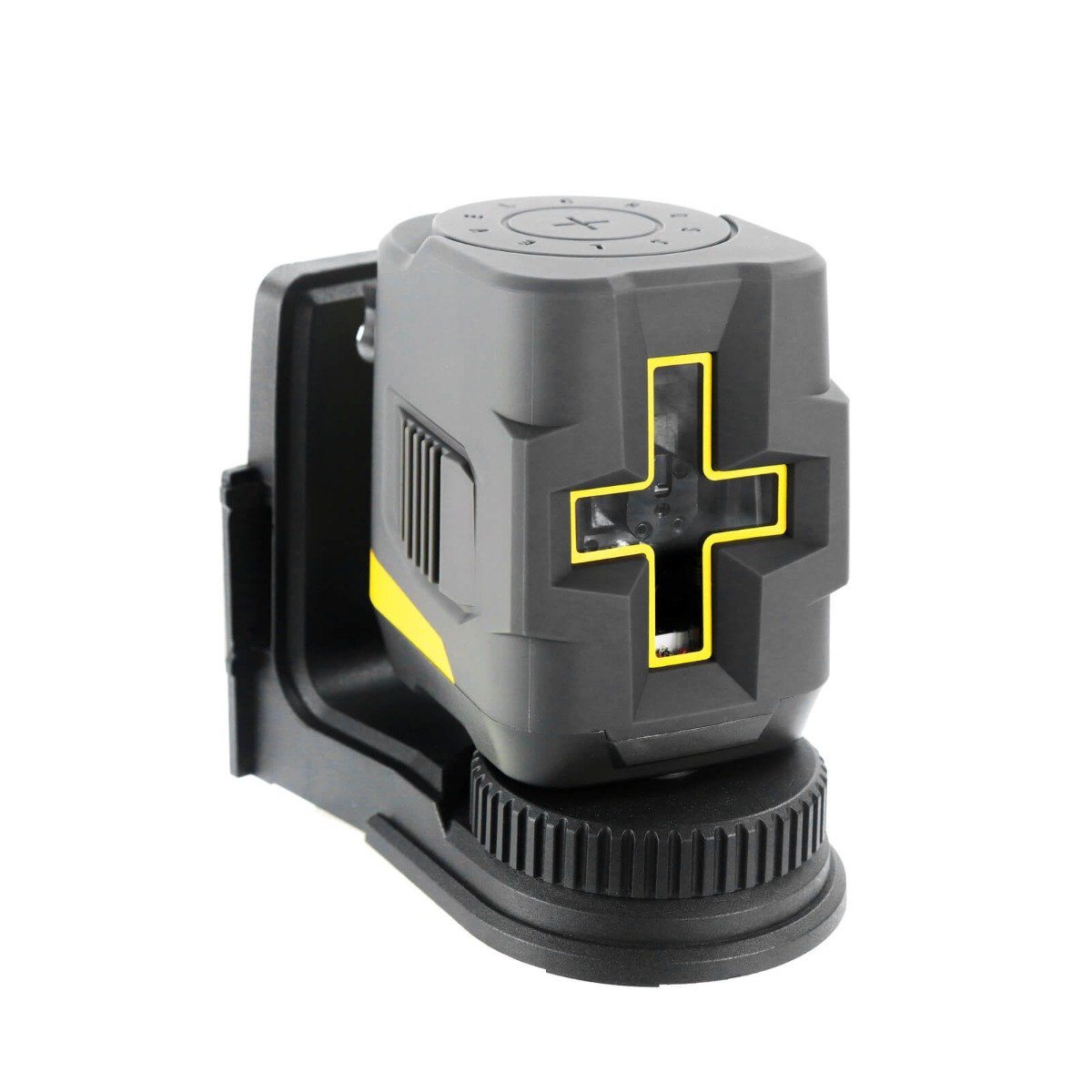

Cross Line Laser:

The EK-112M auto levels quickly & accurately; giving a fine, bright, red laser cross - ideal for both horizontal & vertical setting-out.

A transit latch protects the mechanism (to avoid transportation damage) and the case is surrounded by a rubber cover for worksite protection.

It comes with a very handy multi-function magnetic "L" shaped bracket which acts as an All-in-One system: a wall mounting Bracket with both a 1/4" and 5/8" tripod thread. This gives the User the choice of mounting the laser onto a tripod or a Floor to Ceiling Pole with either 1/4" or 5/8" threads. (Please see our Accessories section for various Pole Kits.)

This "2 in 1" DUO package covers both indoor & outdoor groundworks applications, for the General builder.

All in all, its a very versatile & popular kit.

Want to set slopes or gradients?

If you want to be able to set slopes or gradients with the FRE-205 you will need to add the Fukuda RC2054 remote control to the kit.

This remote control gives you the option of controlling the unit from the measuring staff position up to a distance of 20m away, when doing manual slope matching. You simply switch the laser to manual, then using the "arrow" buttons, slope the laser beam in the required direction. This can be in a single axis (typically for drainage) or in both axis together (dual grading). Without the remote, you do not have the ability whatsoever to set slopes or gradients, as it cannot be controlled from the laser's keypad.

Features

FRE-205 Rotary Laser

Horizontal setting only

Auto levelling

Anti-drift protection system. (bump sensor)

Dual grading in both the X / Y axis. (Requires optional RC2054 Remote Control)

Automatic / Manual mode is easily selected for use with an M401 grade adapter (not included).

Wide electronic self-levelling range (ie. It will auto level on surfaces up to +/-5 deg.)

Low battery indicator - so you don't run out of power at the wrong time!

Heavy duty glass enclosed beacon and durable sealed housing is water and dust-proof (to IP54), to ensure years of reliable operation.

EK-112M Cross Line Laser

Horizontal & Vertical red laser cross

Auto levelling

Transit latch protection

Included wall bracket / magnetic mount

Specification

FRE-205 Rotary Laser

Laser Diode: Class 2, red beam 635nM

Horizontal accuracy: ±3mm @ 30 metres

Working range: Up to 500m diameter with the supplied Detector

Levelling type: Electronic Self-levelling

Operating temp: -20 to +50 deg C.

Protection: Water and dust-proof to IP54

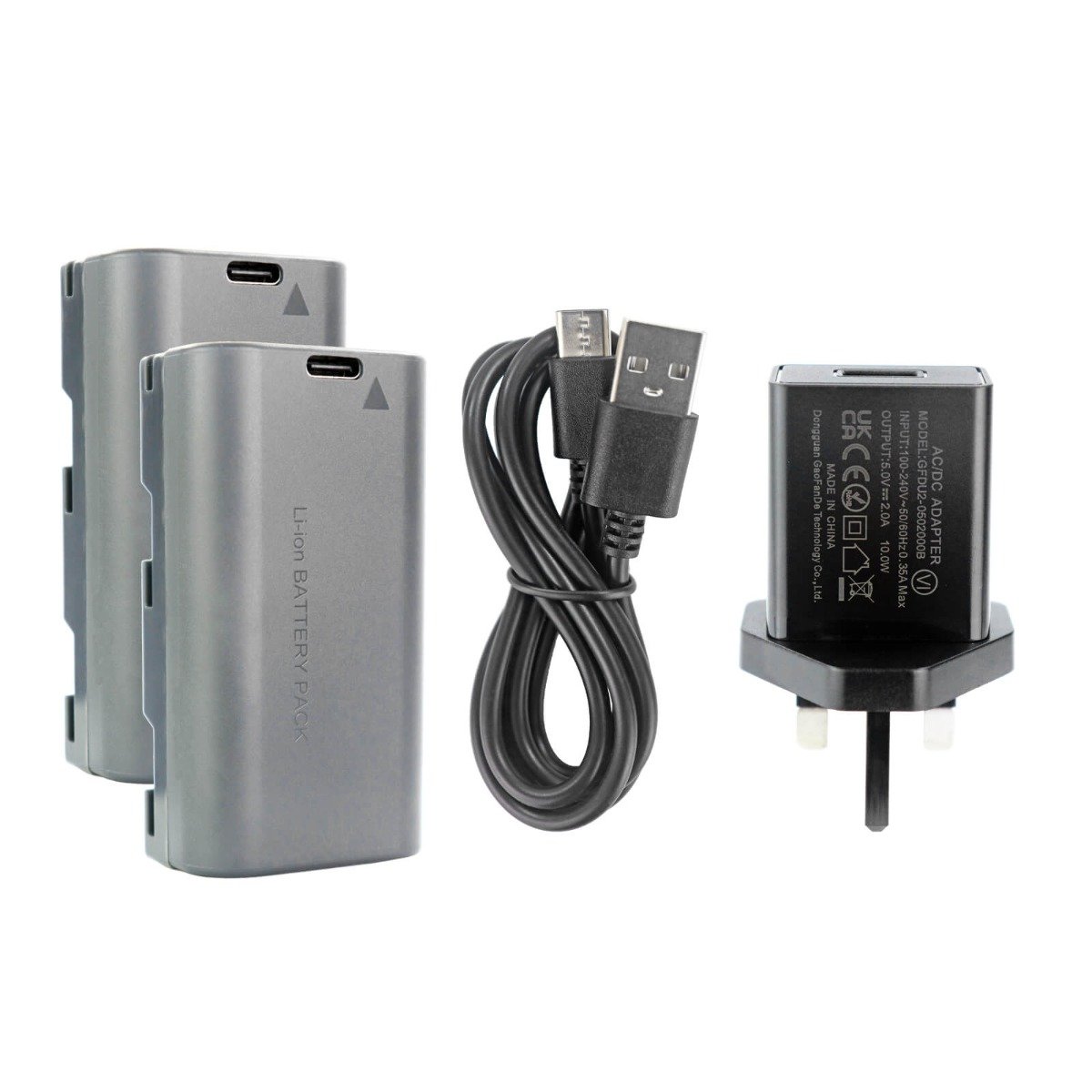

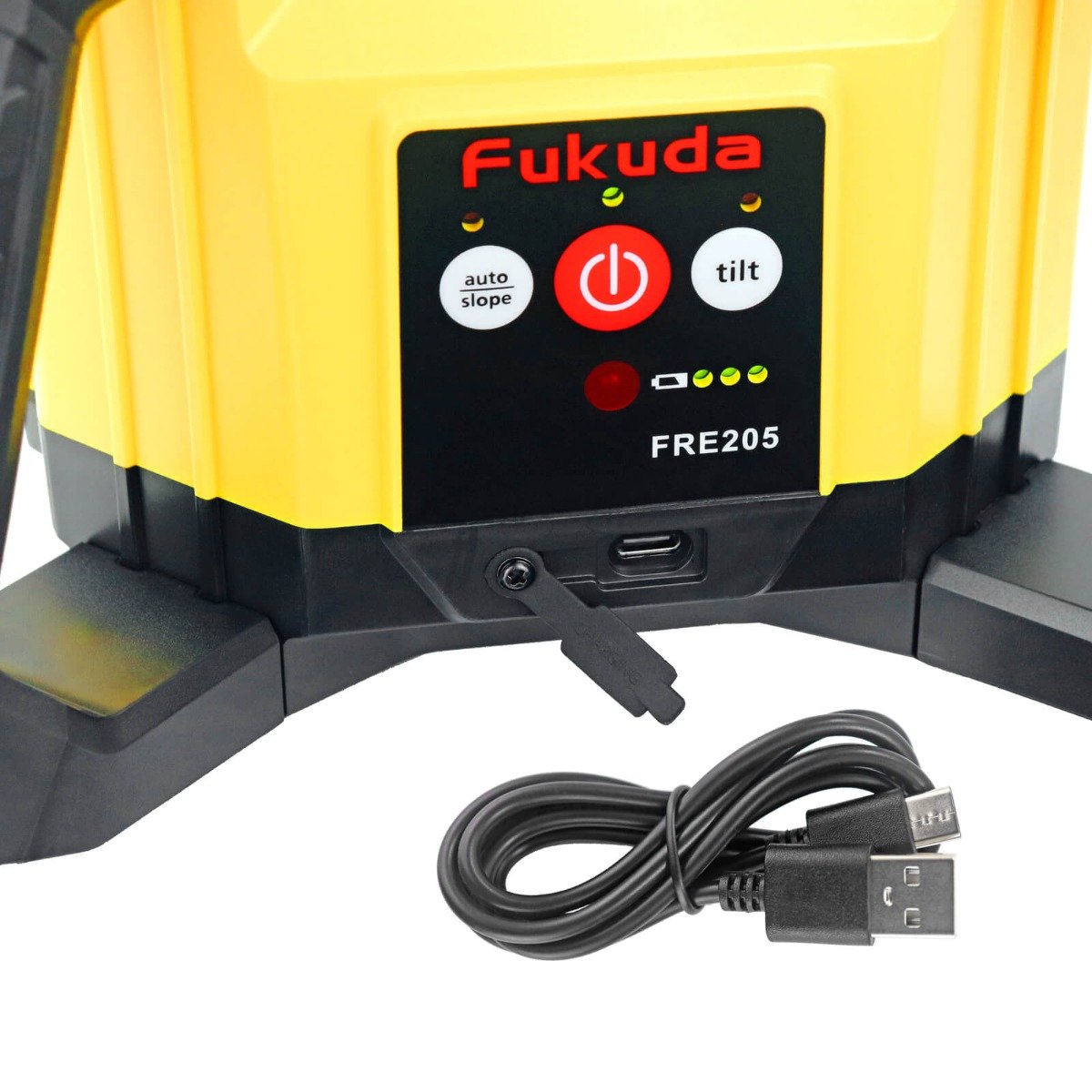

Power: 2600mAh Lithium Battery Pack with USB Type-C Charger.

Running time: approx. 25 hours continuous per battery. 2 batteries included (50 hours runtime total)

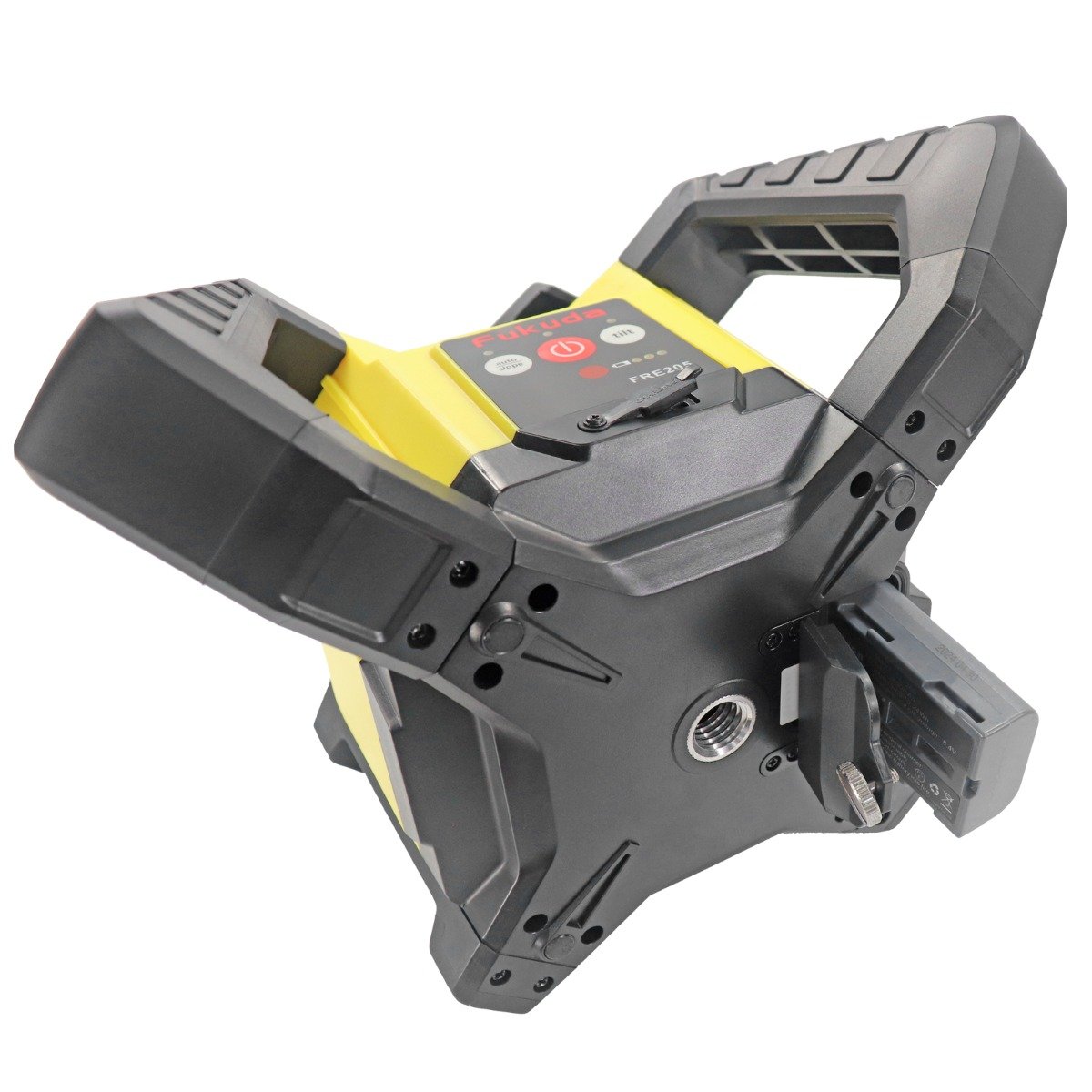

Tripod Mounting thread: 5/8" - 11 tpi

Dimensions: 250L x 200W x 177H (mm)

Weight: 1.5kg with batteries

Outet: 2 Year Automatic Warranty

EK-112M Cross Line laser

Accuracy: +/-2mm @ 10 metres

Working range: approx. 10m depending on ambient light.

Mounting thread: 1/4"

Laser diode: red beam 505-520nm (<1mW)

Laser class: 2

Self levelling range: +/-3 degrees to true horizontal.

Self levelling time: max. 5 secs.

Power supply: 2pc x AA alkaline batteries.

Battery life: at 20 deg C, 2 beams around 6hrs.

Operating temperature: -10 to +45 deg C

Unit dimensions: 77 x 66 x 85mm

Weights: Instrument with batteries, 260g.

Weights: Complete kit with laser & mounting bracket, 260g.

Technical specification

Accuracy:

+/- 3mm @ 30 metres, max. operating diameter 500m (250m either side of the instrument).

An accuracy of +/- 3mm @ 30 metres is equivalent to 0.1 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.

Dual Grade facility (Only available using optional RC2054 Remote Control):

Dual axis X and Y axis up to +/-8% (1 in 12.5)

Both X & Y axis can be set to give a maximum fall of up to 0.8m at 10m distance away. (ie. 1 in 12.5 & +/-8% grade)

Wow, received delivery of this item today and immediately carried out a 2 peg test on it. Super impressed. Over 30m this thing showed zero deviation. Strangely the two points I picked on our floor are exactly the same level - coincidence but my first two readings from level position one were 1566 &1566, my second two readings from level position two were 1556 & 1556. I like that this unit just takes standard AA's also as it means it can be stored away for long periods minus its batteries and whenever it gets called into service just pop some new AA's into it. Delivery was super quick to Ireland, well done to all at laser levels online.

Review By: Brian - Posted on 27/02/2019

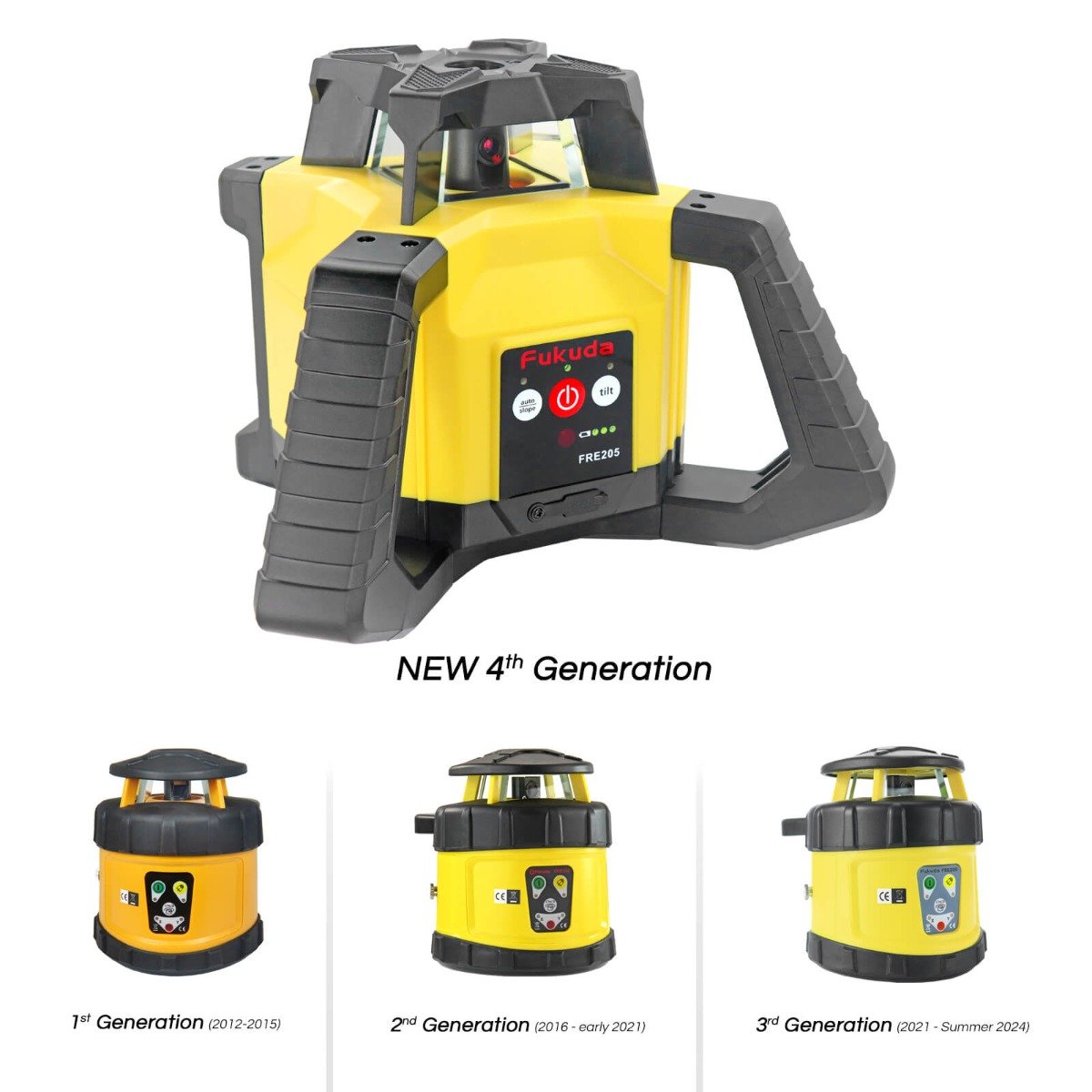

Product Evolution

The Fukuda FRE-205 Kit has evolved steadily since it's launch in 2012. With many refinements and improvements over the early 1st Generation models. The kit was vastly improved with the launch of the DUO kit in 2015 and again with the 3ʳᵈ Generation model in 2021. In Summer 2024 the Fukuda FRE-205 4th Generation was launched with a new body style which takes its styling cues from the enormously popular FRE-203X series of Lasers. The 4th Generation model also now features a 2600mAh Lithium Battery Pack which can be conveniently charged using a USB-C cable from a USB power source or AC outlet.

Example usage

This DUO kit is designed to be used by Groundworks Contractors for:

General earthworks for footings, foundations, slab laying, drainage & landscaping etc.

&

for Internal Trades:

Ideal for wall Tiling / Stud wall & partitioning / Kitchen & bedroom unit installations / all Shop Fitting & refurbishment work / Electrical conduit & lighting / Plumbing & Pipework / Shelving systems & many others.

Warranty

Fukuda 2 Year Outlet Warranty

This Outlet Fukuda FRE-205 Laser Level is covered by a 2-Year Warranty which covers all defects due to material and workmanship. Fukuda Laser products with this warranty that have failed will be repaired FREE OF CHARGE for two years from the date of purchase.

Also included in the kit

The Fukuda FRE-205 DUO Kit also includes the following accessories:

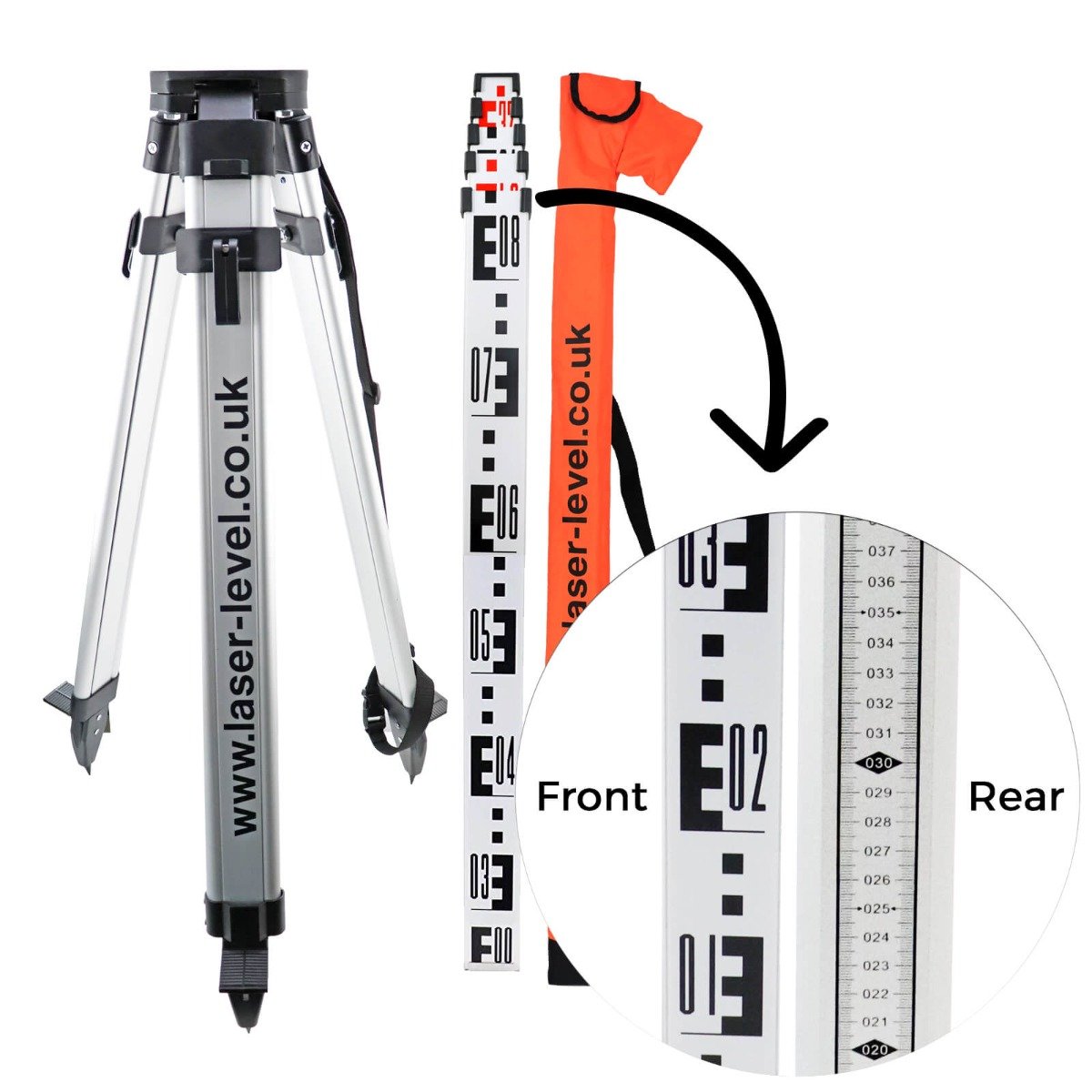

4m Telescopic Levelling Staff (Model: TLS4S)

4m, 5-section, Telescopic Levelling Staff.

Five robust aluminium sections with abrasion proof scale.

Closed length height 970mm, extending to maximum height of 4m.

Automatic locking buttons when extended.

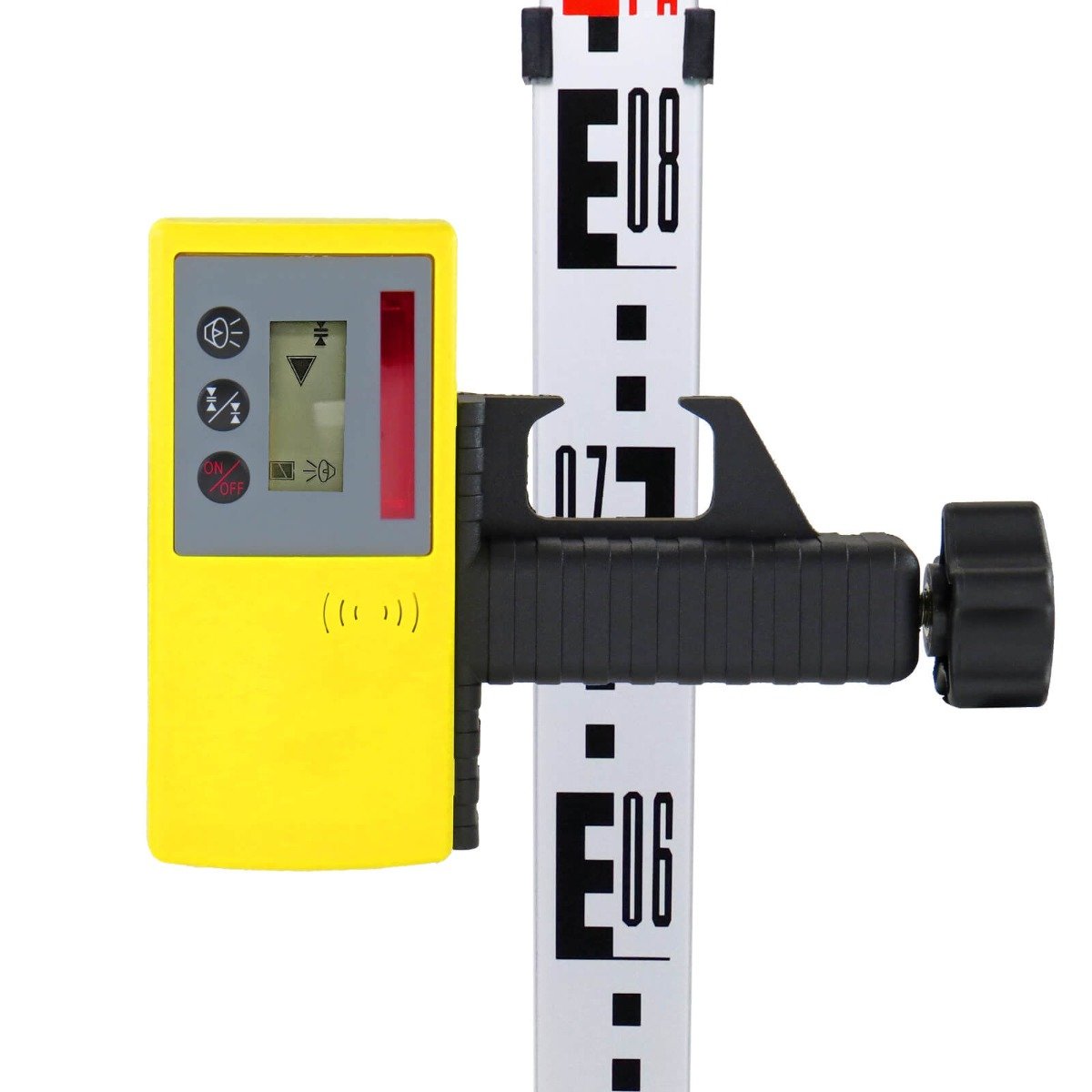

Millimetre scale on back and E-graduations (1cm) markings on front

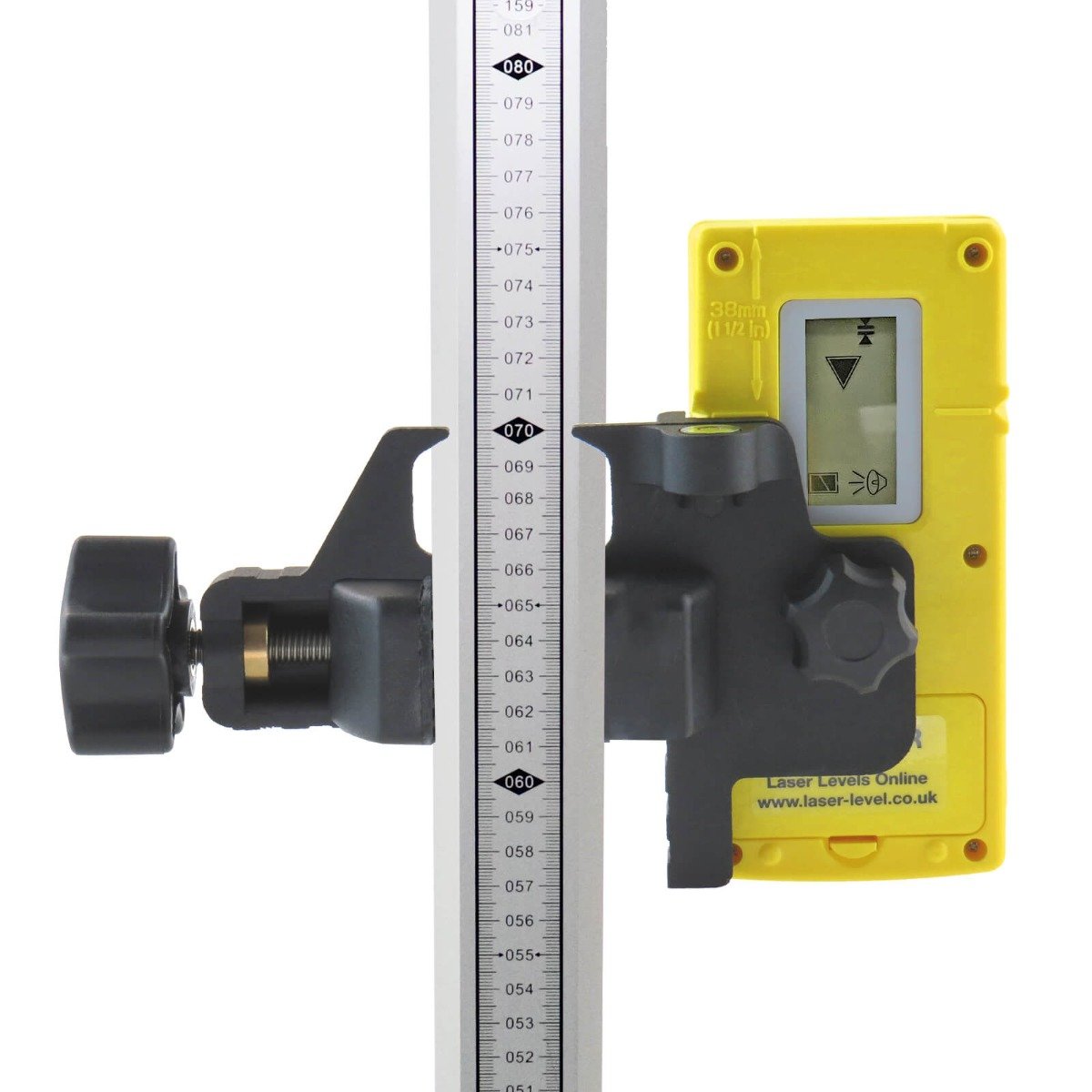

Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.

Red / Black coded front sections.

Accepts all Laser detector mounting brackets.

Removable, rear-mounted circular Bubble Level.

Carry sleeve.

Height: 0.97m closed length to extended max 4m.

Weight 1.15kg.

Surveying Tripod (Model: S-LAT)

Maximum 1.5m height.

Robust aluminium tripod.

Extending legs with quick-release, toggle clamp adjustment.

Flat top, mounting head.

Head size 130mm

5/8 inch x 11 thread.

Closed length 0.925m

Max. Opened height 1.5m approx.

Weight: 3.4kg

Carry strap

Upgrade options

Upgrade the kit to include the Fukuda RLR200D Detector - The perfect choice for the Fukuda FRE-205 DUO Kit!

Fukuda Lasers have developed a "top of the range" detector for the Professional Tradesperson which is easy-to-use and accurate. It is also ideal for use with any brand of rotating, red beam laser level.

The RLR200D is a highly versatile, well-featured laser detector for both basic and advanced levelling & aligning applications; designed for general landscaping, concrete slabs/footings and site preparation Contractors. It features a digital readout of elevation that provides a numeric display of +30mm to -60mm (total 90mm range) & with a 1mm resolution. Accurate measurements can be made without moving the staff clamp, saving time and increasing productivity. The readout is displayed on large front and rear LCD's, showing exactly how far the elevation is from on-grade. A back-light assists readings in low ambient lighting.

Selectable units of measurement can be displayed to meet your specific application: in mm or inches. A 100mm long red pick-up window, allows quick acquisition of the laser beam. Readings are shown in three ways: via back and front displays, coloured LED indication and by audible sound, selectable loud/normal/quiet/off. This detector is designed to survive tough construction site conditions, being water and dustproof to IP65. It can be used as either a hand-held or staff mounted detector for a wide range of general construction applications.

Features:

Digital readout elevation range of 90mm, so not only will high or low arrows be displayed, but the exact distance from grade will also be numerically displayed. This eliminates the need to get exactly "on-grade" to make measurements, thus speeding up setting-out.

Large 100mm reception height acquires the beam quickly and makes it easy to stay in the beam.

Simultaneous elevation LED's signal in low light levels and over a longer range for easier reading in poor lighting conditions.

Multiple deadband sensitivity settings, three in all, allows adaptation to meet all your jobsite requirements.

Dust and weatherproof housing to IP65.

Continuous usage, 40 hours battery life with auto switch-off facility.

RLR200D Detector upgrade includes:

RLR200D instrument

4 x type AAA alkaline batteries

FMB-02 Staff Mounting clamp bracket

Instruction & safety manual

Please Note: If you upgrade to the RLR200D Detector, the default Detector will be removed from the kit.

Do you need ShockWatch® adding to your Laser?

The optional ShockWatch impact indicator clip is a tamperproof, mechanically activated device that turns bright red to indicate mishandling or after the Laser has received an excessive impact. Designed to mount directly onto the Laser Level, the clip is compact and economical and provides 360° impact detection alerting the user to check the Lasers Calibration before use. If this option is selected, our Technicians will fit your Laser with a Shockwatch prior to dispatch, giving you and your users extra piece of mind on the job site.

For further details of ShockWatch®, please Click Here.

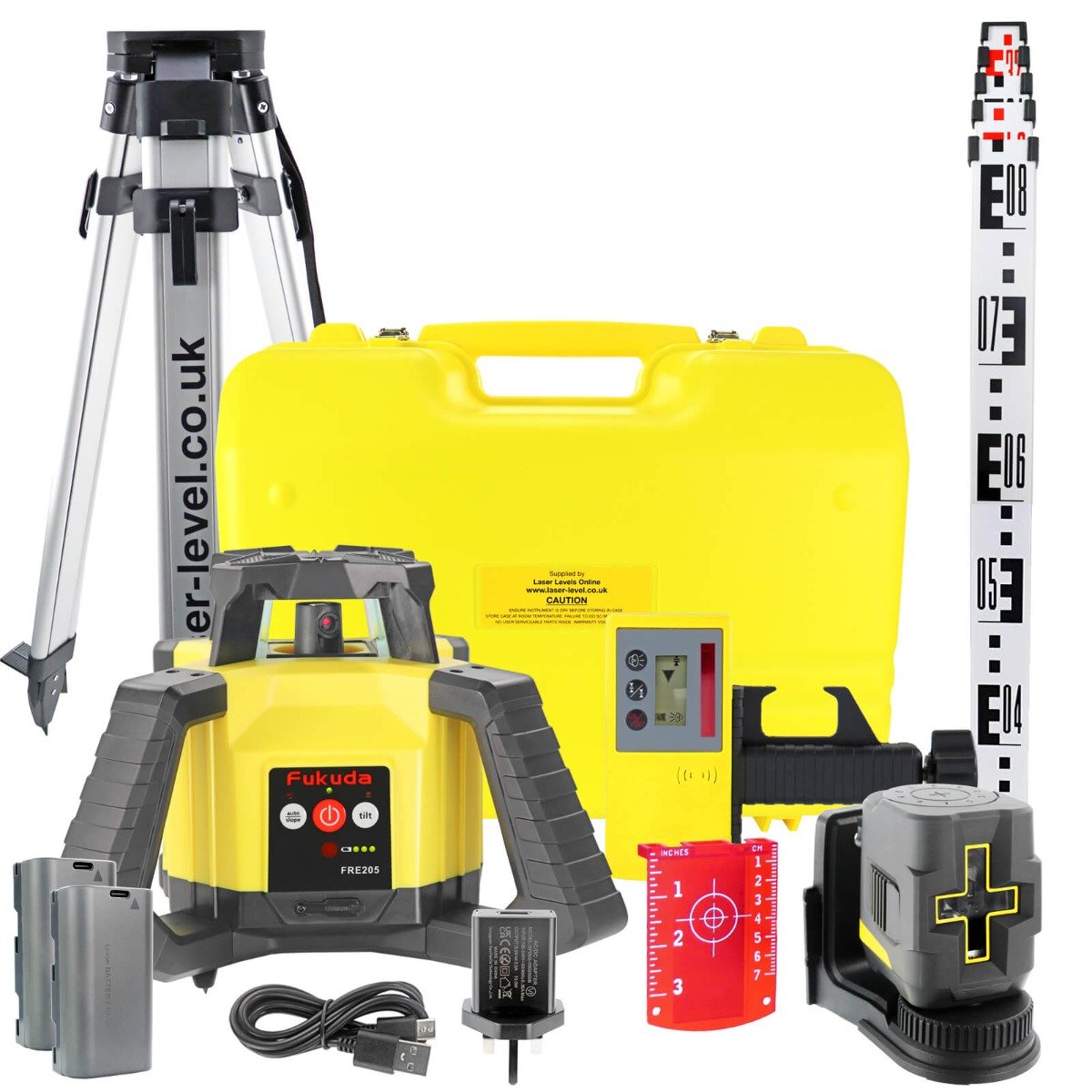

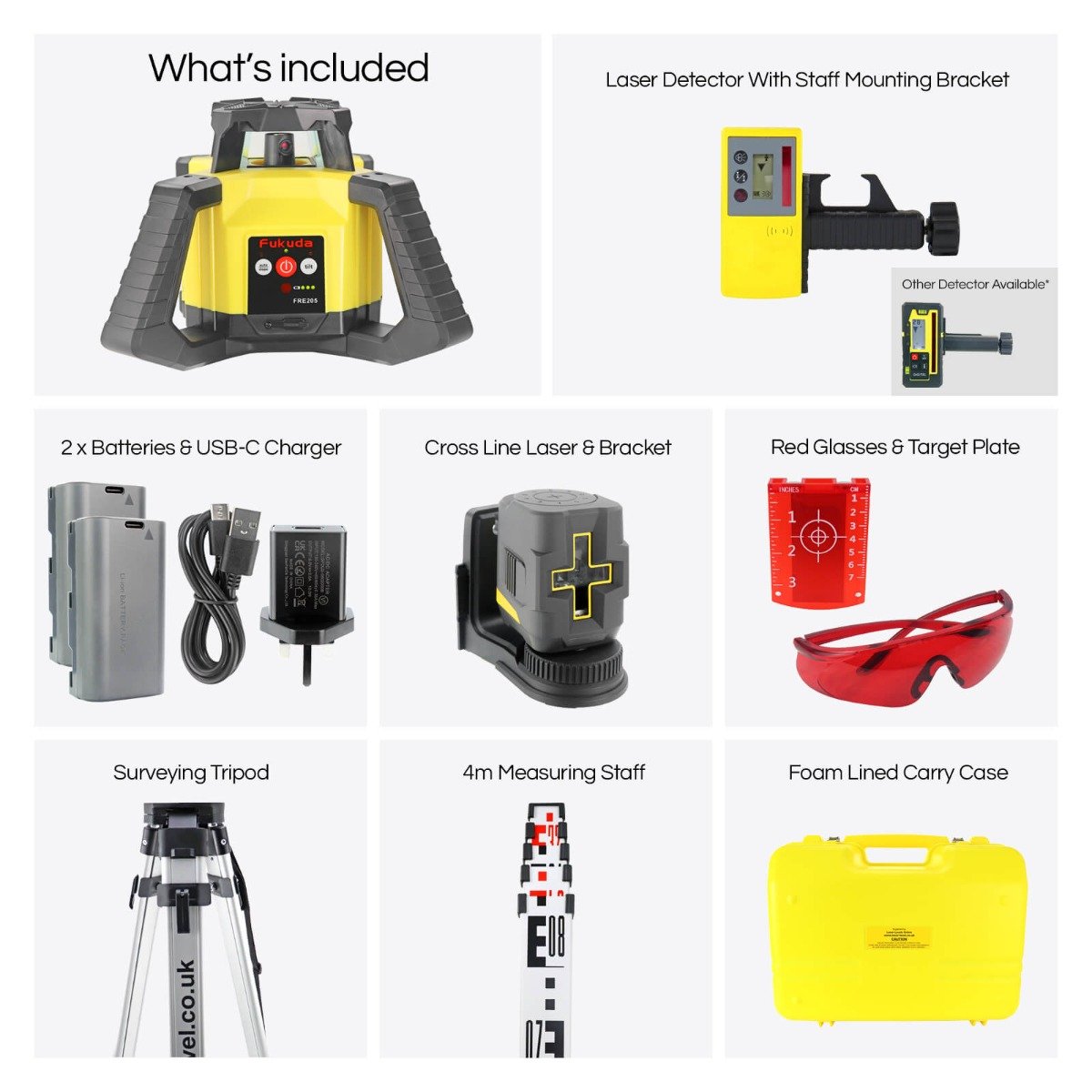

Kit comprises of

4ᵗʰ Generation Fukuda FRE-205 Rotary Laser Level (checked and pre-calibrated)

Fukuda FRD300R-205 Laser Detector with staff mounting bracket & batteries

Option to upgrade to Fukuda RLR200D Laser Detector with Digital Readout (mm / inch)

Fukuda EK-112M Cross Line Laser (checked and pre-calibrated)

L-shaped Magnetic Wall Bracket (for EK-112M)

2 x AA Alkaline Batteries (for EK-112M)

2 x 2600mAh Lithium Battery Packs (for FRE-205)

USB-C Charging Cable & UK USB Mains Battery Charger

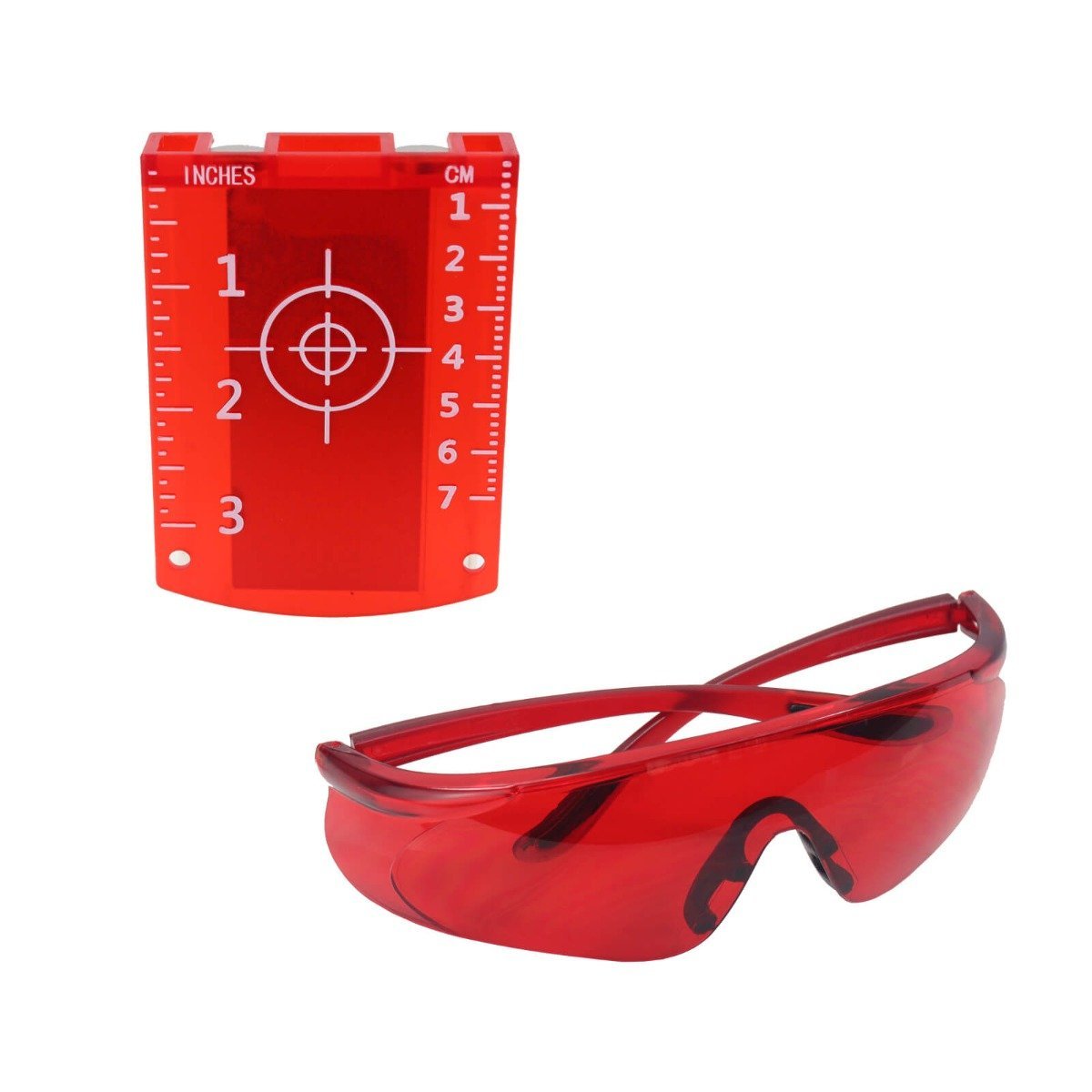

Red Laser Enhancement Glasses

Red Magnetic Target Plate

Surveying Tripod

4m Measuring Staff, type TLS4S

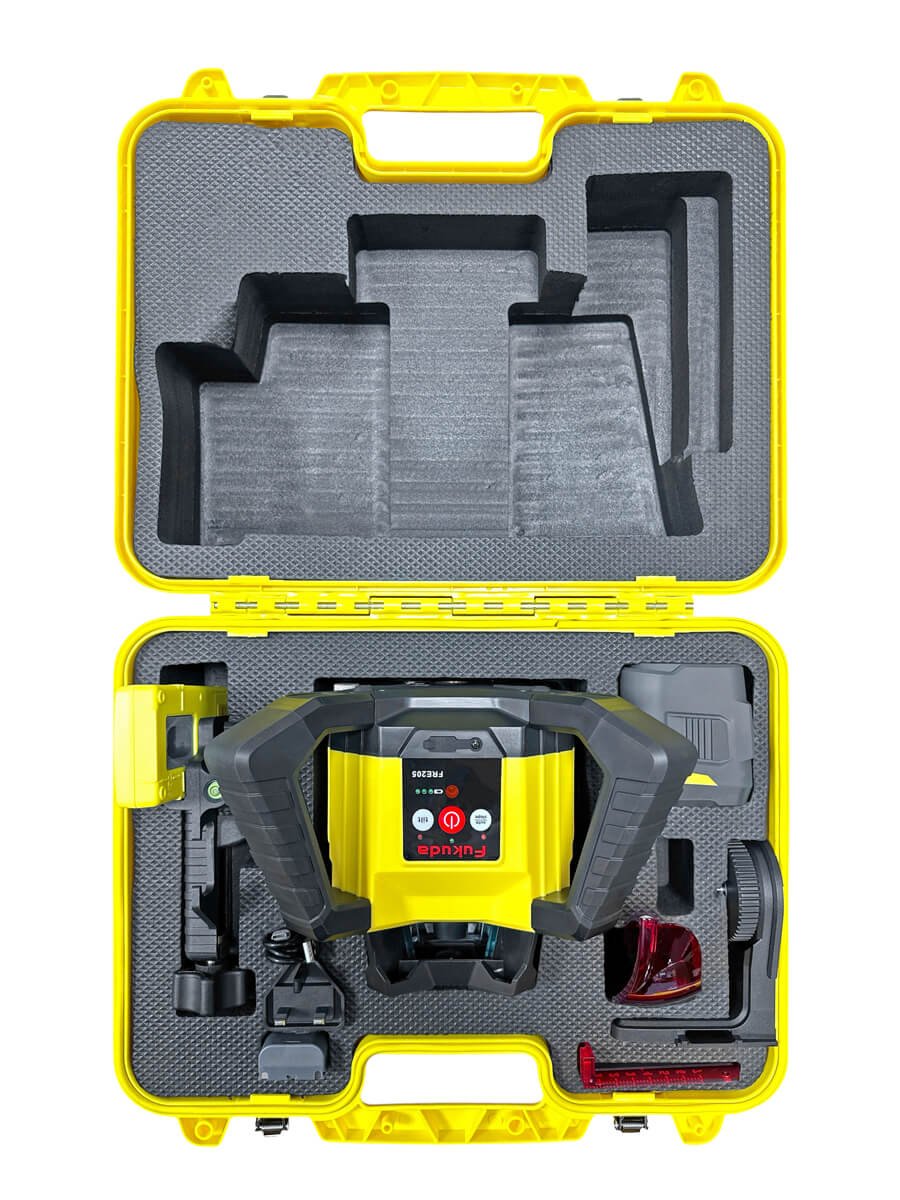

Foam Lined Carry Case

Quick Start Guide

Outet: 2 Year Automatic Warranty
