Overview

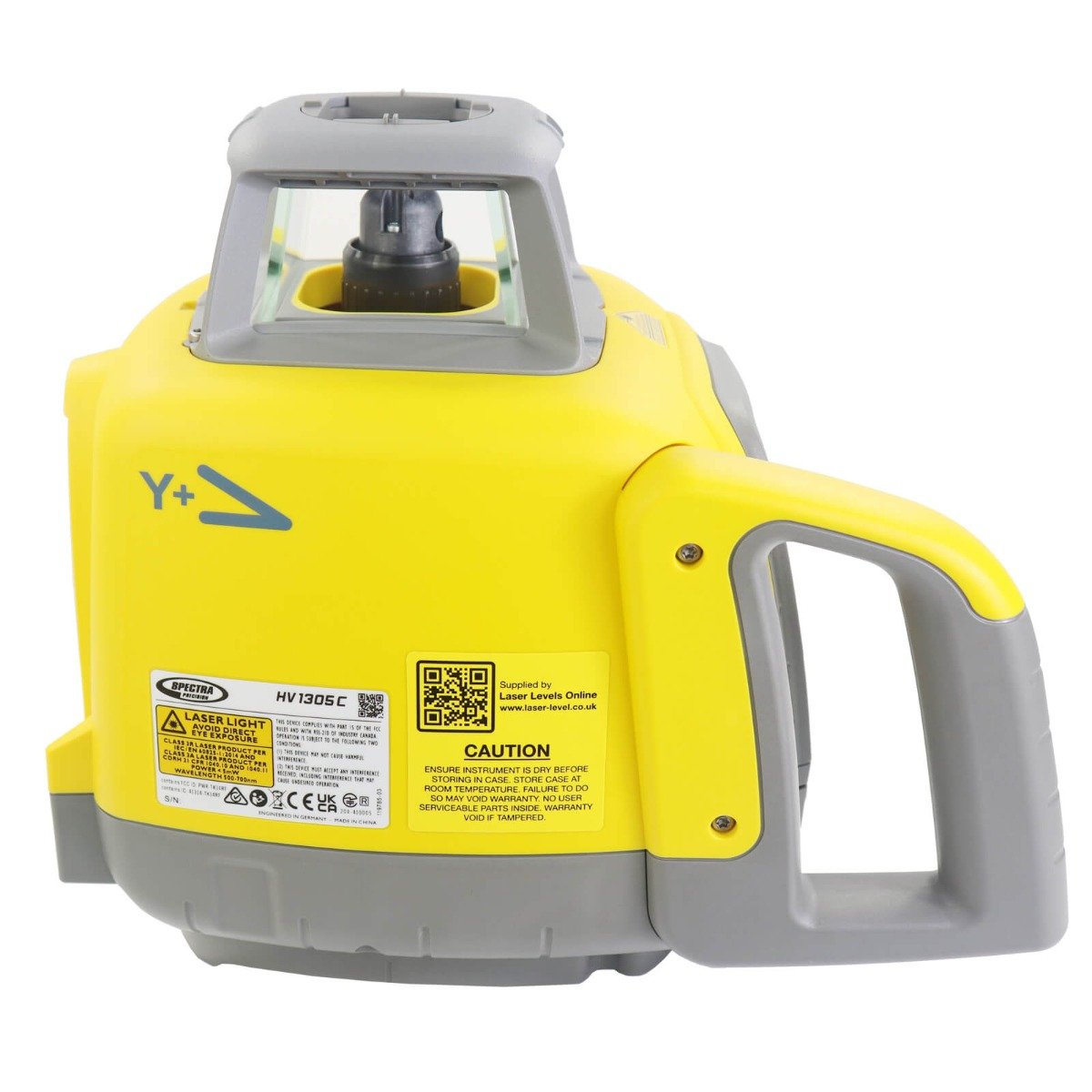

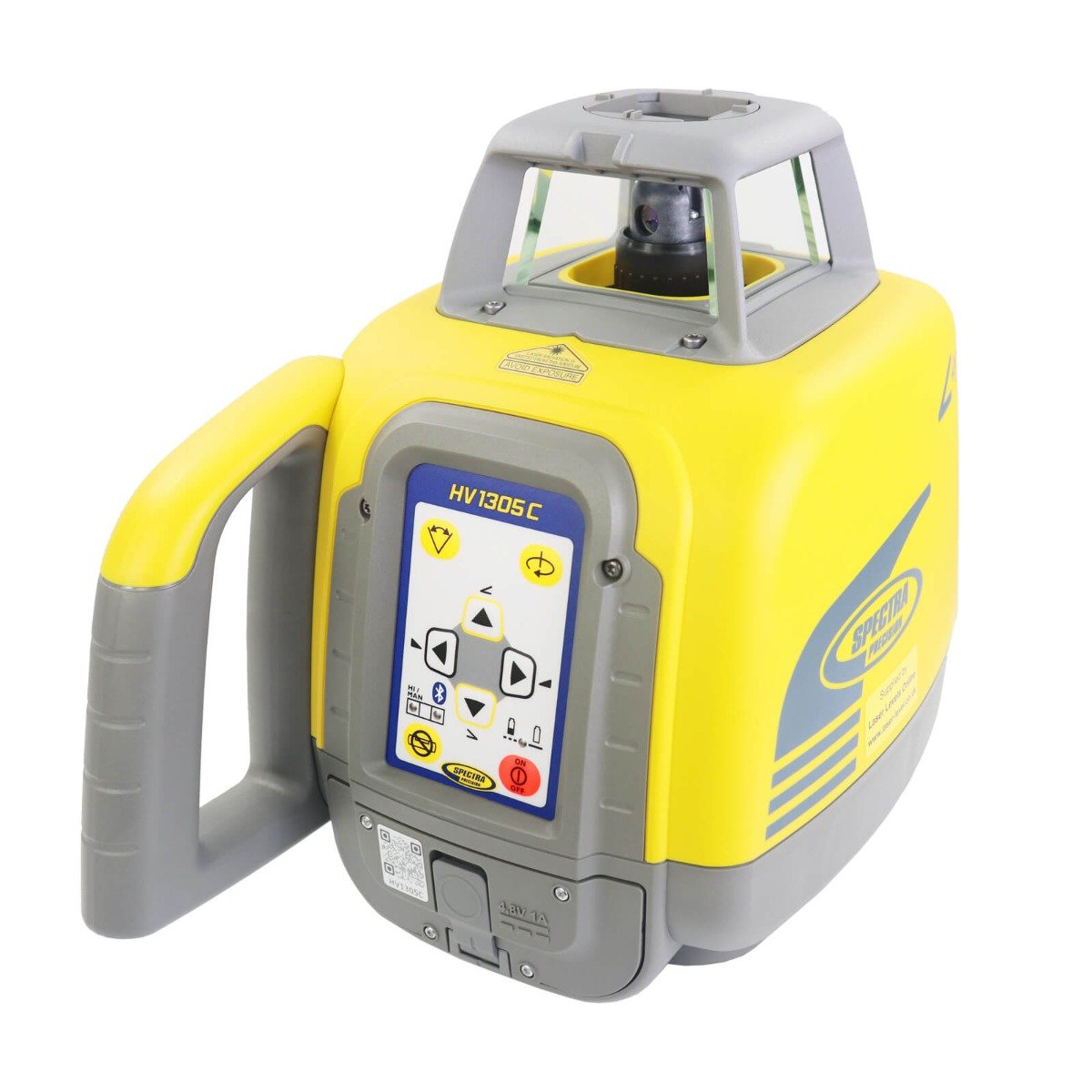

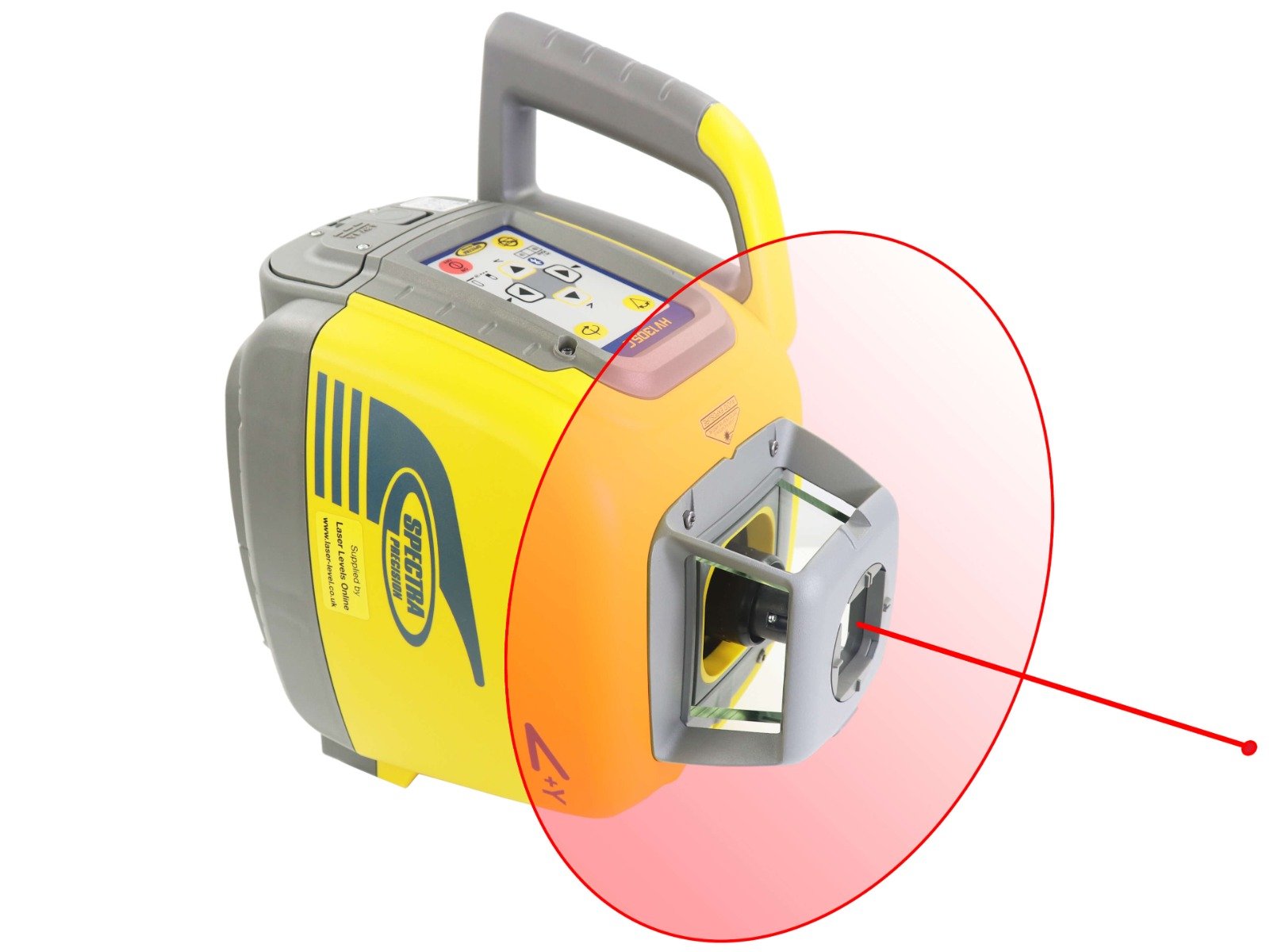

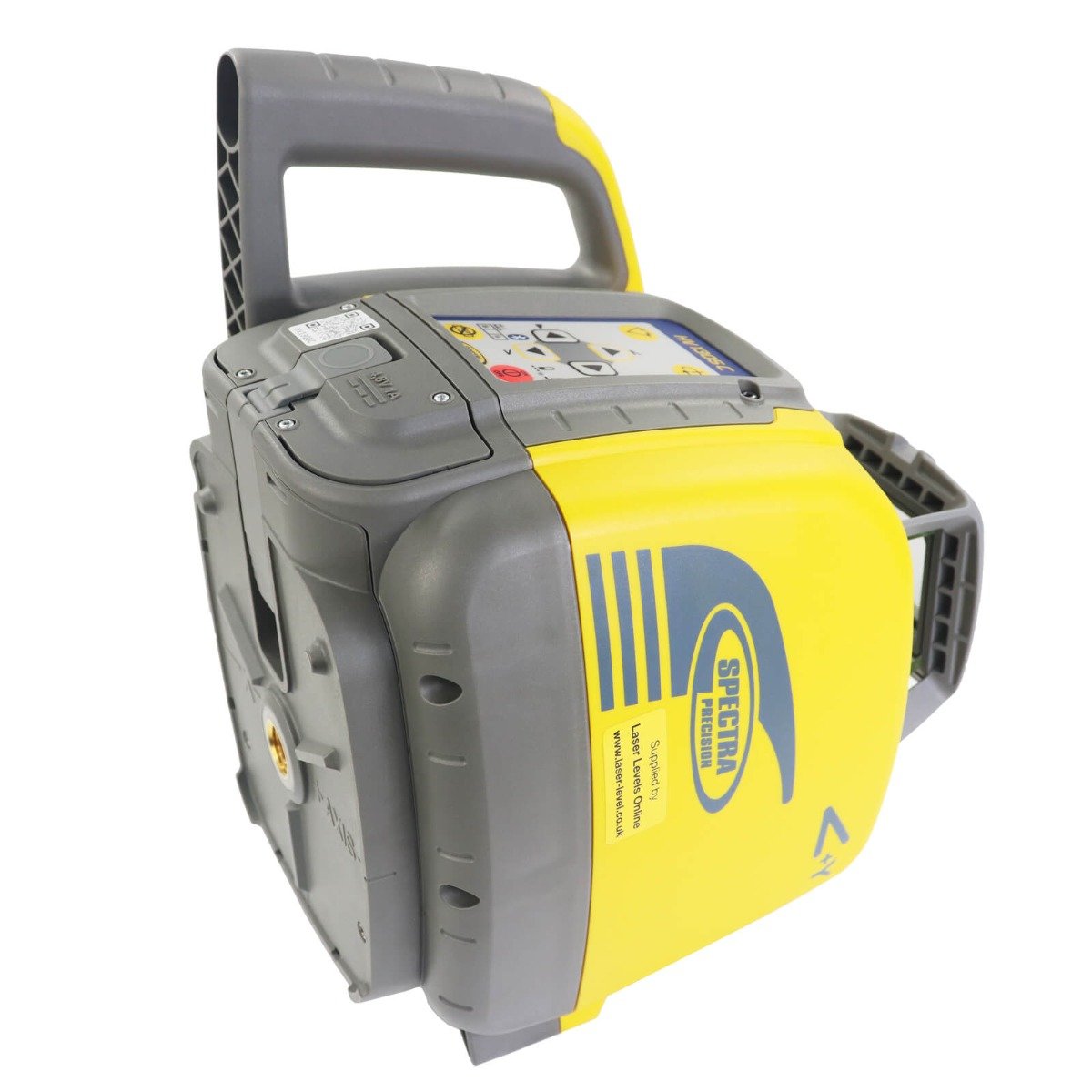

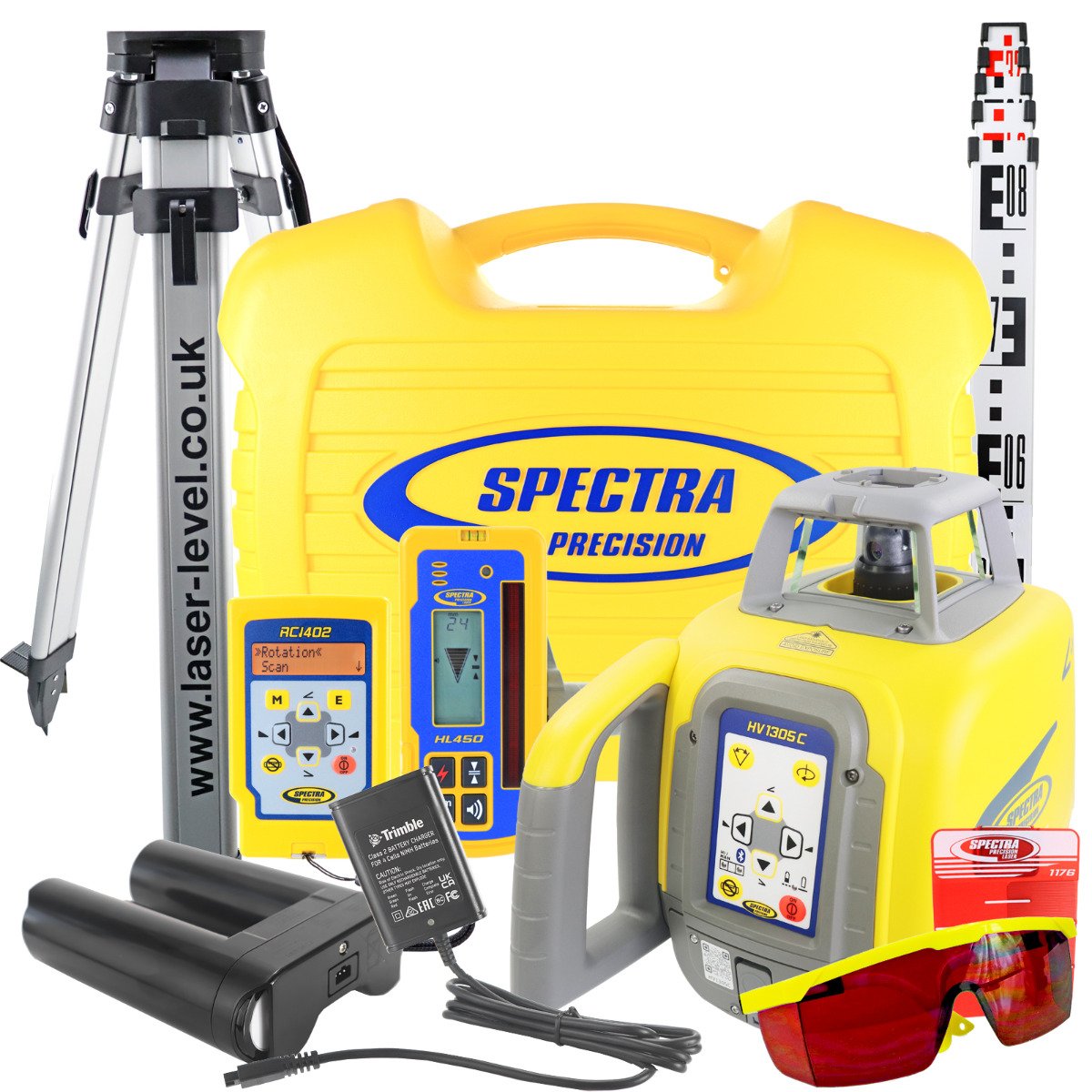

The Spectra Precision® HV1305C Horizontal/Vertical Laser is the most rugged fully self-levelling laser available. Tough enough to handle a wide variety of horizontal, vertical and plumb applications in both interior and exterior projects. A split beam enables plumb point transfer and 90-degree setting-out of your worksite. No need to use the time consuming 3/4/5 triangle method any more.

The HV1305C delivers consistently reliable and accurate performance, enabling you to work faster and smarter. When used with a detector, it will give an outdoor range of 800m diameter (2,600 ft).

The rugged HV1305C laser can withstand drops of up to 1 metre onto concrete and tripod tipovers up to 1.5 metres (5 feet). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.

The HV1305C laser level can be used with a number of Spectra detectors for various applications. Detector choices for the HV1305C include the standard HL450 where direct read and anti-strobe is required and the HL760, for advanced applications (as described below). Or the NEW Spectra CR700 which gives you best of both worlds. A magnetic detector for use with plant equipment and the ability to mount it on your staff and still have a direct read/elevation displayed.

Both the specialist Spectra HL760 and CR700 detectors offer Automatic Grade Match and vertical PlaneLok:

Automatic Grade Matching. A very useful feature for drainage work. You will need either the optional HL760 or CR700 detector together with the RC1402 remote control.

The remote control menu is used to access the Auto Grade Matching feature and to signal the laser level to scan up or down (in its Y-axis) to find the HL760/CR700 detector at its set height. A radio link between the two, enables the laser to be set to the required slope. This is much faster and more accurate than trying to manually set the laser to the required slope.

The PlaneLok function. You will need either the optional HL760 or CR700 detector together with the RC1402 remote control.

This feature is used to lock the laser beam in alignment with the target point - especially useful for general alignment and vertical cladding applications etc.

Included in the HV1305C outlet purchase price is a 2-Year "No Cost - Warranty". (for full details, please see below).

Features

Automatic horizontal and vertical self-levelling

Accuracy 1.5mm @ 30 metres (1/16 inch @ 100 ft)

Working range of 800 metres diameter (2,600 ft) with the HL450 laser detector.

Working range of 1,200 metres diameter (4,000 ft) with the optional HL760 laser detector.

High visibility beam – easily visible even in brightly lit conditions

Split beam – enables plumb point transfer and 90-degree layout

Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings. ie. a Bump Sensor system.

Extremely durable and portable

2 Year Outlet Warranty

Specification

Leveling accuracy: ±1.5mm / 30m

Operating diameter: approx. 800m (2600 feet)

Preset Rotation Speeds: 0, 10, 100, 200, 300 and 600 rpm

Adjustable in 10 rpm increments >100rpm

Pre-selected scan sizes: 5°, 15°, 45° and 90°

Adjustable in 5° increments

Laser type: red diode laser 630 – 643 nm

Laser class : Class 3R, max. 5 mW

Self-leveling range: ±5° (±9%)

Levelling indicators: LED flashes

Radio range (HL760): up to 100m (330 ft)

Power source: 10.000 mAh high capacity NiMH battery pack

Battery life: approx. 45 hours NiMH; or 60 hours alkaline

Operating temp.: -20°C to 50°C

Storage temp.: -20°C to 70°C

Tripod attachments: 5/8 x 11 provision both horizontally and vertically

Dust and waterproof: Yes to IP66

Weight: 3.1kg

Low voltage indication: LED battery indicator

Low voltage disconnection: unit shuts down

Detector features

Choosing the right detector ensures maximum performance from the LL1505C. The kit has an HL450 Detector as standard or can be upgraded to either the HL760 or CR700 for machine control applications.

Detector features

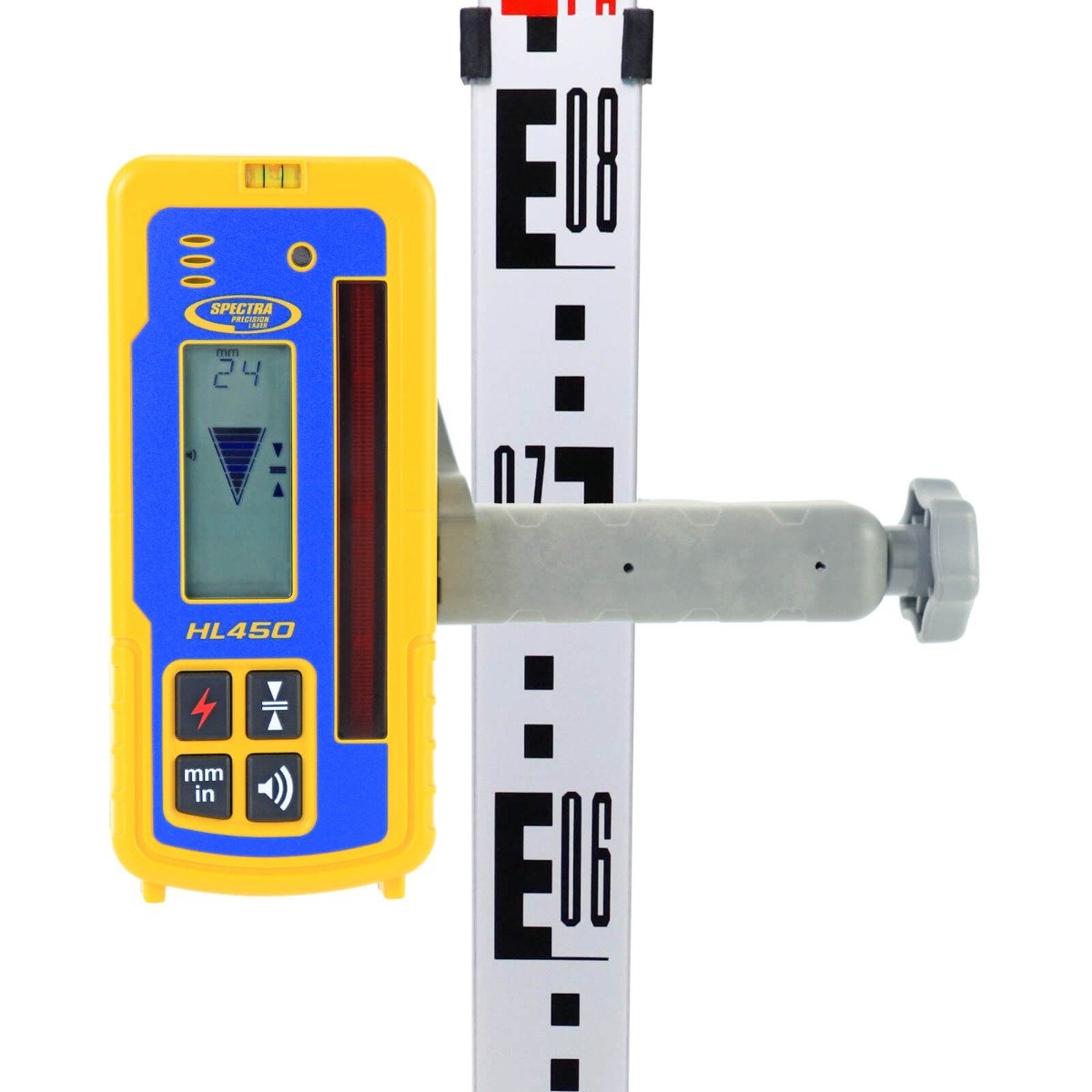

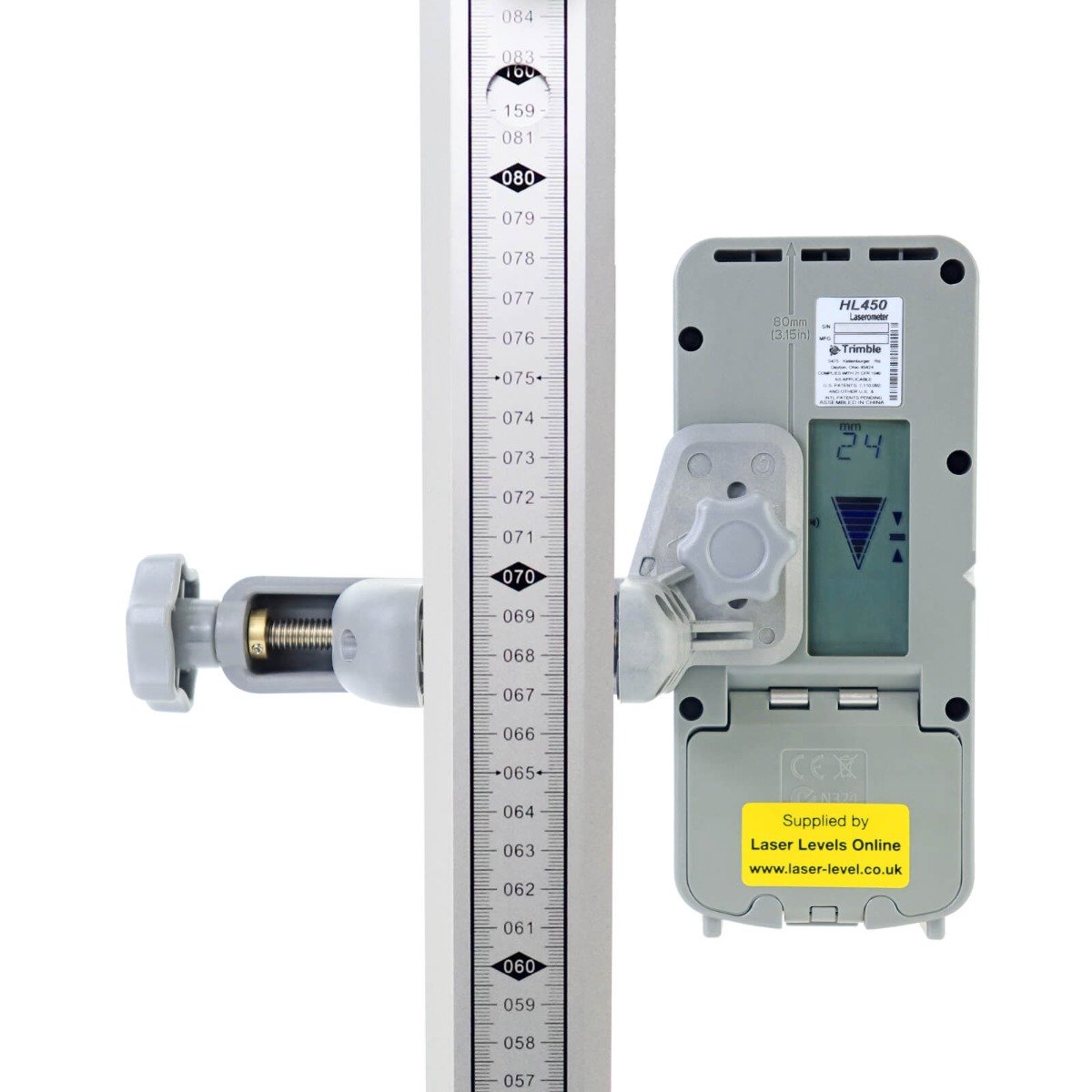

Standard Kit includes HL450 Detector & Bracket:

Digital Readout Units: mm, ft, in, fractions

Reception Height: 102 mm (pick-up window)

Three On-grade Sensitivities: - Fine ~1/16 in (1 mm) - Medium ~1/4 in (5 mm) - Calibration Mode ~1/64 in (0.1 mm)

Battery Life (2 x AA): 70+ hrs

Automatic Shut-off: 30 minutes

Operating Temp.: -20°C to 50°C

Dust & Waterproof: Yes IP67

Weight without Clamp: 0.37 kg

Outlet Warranty: 2 Years

Upgrade the kit to have the HL760 Detector & Bracket:

The Spectra Precision® Laser HL760 Laser Detector, a highly versatile laser receiver for basic and advanced leveling and aligning applications, is designed for general, concrete and site preparation contractors.

The HL760 is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating red beam laser level.

It features a digital readout of elevation that provides a numeric display of +/-50mm to 0.5mm resolution. The readout is displayed on the large front and rear LCD's and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity.

Selectable units of measurement can be displayed to meet your specific application - mm, cm, ft, in or fractional inches.

A 127mm long pick-up window, more than double the industry standard, allows quick acquisition of the laser beam.

An anti-strobe sensor prevents false readings from any adjacent site strobe lights.

This detector is designed to survive tough construction site conditions; it is totally waterproof (IP67) and can withstand a drop of 3 metres (10 feet) onto concrete.

The HL760 comes with a 3-year "No Excuses" warranty. It can be used as either a hand-held or staff mounted detector for a wide range of applications.

Features:

Reduces rework by allowing remote monitoring.

Increases reliability, accuracy and durability.

No need to go "on-grade" to measure: saves considerable setting-out time.

Digital readout of elevation - not only will high or low arrows be displayed, but the exact distance from grade will be numerically displayed, which eliminates the need to get "on-grade" to make measurements.

Large 127mm reception height acquires the beam quickly and makes it easy to stay in the beam. Anti-strobe sensor stops construction strobe lights from setting off the detector and makes it easier to identify true laser beam signals.

Simultaneous elevation LED's signal in low light levels and over a longer range for easier reading in poor light conditions.

A new CAPTURE function remotely captures and retains a measurement, when the display is difficult to see.

Multiple deadband sensitivity settings, five in all, allows adaptation to meet all your jobsite requirements.

Dust and weatherproof housing withstands a drop of up to 3 m (10 ft) onto concrete for reduced downtime.

Two clamp positions for cut/fill or excavation. Excavation mode puts more reception height and elevation information above grade for higher utilization in digging and staking applications.

Technical specification

Accuracy:

+/- 1.5mm @ 30 metres, max. operating diameter 800m (400m either side of the instrument).

An accuracy of +/- 1.5mm @ 30 metres is equivalent to 0.05 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.

Dual Grade facility:

Dual axis X and Y axis up to +/-10% (1 in 10)

Both X & Y axis can be set to give a maximum fall of up to 1m at 10m distance away. (ie. 1 in 10 & +/-10% grade)

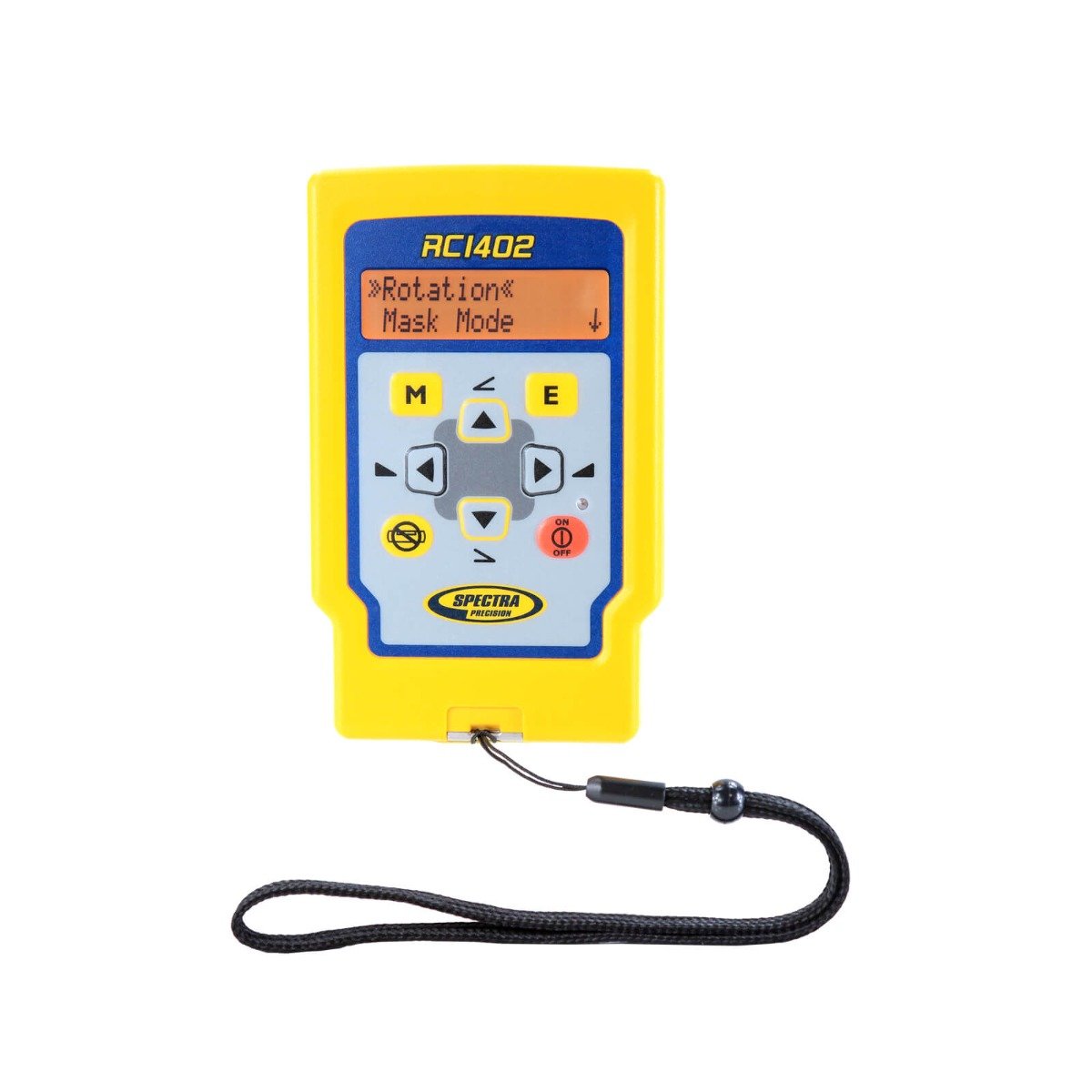

Users can set single or dual grades from the HV1305C's keypad or more conveniently, via the included RC1402 radio remote control.

Example usage

Indoor applications:

General indoor work

Suspended ceiling installation

Drywall installation

Squaring / layout

Indoor finishing work

Outdoor applications:

Residential construction

Small & medium commercial construction

Site levelling / foundations

Squaring / layout

Vertical alignment

Please note: For all outdoor applications, you will need to use the included Laser Detector, as you will not be able to see the laser beam with the naked eye.

Manufacturers data

Spectra 2 Year - Outlet Warranty

This Outlet HV1305C Laser Level is covered by a "2-Year - No Cost" Warranty which covers all defects due to material and workmanship. Spectra Precision Laser products with this warranty that have failed will be repaired FREE OF CHARGE for two years from the date of purchase.

Please note: The Detector, Tripod & Staff are not covered by the 2 Year Warranty. Please see individual product listing for their respective warranty period.

Also included in the kit

The Spectra HV1305C Premium Kit also includes the following accessories:

4m Telescopic Levelling Staff (Model: TLS4S)

(Colours / Brand may vary)

4m, 5-section, Telescopic Levelling Staff.

Five robust aluminium sections with abrasion proof scale.

Closed length height 970mm, extending to maximum height of 4m.

Automatic locking buttons when extended.

Millimetre scale on back and E-graduations (1cm) markings on front

Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.

Red / Black coded front sections.

Accepts all Laser detector mounting brackets.

Removable, rear-mounted circular Bubble Level.

Carry sleeve.

Height: 0.97m closed length to extended max 4m.

Weight 1.15kg.

Surveying Tripod (Model: S-LAT)

(Colours / Brand may vary and may have laser-level.co.uk branding on tripod leg)

Maximum 1.5m height.

Robust aluminium tripod.

Extending legs with quick-release, toggle clamp adjustment.

Flat top, mounting head.

Head size 130mm

5/8 inch x 11 thread.

Closed length 0.925m

Max. Opened height 1.5m approx.

Weight: 3.4kg

Carry strap

Do you need ShockWatch® adding to your Laser?

The optional ShockWatch impact indicator clip is a tamperproof, mechanically activated device that turns bright red to indicate mishandling or after the Laser has received an excessive impact. Designed to mount directly onto the Laser Level, the clip is compact and economical and provides 360° impact detection alerting the user to check the Lasers Calibration before use. If this option is selected, our Technicians will fit your Laser with a Shockwatch prior to dispatch, giving you and your users extra piece of mind on the job site.

For further details of ShockWatch®, please Click Here.

Purchase options

Spectra HL760 Detector: A specialist laser detector. Using radio communication between the HL760 detector and your HV1305C laser provides automatic Grade Matching and PlaneLok.

Please Note: If you upgrade to the HL760, CR700 detector, the default HL450 detector will be removed from the kit.

Need to mount a Detector on Plant equipment?

The HV1305C can be used for machine control by using a magnetic CR700 Detector, which can be purchased as an "upgrade" or as an optional extra.

For further details of the Spectra CR700, please Click Here.

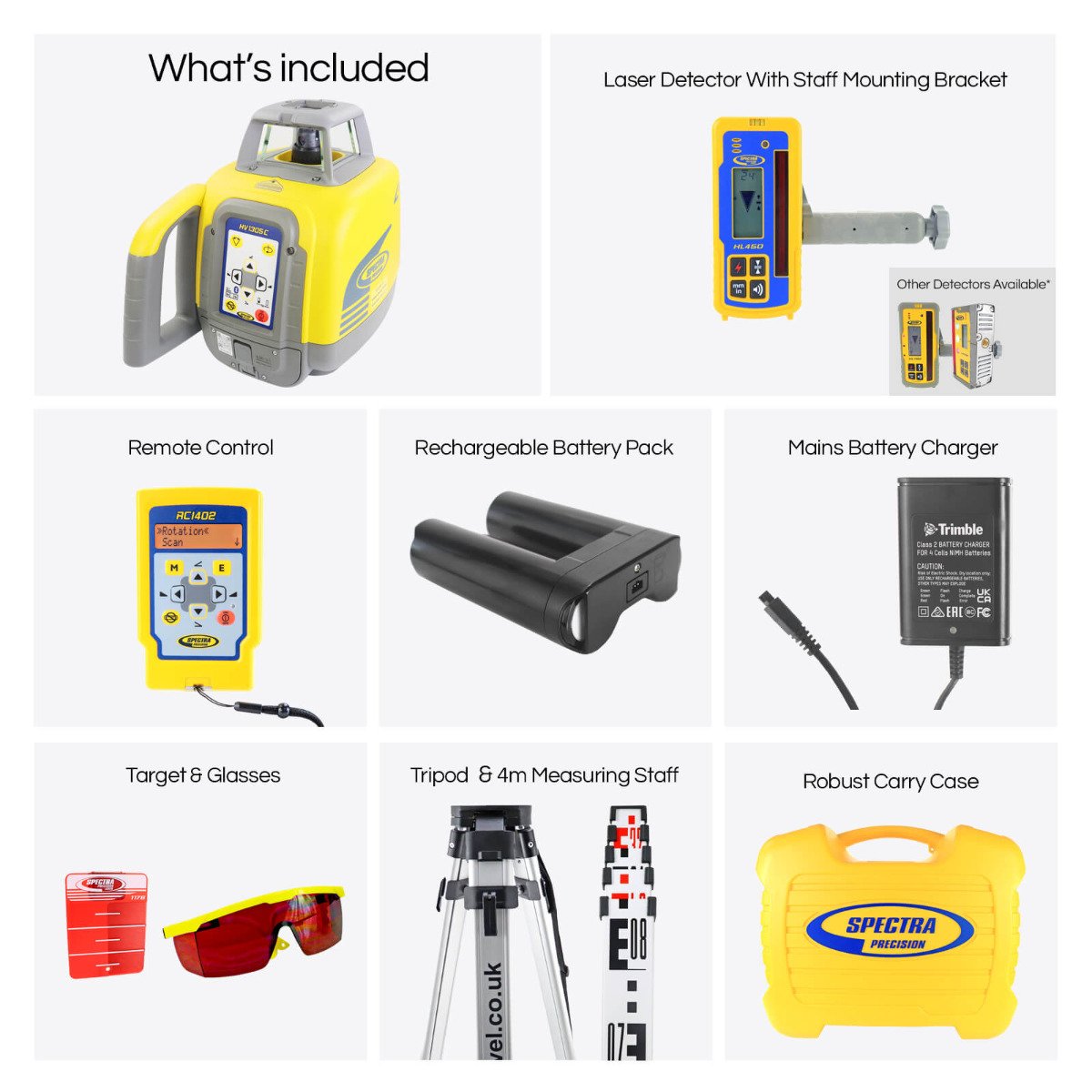

Kit comprises of:

Spectra HV1305C Rotary Laser Level (checked and pre-calibrated)

Spectra HL450 Laser Detector With Staff Mounting Bracket & Batteries

Option to upgrade to HL760 or CR700 Laser Detector

Spectra RC1402 Radio Remote Control

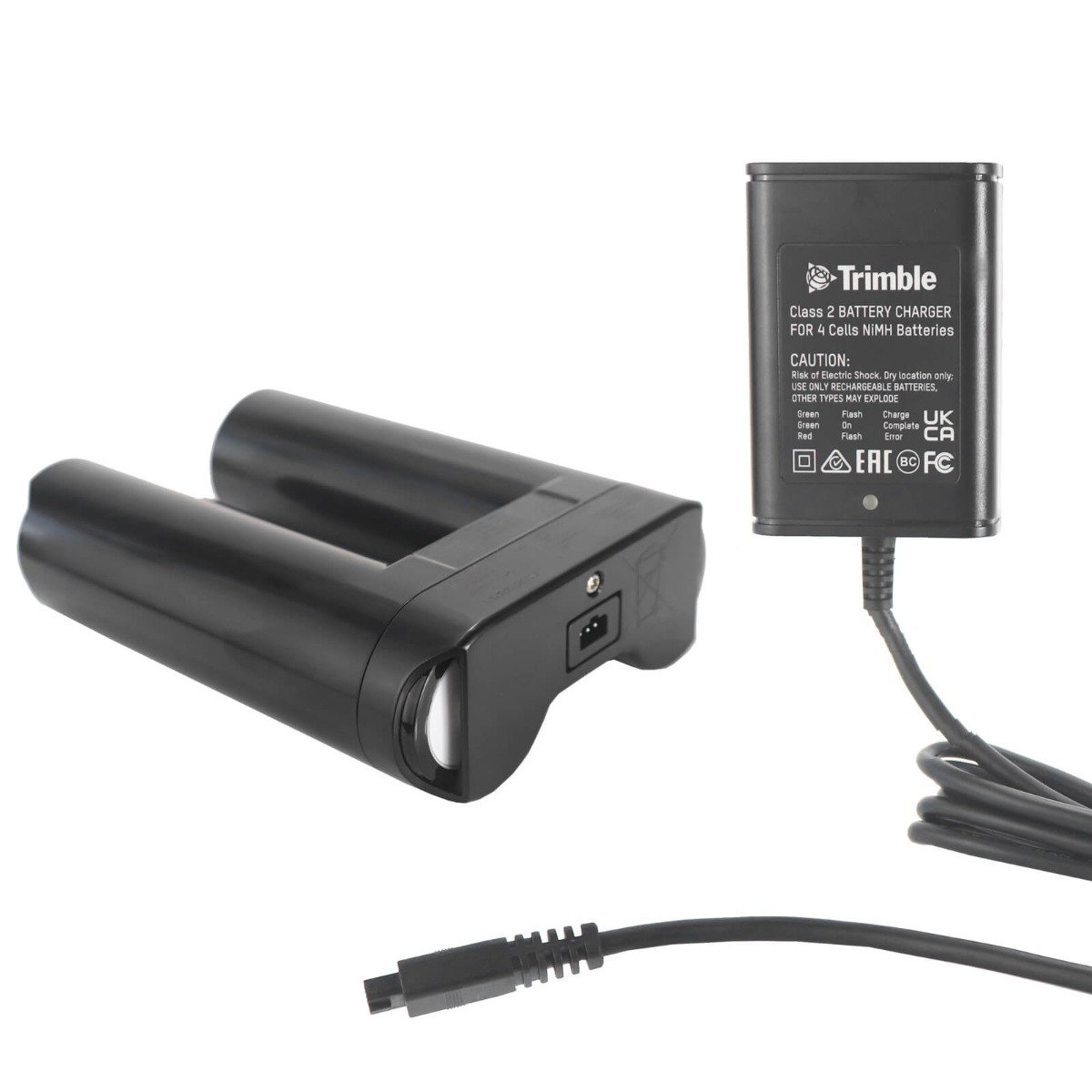

Rechargeable Battery Pack

Mains Battery Charger

Red Magnetic Target Plate

Red Laser Enhancement Glasses

Surveying Tripod

4m Measuring Staff, type TLS4S

Robust Carry Case

Instruction & Safety Manuals

Outet: 2 Year Automatic Warranty
