About this Product

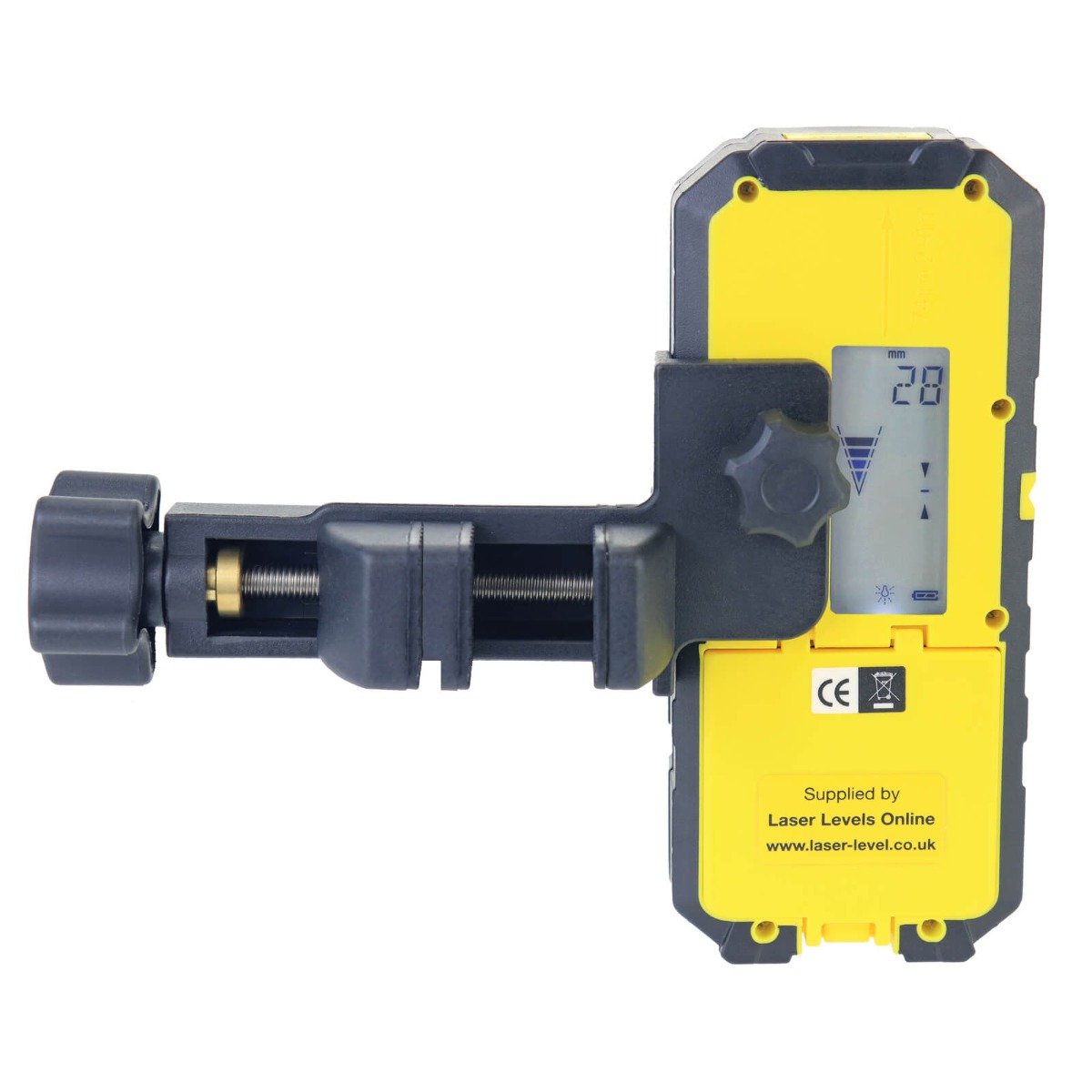

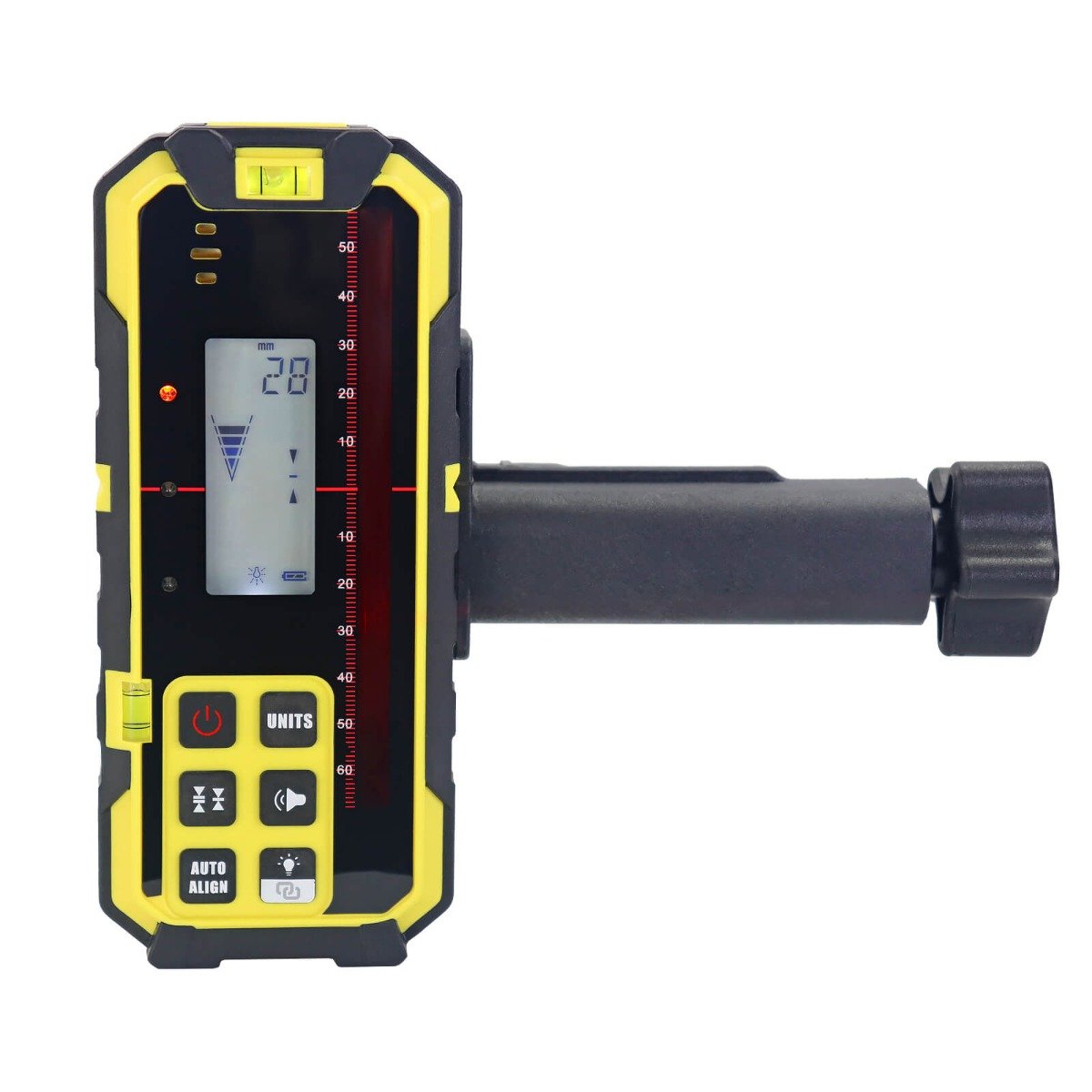

Fukuda FRD1000R Laser Detector with Digital Readout (mm / inch) & Auto-alignment
A premium Fukuda detector, with +/-45mm direct read facility (Digital elevation readout)
Fukuda Lasers have developed a premium detector for the Professional Tradesperson which is easy-to-use and accurate. It is ideal for use with any brand of rotating, visible RED beam laser level.
The FRD1000R Laser Detector is a highly versatile, well-featured laser detector for both basic and advanced levelling and aligning applications; designed for general, concrete and site preparation contractors.
It features a digital readout of elevation that provides a numeric display of +/-45mm to 1mm resolution. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. The readout is displayed on large front and rear LCD's, showing exactly how far the elevation is from on-grade. A display back-light assists readings in low ambient lighting.
Selectable units of measurement can be displayed to meet your specific application: in mm, cm or inches. A 125mm long red pick-up window, more than double the industry standard, allows quick acquisition of the laser beam. Readings are shown in three ways: via the back and front display, coloured LED indication and by audible sound, selectable high/low/off.
Auto-alignment (auto tracking):
When radio paired to the FRE-203XR 2nd Generation (titanium grey top) laser level, it enables Users to select either grade or plane auto-align. Grade auto-alignment is where a detector is moved from one position to another and the laser beam scans up/down to find it, then locks on. Plane auto-alignment is for example, when a detector is moved to the left or right and again the laser beam scans to find it, then locks on. Both invaluable features; more commonly available on more expensive laser levels.
This FRD1000R detector is designed to survive tough construction site conditions, being water and dustproof to IP55.
It can be used as either a hand-held or staff-mounted detector for a very wide range of construction applications.
Features
Digital readout of elevation to +/-45mm, so not only will high or low arrows be displayed, but the exact distance from grade will also be numerically displayed. This eliminates the need to get exactly "on-grade" to make measurements, thus speeding up setting-out.
A large 125mm reception height acquires the beam quickly and makes it easy to stay in the beam.
Grade auto-alignment & Plane auto-alignment when paired with 2nd Gen FRE-203XR
Simultaneous elevation LED's signal in low light levels and over a longer range, for easier reading in poor light conditions.
Multiple dead-band sensitivity settings: three in all (1mm, 5mm, 10mm), allows adaptation to meet all your job site requirements.
Audible sounder: selectable high /low / off.
Dust and weatherproof housing to IP55.
Continuous usage, 40 hours battery life with auto switch-off facility.
Example usage
Setting and checking jobsite elevation and depth for -
Cut and fills
General grading
Foundations
Forms and footings
Excavations
Comprises of
Fukuda FRD1000R Detector
4 x AA Alkaline Batteries
Staff Mounting Bracket
Quick Start Guide
Fukuda 1 Year Outlet Warranty
