Spectra HV1305GC Ultra Kit - Outlet

Overview

The multi-purpose, auto levelling GREEN beam Spectra Precision® HV1305GC Horizontal/Vertical Laser offers exceptional versatility and superior green beam visibility, for increased productivity at a great value.

The HV1305GC is capable of handling a wide variety of horizontal, vertical and plumb applications optimized for indoor projects. A split beam enables plumb point transfer and 90-degree layout. Even in brightly lit indoor conditions, the high visibility green beam of the HV1305GC delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

Extremely rugged, the laser can withstand drops of up to 1 metre (3 feet) onto concrete and tripod tip-overs up to 1.5 metre (5 feet), resulting in reduced downtime and lower repair costs. Even in the toughest jobsite conditions, the laser delivers reliable, accurate performance to increase overall productivity and cost-savings.

The HV1305GC features a simple keypad with arrow buttons, making it easy to use. By utilizing the radio communication between HV1305GC and the standard HL760U detector, a reference for a sloped ceiling or line points for drywall layout can be quickly and easily established. The HL760U detector is unique as it will work with any green, infra-red or red beam laser.

This specialist Spectra HL760U detector also offers Automatic Grade Match and vertical PlaneLok:

Automatic Grade Matching. A very useful feature for sloped ceilings or outdoor drainage work. You will need both the HL760U detector and the RC1402 remote control.

The remote control menu is used to access the Auto Grade Matching feature and to signal the laser level to scan up or down (in its Y-axis) to find the HL760U detector at its set height. A radio link between the two, enables the laser to be set to the required slope. This is much faster and more accurate than trying to manually set the laser to the required slope.

The PlaneLok function. You will need both the HL760U detector and the RC1402 remote control.

This feature is used to lock the laser beam in alignment with the target point - especially useful for general alignment and vertical cladding applications etc.

Features

Automatic horizontal and vertical self-levelling

Accuracy 1.5mm @ 30 metres

Working visible range of 75 metres radius with the naked eye (*subject to ambient lighting conditions)

Working range of 1,200 metres diameter (4,000 ft) with the laser detector

High visibility beam – easily visible even in brightly lit conditions

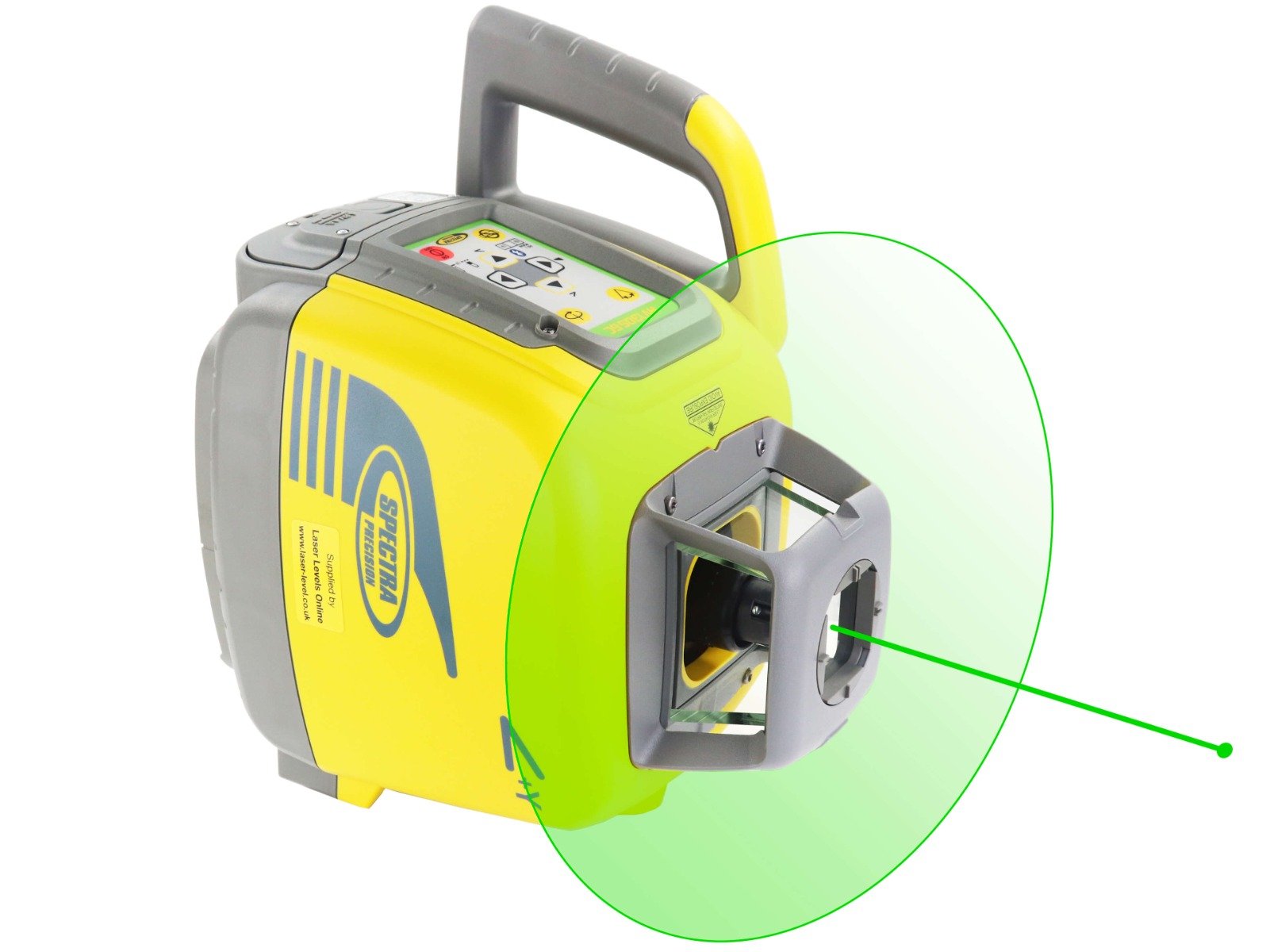

Split beam – enables plumb point transfer and 90-degree layout

Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings. ie. a "Bump Sensor" system

Long range RC1402 Radio remote control

Spectra HL760U - Exterior detector with radio communication facility providing Grade Matching and PlaneLok

Extremely durable and portable

Outet: 2 Year Automatic Warranty

Specification

Levelling accuracy: ±1.5mm @ 30m

Preset Rotation Speeds: 0, 10, 100, 200, 300 and 600 rpm

Adjustable in 10 rpm increments >100rpm

Pre-selected scan sizes: 5°, 15°, 45° and 90°

Adjustable in 5° increments

Laser type: green diode laser 510 – 530 nm

Laser class : Class 3A/3R, max. 5 mW

Self-leveling range: ± 5° (± 8.7%)

Leveling indicators: LED flashes

Radio range (HL760U): up to 100m

Power source: 10.000 mAh high capacity NiMH battery pack

Battery life: approx. 30 hours NiMH; or 25 hours alkaline

Operating temp.: -20°C to +50°C

Storage temp.: -25°C to +70°C

Tripod attachments: 5/8 x 11 provision both horizontally and vertically

Dust and waterproof: Yes, to IP66

Weight: 3.49 kg (incl. Battery pack)

Low voltage indication: LED battery indicator

Low voltage disconnection: unit shuts down

Dual Grade facility:

Both X & Y axis can be set to give a maximum fall of up to 1m at 10m distance away. (ie. 1 in 10 & 10% grade)

Note: Users can set single or dual slopes from the HV1305GC's keypad or more conveniently, via the RC1402 radio remote control.

Summary of features

Complete indoor system in a case - carrying case securely holds all components, wall mount, green target & glasses etc

Easy to transport, easy to carry, easy to store

Energy-efficient design offers long battery life

Highly durable construction enables the HV1305GC to survive a drop up to 1 metres (3 feet) onto concrete

Radio remote control offers access to all laser functions throughout the jobsite.

Technical specification

Accuracy:

+/- 1.5mm @ 30 metres, max. operating diameter 800m (400m either side of the instrument) using the Detector.

An accuracy of +/- 1.5mm @ 30 metres is equivalent to 0.05 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.

Dual Grade facility:

Dual axis X and Y axis up to +/-10% (1 in 10)

Both X & Y axis can be set to give a maximum fall of up to 1m at 10m distance away. (ie. 1 in 10 & +/-10% grade)

Users can set single or dual grades from the HV1305GC's keypad or more conveniently, via the included RC1402 radio remote control.

Example usage

Indoor applications:

Light to medium commercial and residential construction

Installation of ceilings and raised floors

Suspended ceiling installation

Sloped ceiling installation

Drywall installation

Levelling and aligning of indoor walls

Squaring / layout

Indoor finishing work

Vertical alignment / Plumb setting

Outdoor applications (Using Laser Detector)

Residential construction

Small & medium commercial construction

Site levelling / foundations

Squaring / layout

Vertical alignment

Important note: For all outdoor applications, you will still need to use a Laser Detector.

The HV1305GC is a very bright, green beam indoor laser but you will not be able to see its laser beam outdoors (with the naked eye) in the majority of daylight conditions.

Also included in the kit

The Spectra HV1305GC Ultra Kit also includes the following accessories:

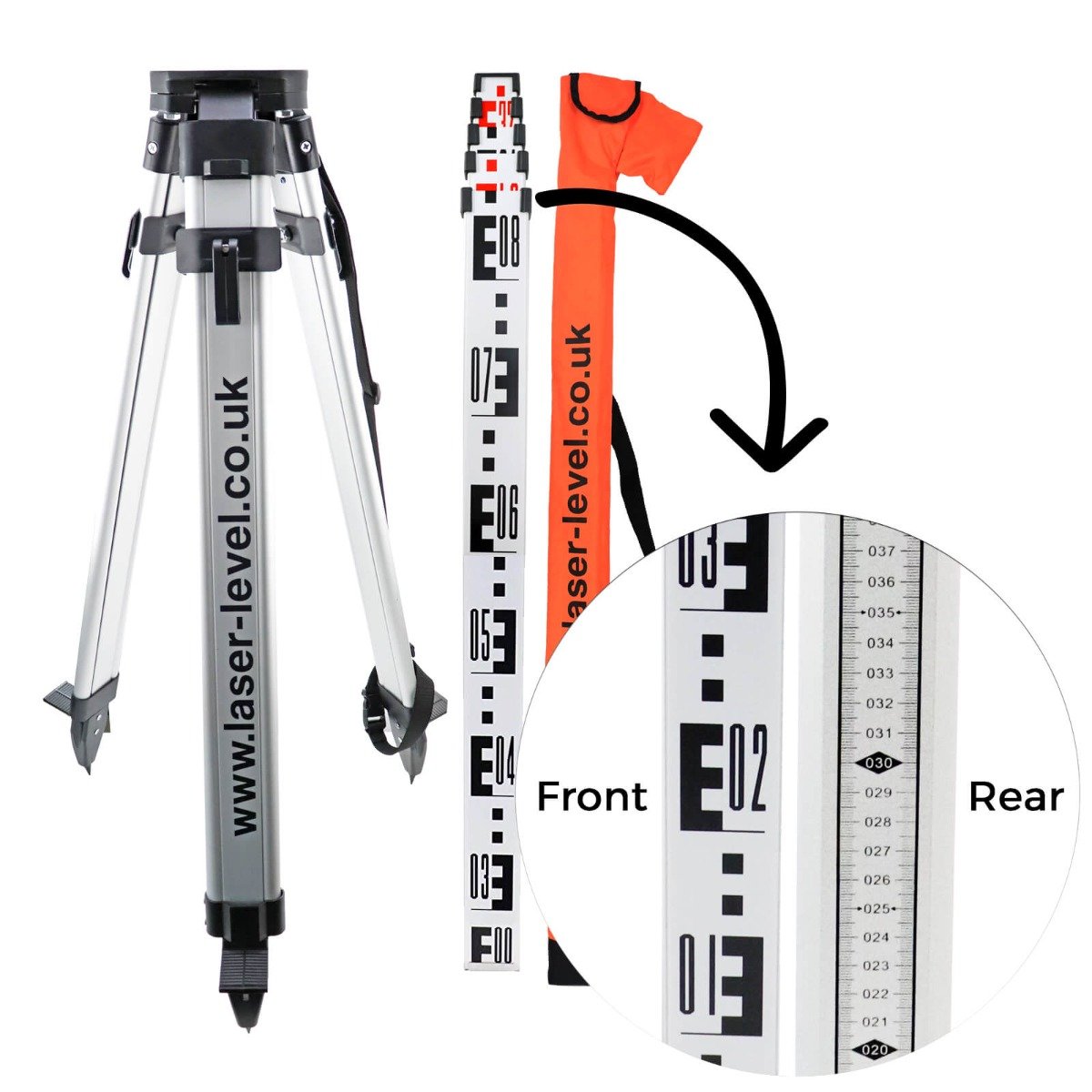

4m Telescopic Levelling Staff (Model: TLS4S)

(Colours / Brand may vary)

4m, 5-section, Telescopic Levelling Staff.

Five robust aluminium sections with abrasion proof scale.

Closed length height 970mm, extending to maximum height of 4m.

Automatic locking buttons when extended.

Millimetre scale on back and E-graduations (1cm) markings on front

Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.

Red / Black coded front sections.

Accepts all Laser detector mounting brackets.

Removable, rear-mounted circular Bubble Level.

Carry sleeve.

Height: 0.97m closed length to extended max 4m.

Weight 1.15kg.

Surveying Tripod (Model: S-LAT)

(Colours / Brand may vary and may have laser-level.co.uk branding on tripod leg)

Maximum 1.5m height.

Robust aluminium tripod.

Extending legs with quick-release, toggle clamp adjustment.

Flat top, mounting head.

Head size 130mm

5/8 inch x 11 thread.

Closed length 0.925m

Max. Opened height 1.5m approx.

Weight: 3.4kg

Carry strap

Do you need ShockWatch® adding to your Laser?

The optional ShockWatch impact indicator clip is a tamperproof, mechanically activated device that turns bright red to indicate mishandling or after the Laser has received an excessive impact. Designed to mount directly onto the Laser Level, the clip is compact and economical and provides 360° impact detection alerting the user to check the Lasers Calibration before use. If this option is selected, our Technicians will fit your Laser with a Shockwatch prior to dispatch, giving you and your users extra piece of mind on the job site.

For further details of ShockWatch®, please Click Here.

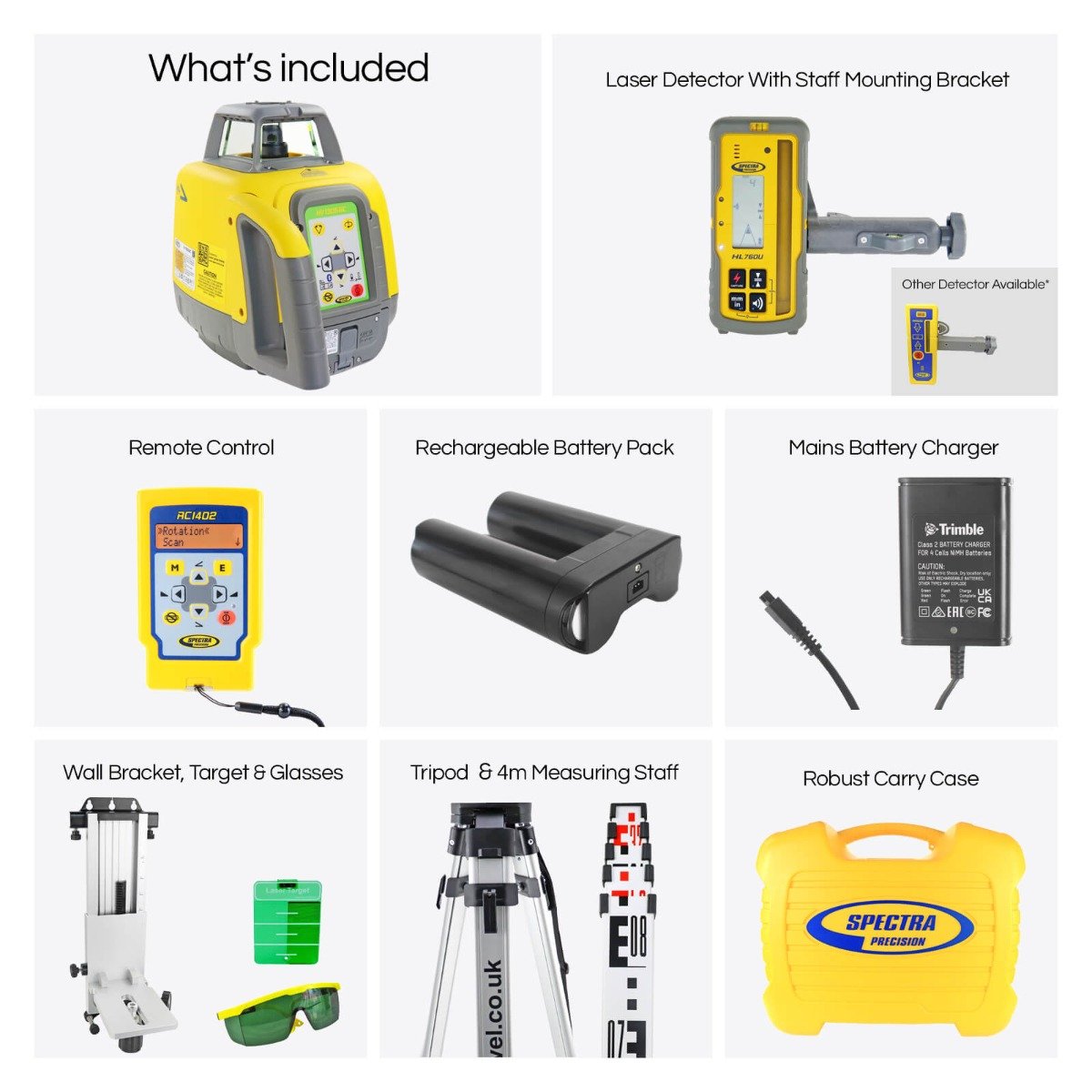

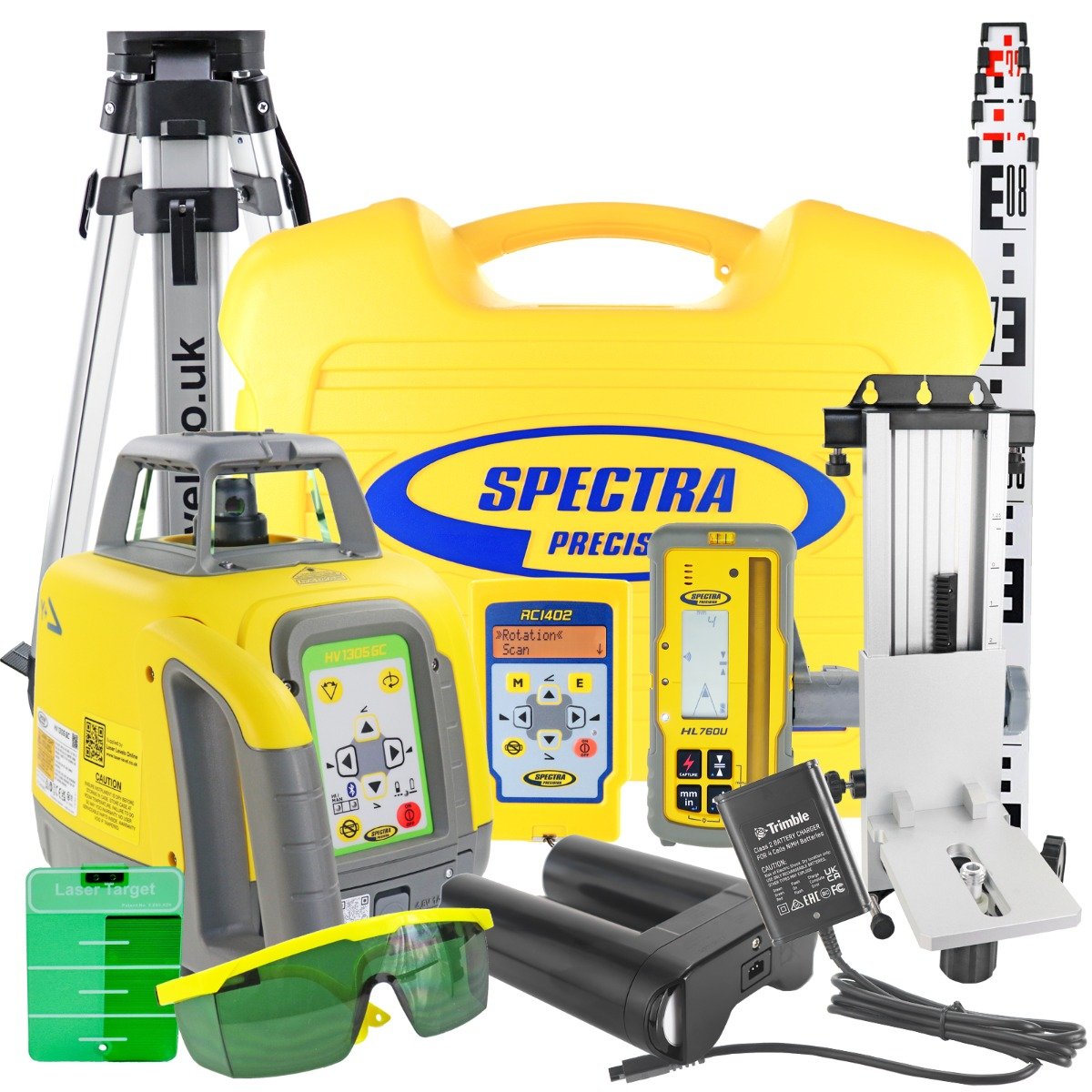

Kit comprises of

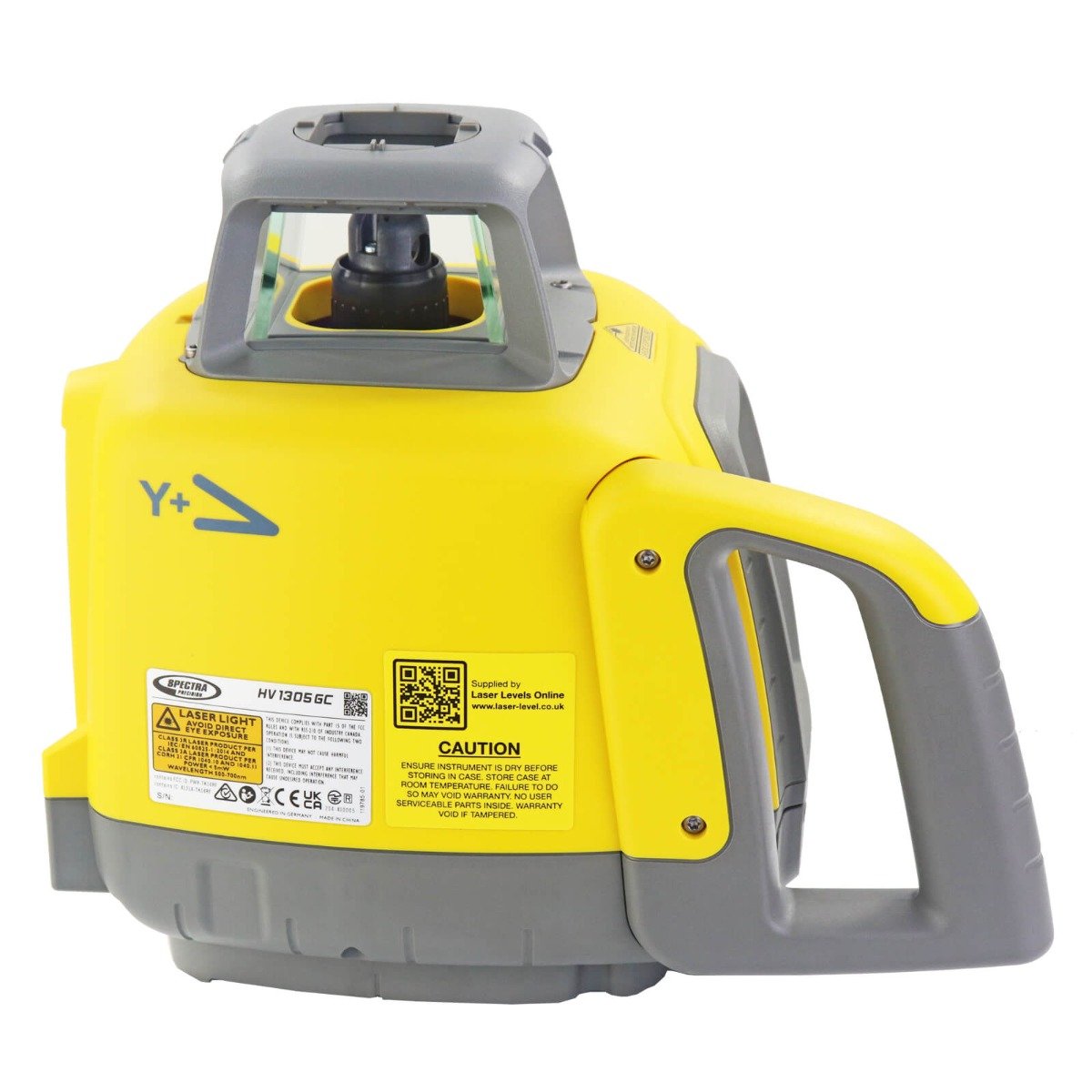

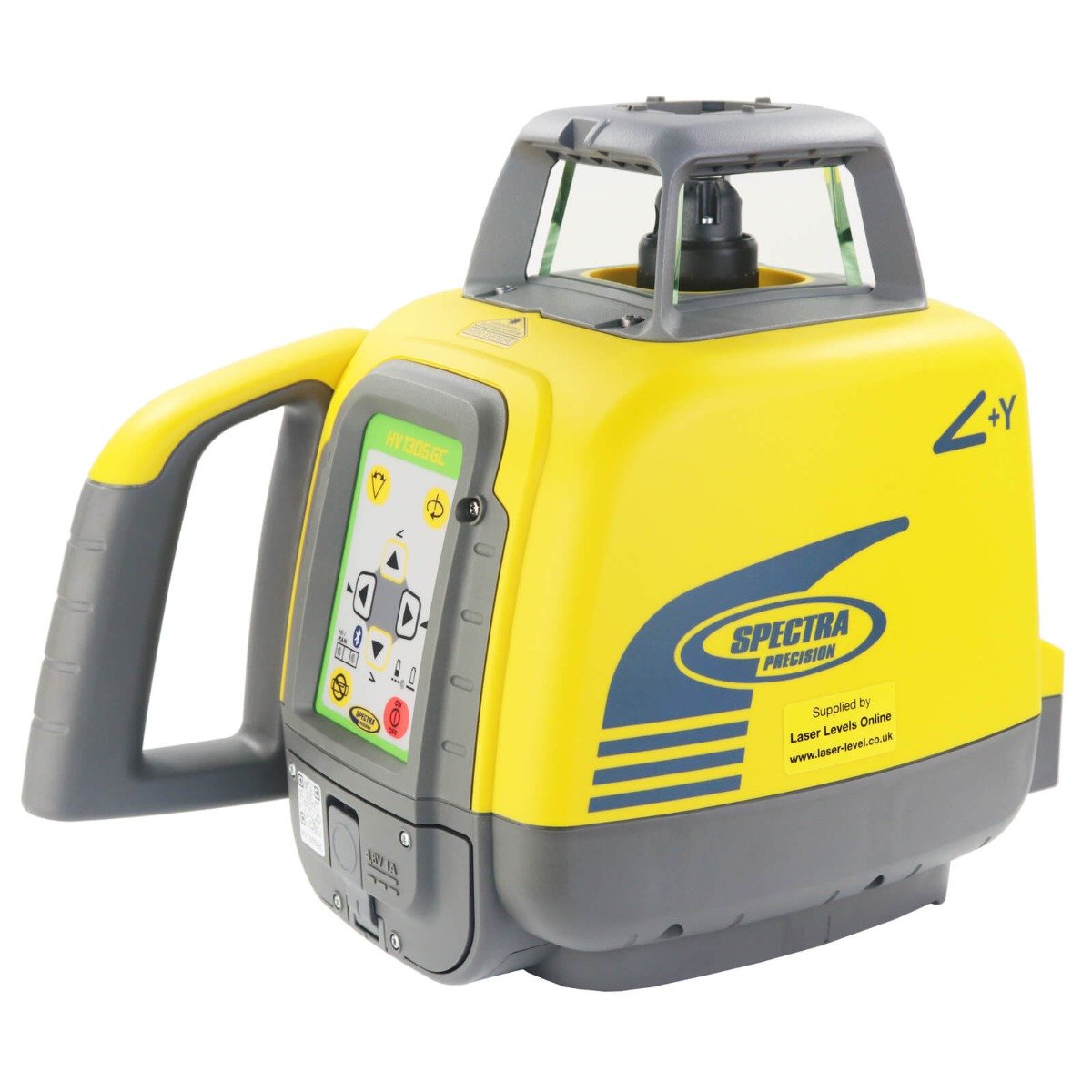

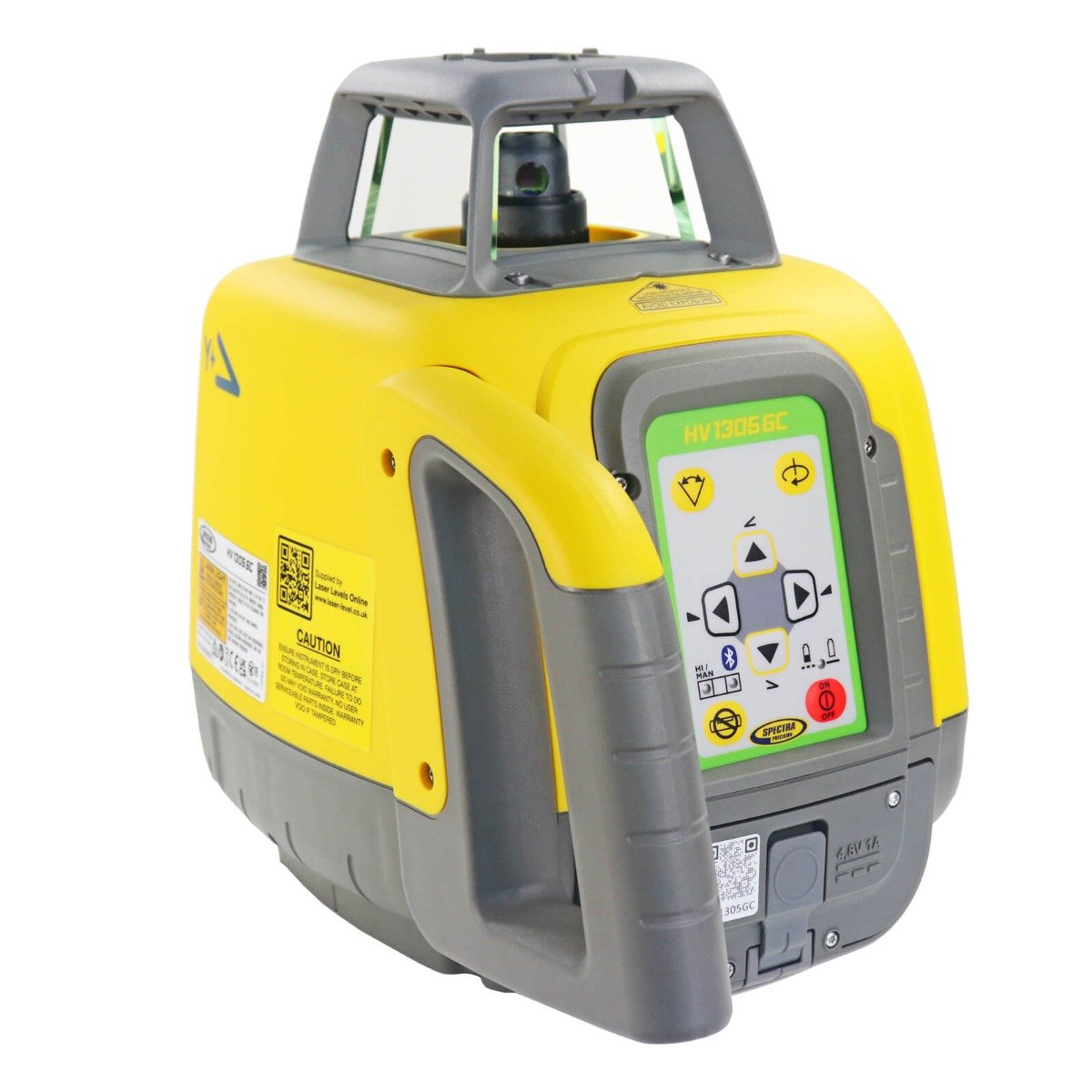

Spectra HV1305GC Rotary Laser Level (checked and pre-calibrated)

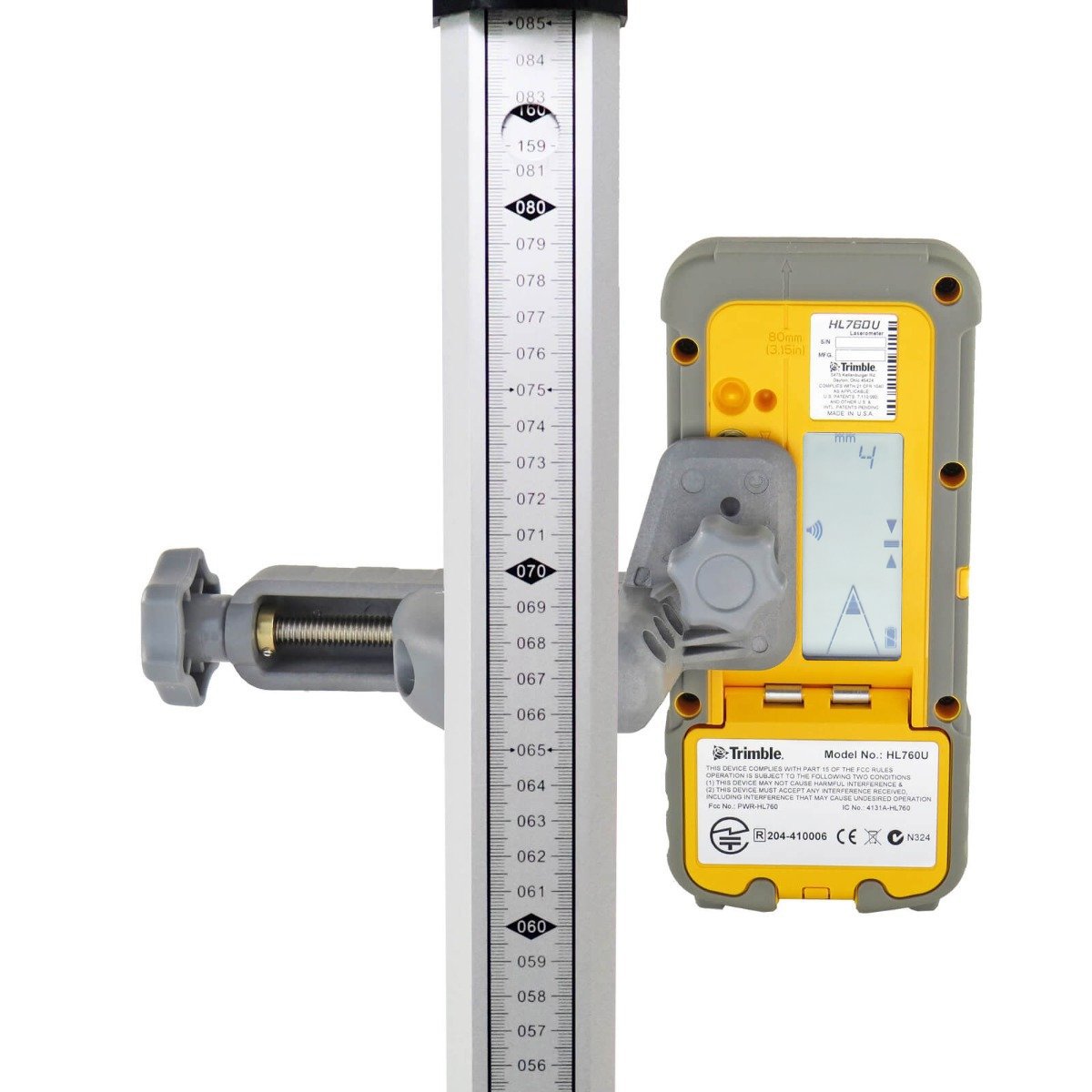

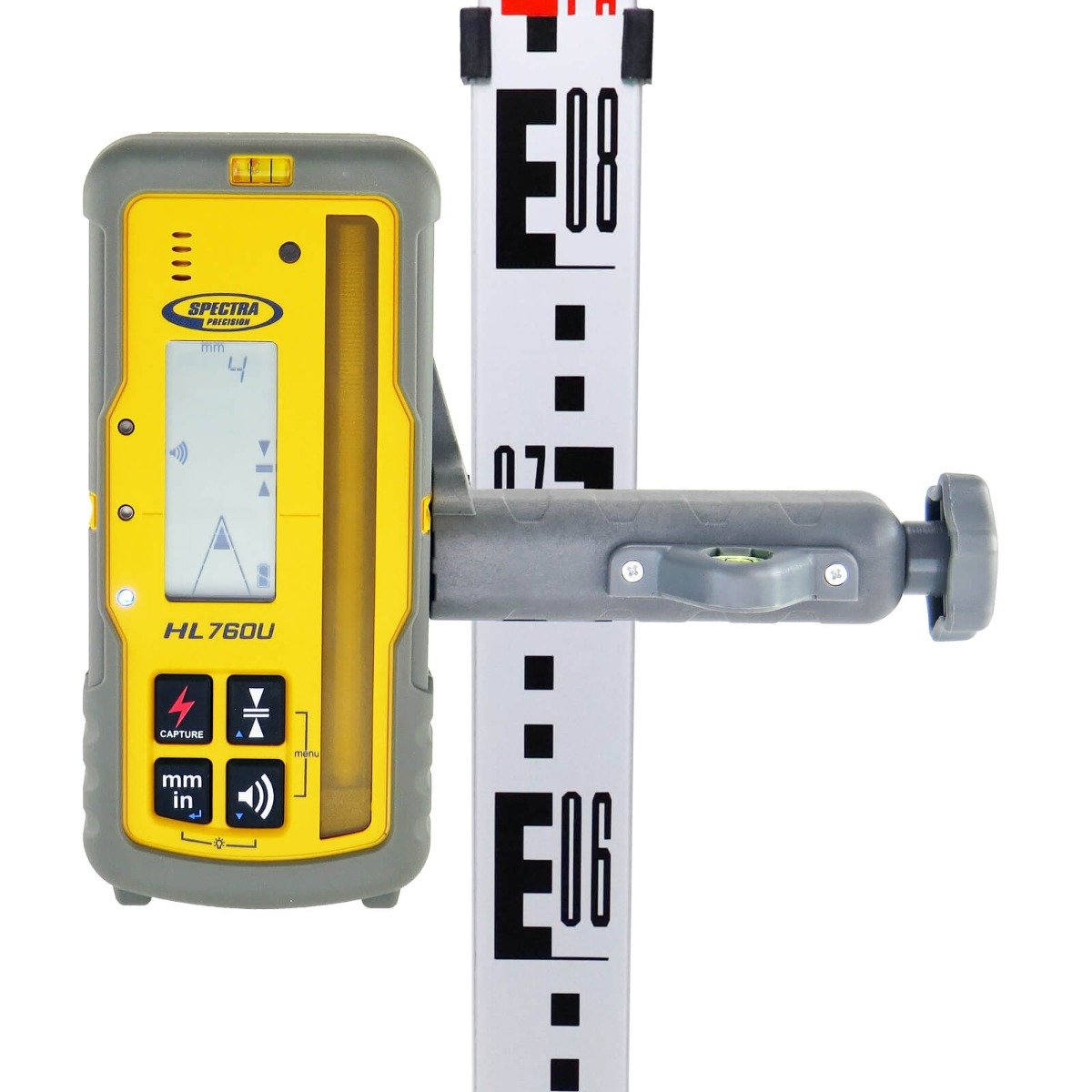

Spectra HL760U (mm / inch) Laser Detector With Staff Mounting Bracket & Batteries

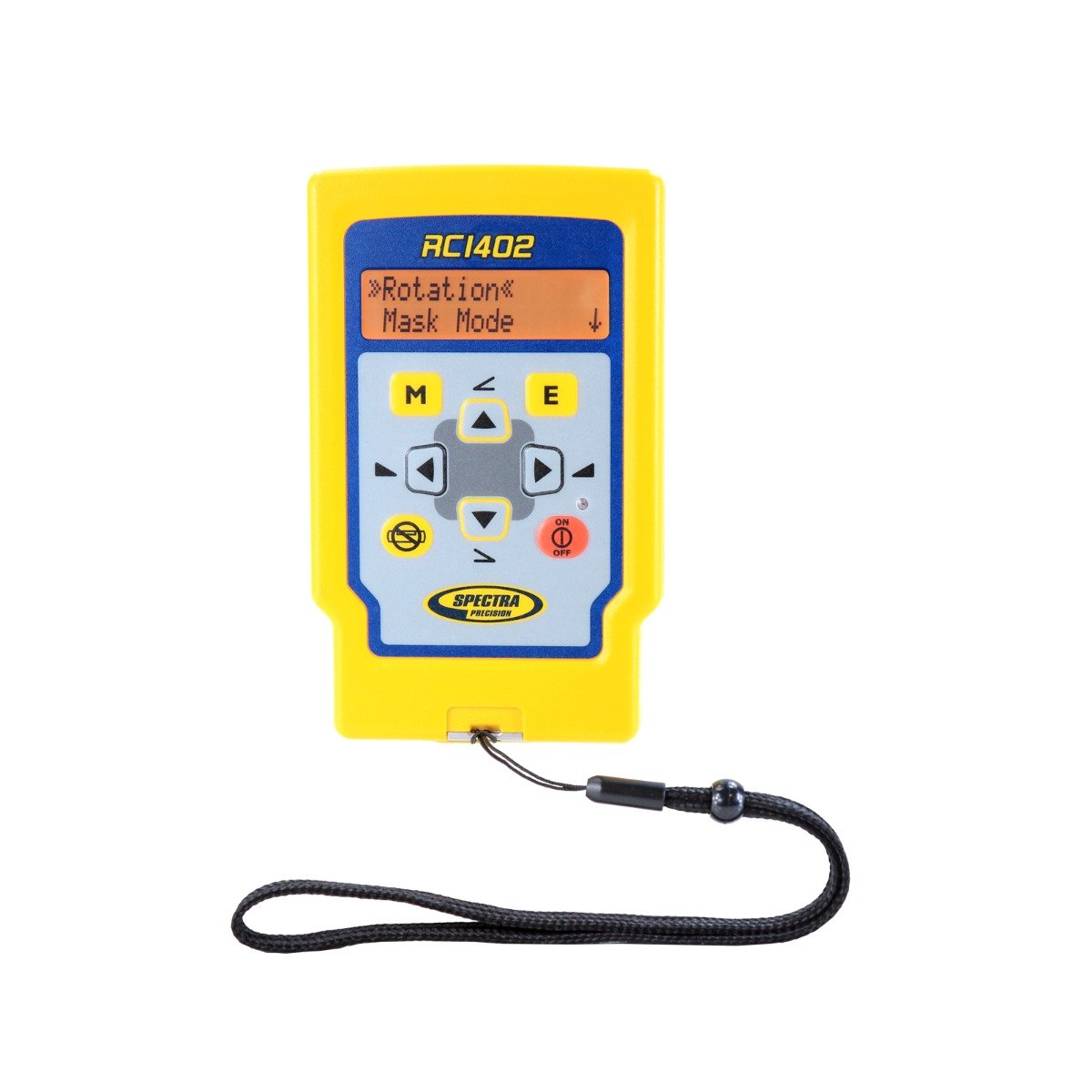

Spectra RC1402 Radio Remote Control

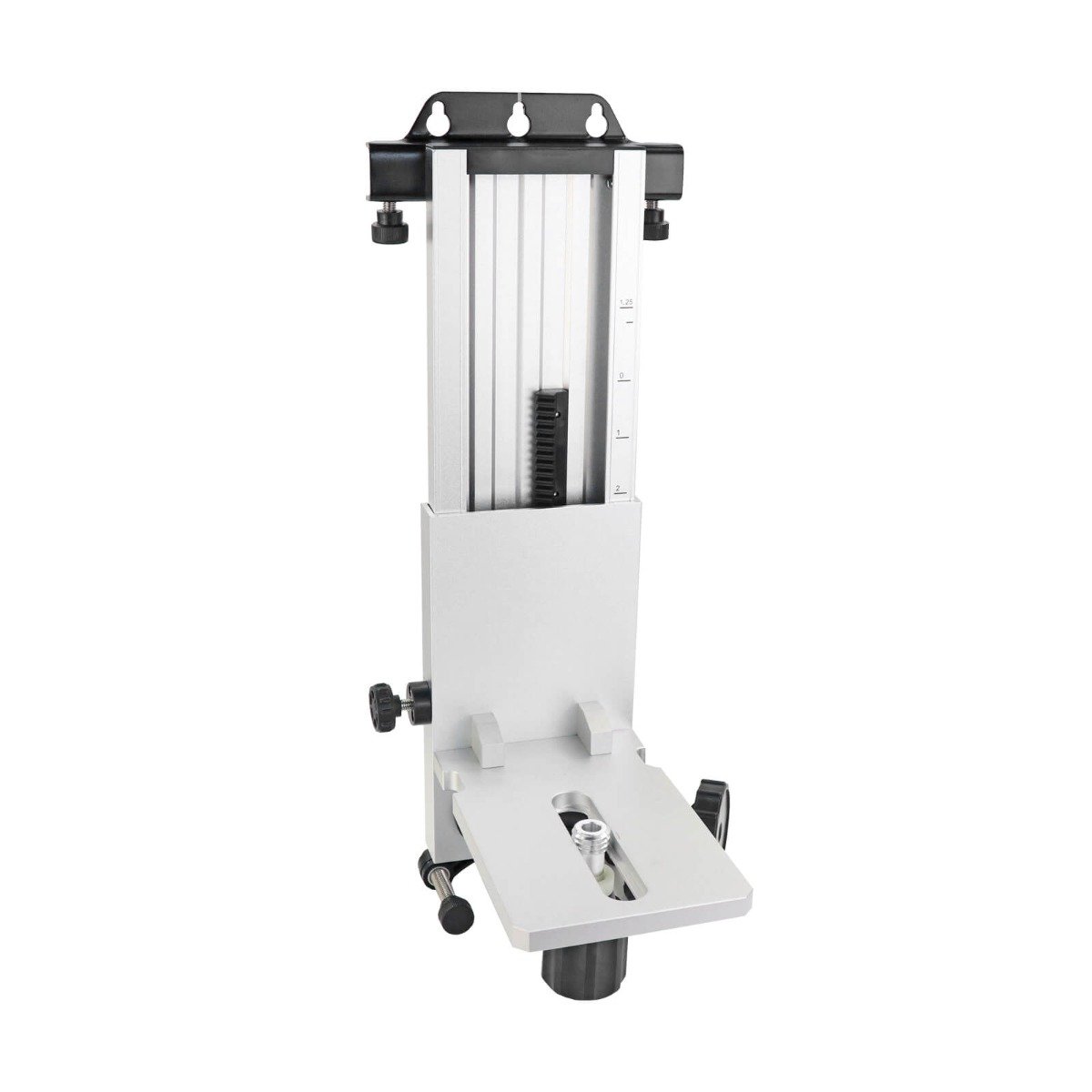

M304 Wall & Ceiling Fixers Mounting Bracket

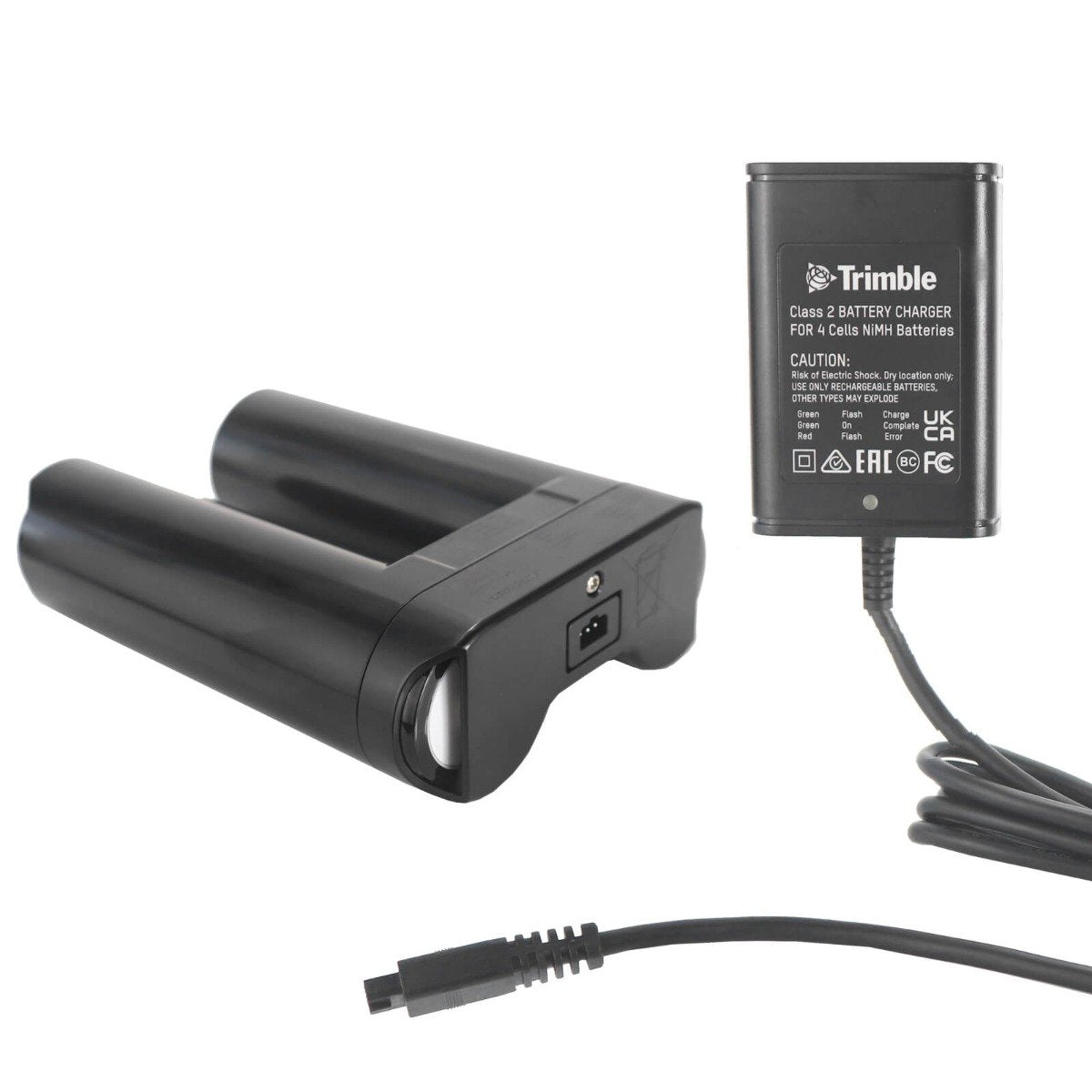

Rechargeable Battery Pack

Mains Battery Charger

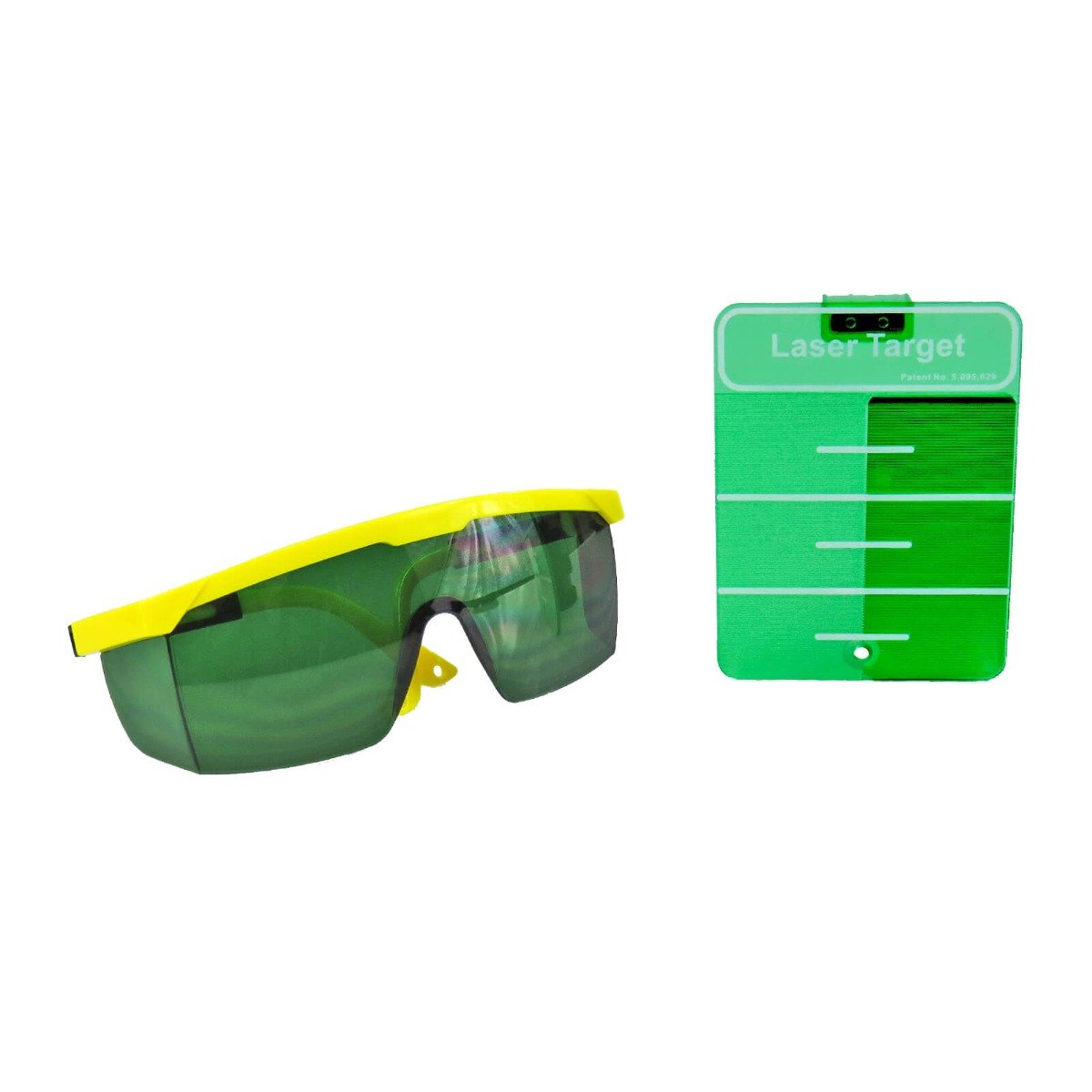

Green Magnetic Target Plate

Green Green Laser Enhancement Glasses

Surveying Tripod

4m Measuring Staff, Type TLS4S

Robust Carry Case

Instruction & Safety Manuals

Outet: 2 Year Automatic Warranty
