Fukuda FD-9G Line Detector - Outlet
Only 15 item(s) are currently left in stock
Couldn't load pickup availability
Free DPD Delivery
Order before 3:45PM each working day, for DPD delivery in 3 to 5 working days (Mon-Fri).
GPS tracked to your Door & 1-Hour delivery window.
Automatic Discount
Outlet products are typically cheaper than normal retail versions because some items may have small cosmetic flaws that don’t affect functionality but keep them from being sold at full price.
1-Year Warranty
This Outlet product will be inspected, checked and prepared by our technicians.
About this Product

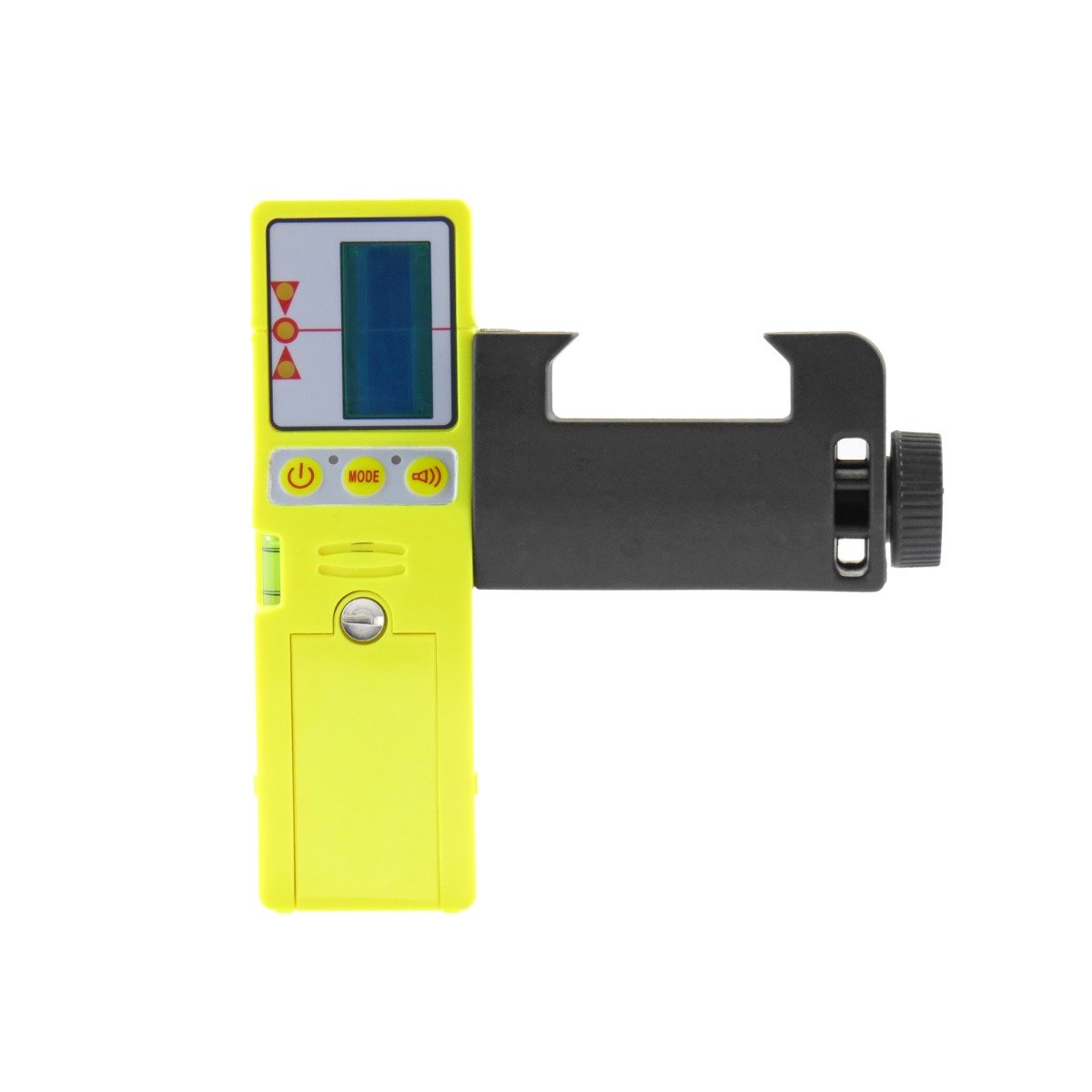

Fukuda FD-9G Detector
This is an accurate Laser Line Detector from Fukuda Lasers.
It extends the range of "pulse output" GREEN LINE lasers (Not Rotary Lasers) up to 50m for both indoor & outdoor site work.
This Detector is only compatible with specific Laser Levels. Please ensure you refer to the "Technical Specification" below to ensure compatibility.
Features
For use with Fukuda GREEN beam "pulse output" lasers.
Working range 50m
Audible indication of line level
Visual LED indication of line level
Mounting clamp bracket included for use with staffs/rods
Waterproof to IP54
Outlet Warranty: 1 Year
Specification
Sensitivity setting: fine 1.5mm / coarse 2.5mm
Frequency: 10kHz
Laser reception window: 20x40mm
Auto power off: 10 minutes
Power voltage: 9V dc
Power supply: 1 x 9V alkaline battery
Continuous operating time: 15 hrs
Waterproof: Yes to IP54
Operating temperature range: -10 to +40 deg C
Storage temperature range: -10 to +50 deg C
Instrument size: 165 x 51 x 27 (mm)
Weight: 160 grams with battery.
Compatibility
Please check compatibility below:
| Model | Compatible |
| Fukuda EK-268G | Yes |
| Fukuda FLG-411QG | Yes | Any other Brand or Model | No |
Comprises of
Fukuda FD-9G Detector
9V Alkaline Battery
Staff Mounting Bracket
Outlet Warranty: 1 Year
