Spectra UL633N Universal Grade Laser - Outlet

Long Range, High Accuracy, Grade control X,Y& Z Laser level.

Overview

Sometimes, deciding on the right laser for the job can be a daunting task and can mean that multiple types of lasers have to be used on one job site.

With the new Spectra Precision UL633N you do not have to worry, it is Universal and can do multiple applications. It is a flat, spinning laser, can do single and dual grades, vertical alignment, set 90 degrees, help square from an existing structure and can be used to lay pipe – that’s what makes it so Universal.

Small contractors can do more work on their own and larger contractors do not have to worry about sending the wrong laser or multiple lasers to any job site.

Features

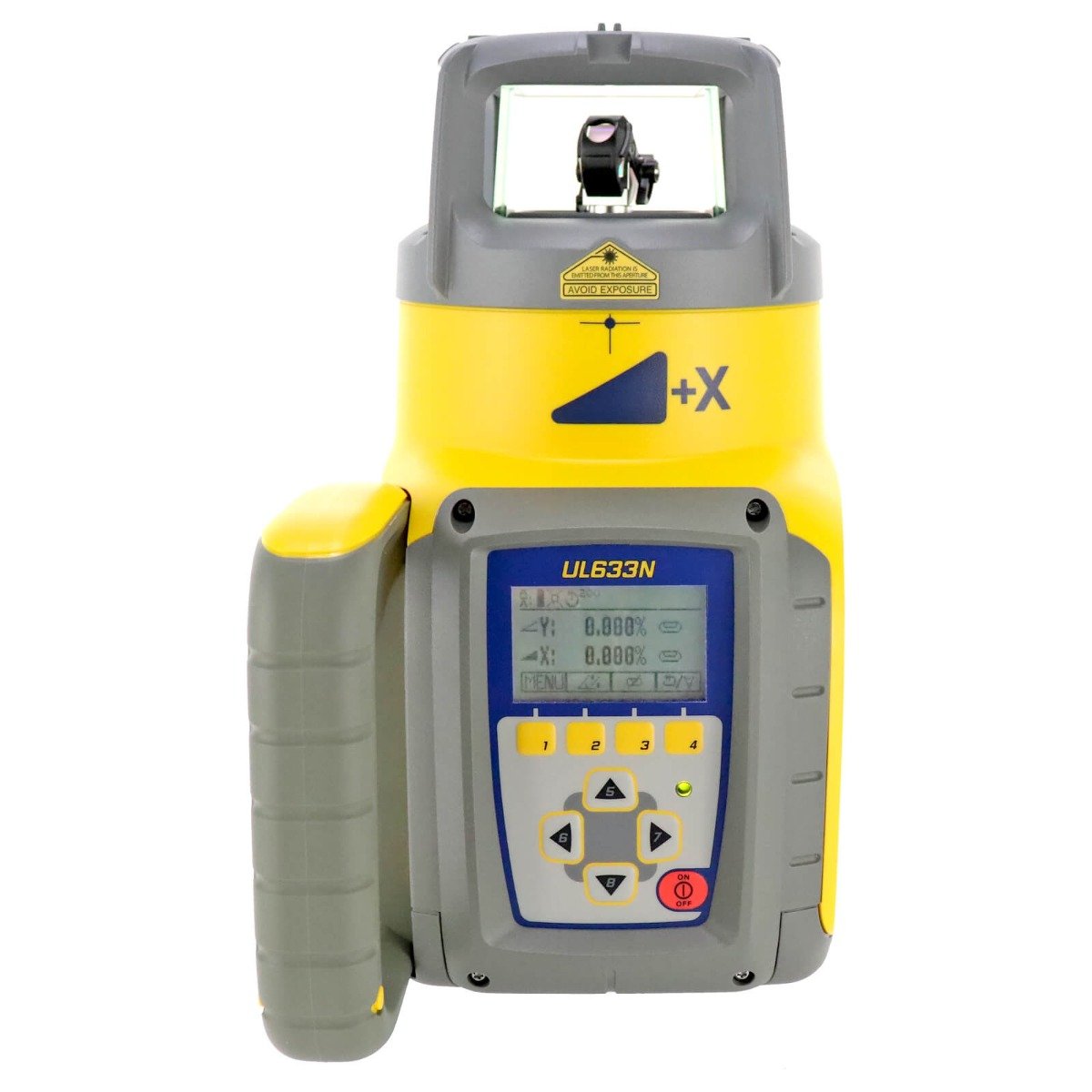

The Spectra Precision UL633N Universal Laser is the first construction laser allowing total automatic control of all three axes (X/Y/Z). Control of the Z axis is accomplished through the new "fan beam" technology, while control of the X and Y axis utilizes a dual radio connection.

Benefiting of all the know-how of Spectra Precision, the UL633N Universal Laser is appropriate for all applications producing an easy, fast and accurate job.

The Universal laser can provide precise automatic axes alignments to two desired points without positioning the detectors 90 degrees perpendicular. This allows contractors to perform easily dual axis alignments for applications such as grade work on sports fields, parking lots, tennis courts and driveways. The UL633N Universal Laser can work with two detectors simultaneously (Only ONE HL760 detector is included), where Contractors can measure an unknown grade value automatically between two elevation points in Grade Match mode.

On job sites where maximum accuracy and stability is required such as airport runways, elevations can be precisely secured using the automatic Dual Axis PlaneLok feature. This capability locks and maintains the laser reference plane to two detectors placed at existing elevation points, eliminating drift or possible errors caused by vibrations or temperature changes.

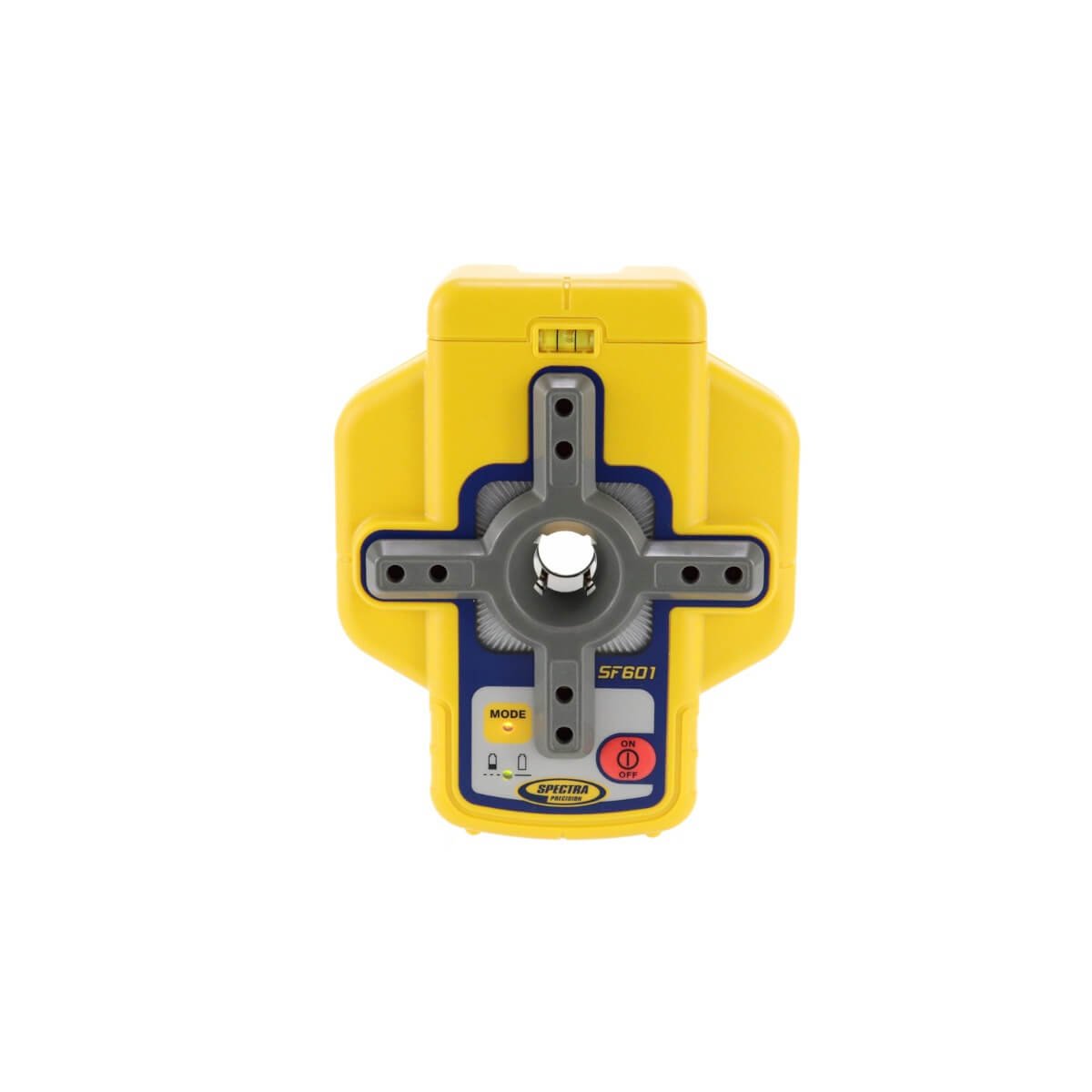

The UL633N Universal Laser is also the first laser where the plumb beam can be changed into a rotating fan beam which can be detected by the new Spot Finder, model SF601. The UL633N can align the plumb beam automatically to the Spot Finder for pipe laying and trench applications. Measuring a grade value through an existing pipe or an open trench can also be done quickly and easily in automatic Spot Match mode. The UL633N and the Spot Finder offer additional versatility for 90-degree layout applications on concrete pads as well as indoors for drywalls. Activating the SpotLok mode ensures the UL633N locks and holds the plumb beam automatically to the Spot Finder at the desired direction or elevation point offering a precise alignment to avoid rework.

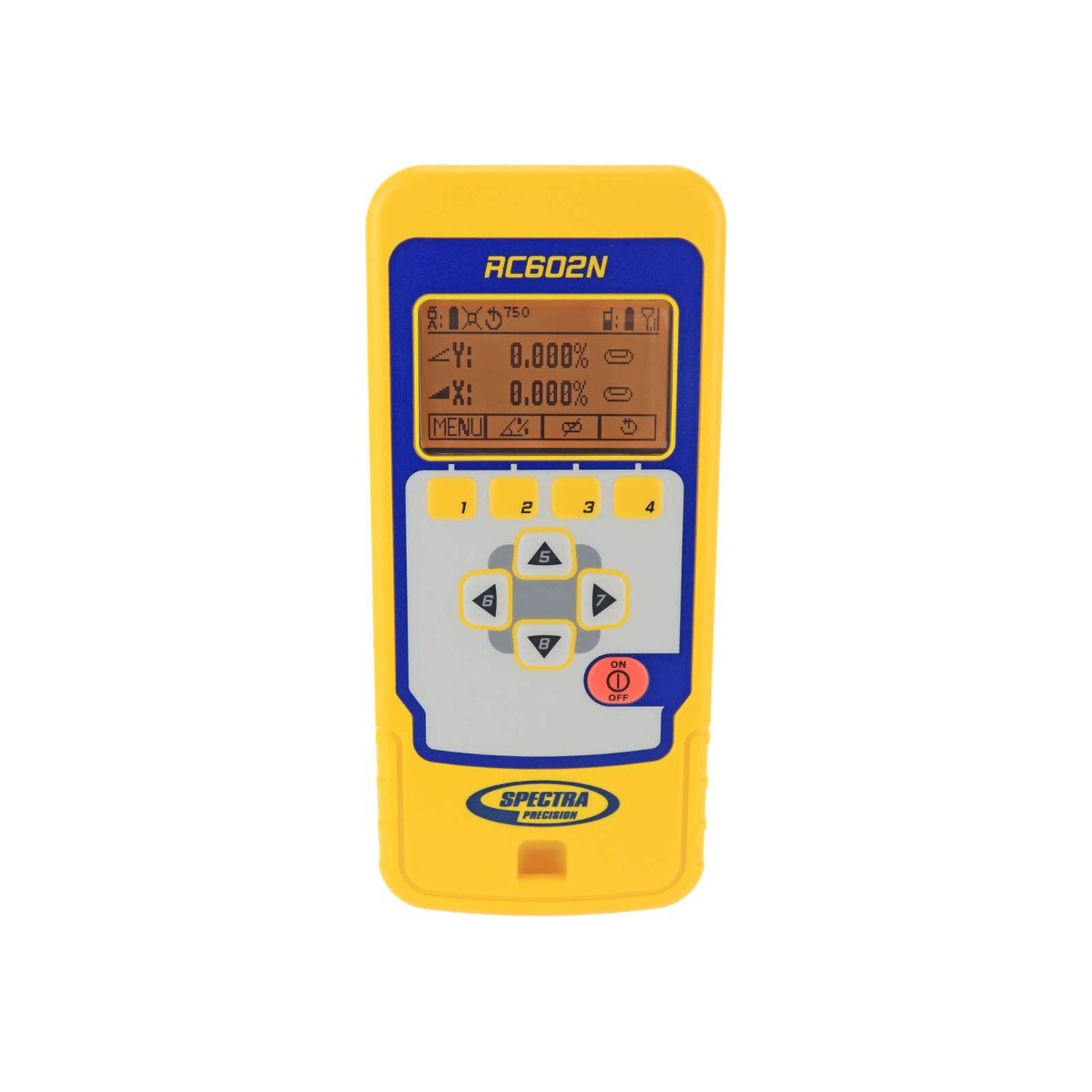

The UL633N includes a full-function combined radio and infrared remote control RC603N, with a built-in back-lit intuitive graphic display. Contractors can do everything with the remote control that they can do at the laser keypad, up to 100m (330 ft) away from the laser -even from the cab of a machine or through a pipe. The ability to make grade changes remotely can significantly reduce setup time and speed operations.

With its rugged design, the UL633N can survive a drop of up to 1 metre (3 feet) on concrete. The laser also features IP67 moisture and dust sealing to handle the tough construction environment.

The UL633N Universal Laser retains all well accept functions of the GL500 series lasers with additional advanced features and benefits offering much more versatilities.

Multiple Applications - The Spectra Precision UL633N Universal Laser is the first construction laser that provides the ability to control level, alignment, single/dual grade and even do grade in vertical like a pipe laser allowing you to do more work with one tool.

Automatic self-levelling - provides fast, easy set-up for horizontal level, grade or vertical alignment

Automatic Grade Matching - meaning the laser moves to the on-grade position on the detector automatically by communicating wirelessly with the detector and the grade is then calculated – this is generally used when a constant fall is desired but the grade may not be known (renewing existing driveways or matching existing surfaces)

Grade Range - Large, fully compensated grade range from -25% to 25% - keeping the laser levelled no matter what grade you need reducing errors and improving productivity.

Anti-Vibration Filter - A laser can be affected by high vibration or strong wind, especially when the laser is mounted on a tall tripod –the UL633N has an anti-vibration filter that can be set according to the conditions allowing work to continue regardless of wind conditions or excessive vibrations.

Temperature compensation & PlaneLok -As temperature fluctuates throughout the working day, the internal components of a laser can expand and contract which can cause some additional error without the user noticing. This is firstly resolved through the automatic temperature check that the laser performs where the internal software calibrates the laser to its optimal performance based on the temperature. Additionally, the PlaneLok function can be activated. This keeps the laser beam fixed to a detector in a set a position eliminating any error that can be caused by fluctuating temperatures, keeping the laser accurate and error-free.

Automatic Axis Alignment - A critical factor when working with grade is alignment to the grade hub. If the alignment is off, an error can be introduced and exaggerated. The UL633N has an Automatic Axis Alignment function, allowing the user to set-up simply and quickly, maintaining accuracy and eliminating costly errors. The Automatic Axis Alignment function has the added benefit of being able to simultaneously align on two axes not at 90 degrees to each other. This is especially useful when trying to construct envelope set-ups on a concrete pad or when setting a dual grade for a drainage channel intersecting another channel at an angle not at 90 deg to the main run.

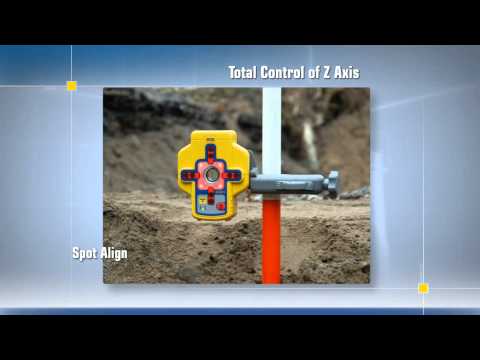

Vertical Grade - The Spectra Precision UL633N vertical grade capabilities are enhanced with the use of the SF601 Spot Finder. This accessory allows automatic alignment of the plumb beam. This provides fast alignment to a manhole on a first-day set-up, or to quickly set-out a 90-degree angle. Additionally, the Spot Finder can be used to check the grade in pipe on a second-day set-up. The beam locks onto the Spot Finder and displays the actual grade on the remote and the laser, saving time and eliminating lengthy manual calculations.

Rugged - Designed to operate on the toughest of job sites, the UL633N can withstand a 1m drop directly onto concrete or 1.5m pushover on a tripod, eliminating costly repairs.

Mask Mode- The UL633N has a virtual masking function that allows the laser beam to be turned off in up to 3 sides, avoiding false reading from glass reflections or interfering with other lasers on the same job site.

Specification

Laser Source: visible red laser diode 650nm, Class 3

Laser High Accuracy: ±1.5 mm at 30m

Grade Accuracy: +/-1mm/10m

Operating Range (diameter) with HL760 detector: 800m

Self-Levelling Range: ±14 degrees

Compensation Method: Electronic self-leveling

Drop Height on Concrete performance: 1m

Grading range: -25% to +25% (in X,Y & Z-axis)

Grade resolution: 0.001% over entire range

Scan mode: 5 preset sizes + variable adjustment

Out of Level (HI) Warning: Yes

Power Source: rechargeable battery pack or alkalines

Battery Life: 35 hours (NiMH rechargeable)

Rotation Speed: 0-750rpm

Tripod Mount (Horizontal and Vertical): 5/8” x 11

Operating Temperature: -20 to 50°C

Storage Temperature: -20 to +70°C

Water Resistant: Yes, protection to IP67

Size: 24 x 15 x 28cm

Weight: 3.1kg

Outet: 2 Year Automatic Warranty

Detector features

Choosing the right detector ensures maximum performance from the UL633N.

The standard kit has one HL760's or for machine control applications, see the very popular (optional) magnetic detector: model C700.

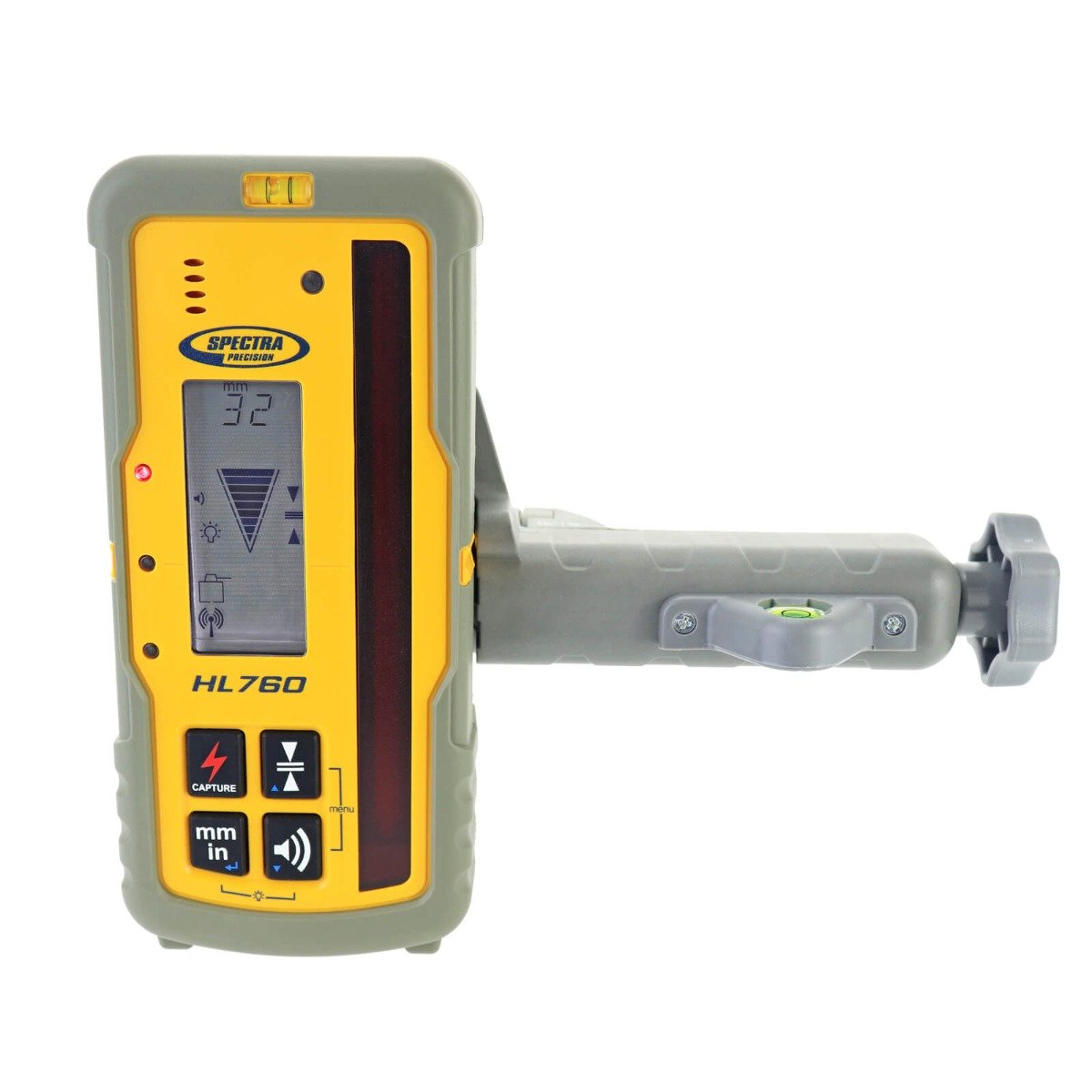

HL760 Digital Readout Detector

Highly versatile detector for basic and advanced leveling and aligning applications

Works with UL633N in automatic Axis Alignment, Grade Match and PlaneLok applications

Key Features:

Digital readout of elevation

Exact distance from grade displayed

Anti-strobe sensor to prevent false reading from jobsite strobe lights

Large reception height to ease beam reception

Withstands a drop of up to 3m

Radio communication - works with another HL760 for long range wireless remote display and monitoring capability

User Benefits: - No need to go “on-grade” to measure; - Saves considerable time - Reduces rework by allowing remote monitoring - Increases reliability, accuracy and durability.

HL760 Specifications:

Digital readout units: mm, cm, ft, in, frac. ins

Reception height: 127 mm

Six On-grade sensitivities: Ultra Fine 0.5 mm - Super Fine 1 mm - Fine 2 mm - Medium 5 mm - Coarse 10 mm - Calibration Mode 0.1 mm

Battery life (2 x AA): 60+ hours continuous operation

Auto shut-off: 30 minutes / 24 hours

Operating temp.: -20°C to 50°C

Drop performance: 3m

Dust and waterproof: Yes - protected to IP67

Weight: 0.27 kg

Outet: 1 Year Automatic Warranty

Technical specification

Accuracy:

+/- 1.5mm @ 30 metres, max. operating diameter 800m (400m either side of the instrument).

An accuracy of +/- 1.5mm @ 30 metres is equivalent to 0.05 mm/m and to put that into perspective, the best premium German spirit level has an accuracy of +/- 0.5 mm/m or +/- 15mm @ 30 metres.

Dual Grade facility:

Dual axis X and Y axis up to +/-25% (1 in 4)

Both X & Y axis can be set to give a maximum fall of up to 2.5m at 10m distance away. (ie. 1 in 4 & +/-25% grade)

The User can dual grade from the laser's keypad or via the included RC603N radio remote.

Example usage

General Excavations

on grade

Pipe alignment

Levelling forms and footers

Screeding concrete

Driveways and ramps

Machine control

Cut & Fill

Engineering alignment & levelling applications

Extra benefits of the Universal Laser UL633N are:

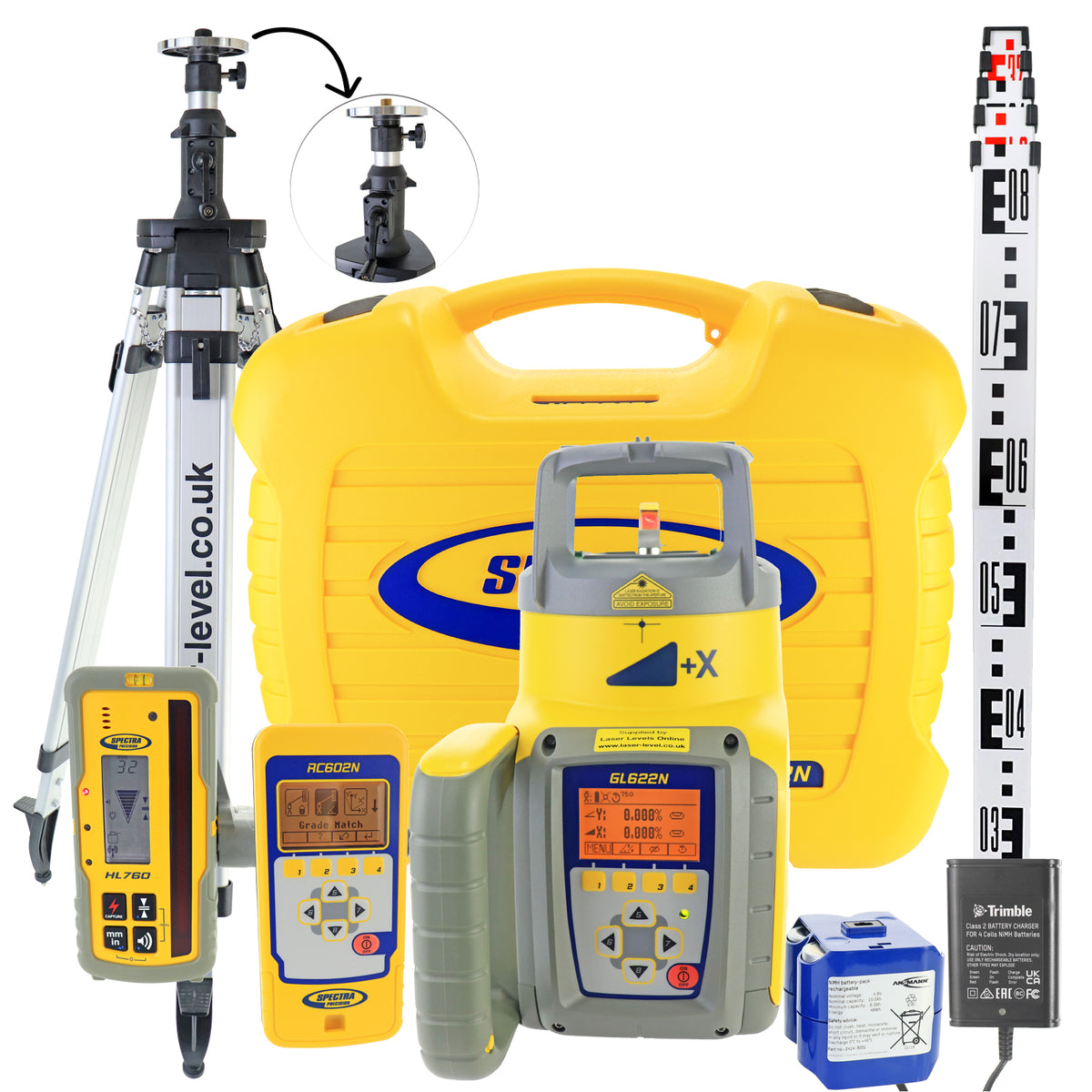

1. Grade matching and PlaneLok facility in 3 axis: X axis only, Y axis only and X & Y axis together. Can operate with two detectors simultaneously. The GL622N will only operate with one detector in one axis at a time. Nb. Range is limited to 150m due to radio transmission distance not the 400m laser beam range.

2. Automatic Spot Alignment and Spot Lok facility using beam fan technology using SF601 spot finder. Operates like a pipe laser.

3. Superior temperature compensation and stability system.

4. Electronic level vibration filter.

Manufacturers data

Spectra 2 Year - Outlet Warranty

This Outlet UL633N Laser Level is covered by a "2-Year - No Cost" Warranty which covers all defects due to material and workmanship. Spectra Precision Laser products with this warranty that have failed will be repaired FREE OF CHARGE for two years from the date of purchase.

Please note: The Detector, Tripod, Staff are not covered by the 2 Year Warranty. Please see individual product listing for their respective warranty period.

Also included in the kit

The Spectra UL633N Universal Grade Laser Kit also includes the following accessories:

4m Telescopic Levelling Staff (Model: TLS4S)

(Colours / Brand may vary)

4m, 5-section, Telescopic Levelling Staff.

Five robust aluminium sections with abrasion proof scale.

Closed length height 970mm, extending to maximum height of 4m.

Automatic locking buttons when extended.

Millimetre scale on back and E-graduations (1cm) markings on front

Rear mm scale (for use with laser levels) has ZERO mm marking at ground level.

Red / Black coded front sections.

Accepts all Laser detector mounting brackets.

Removable, rear-mounted circular Bubble Level.

Carry sleeve.

Height: 0.97m closed length to extended max 4m.

Weight 1.15kg.

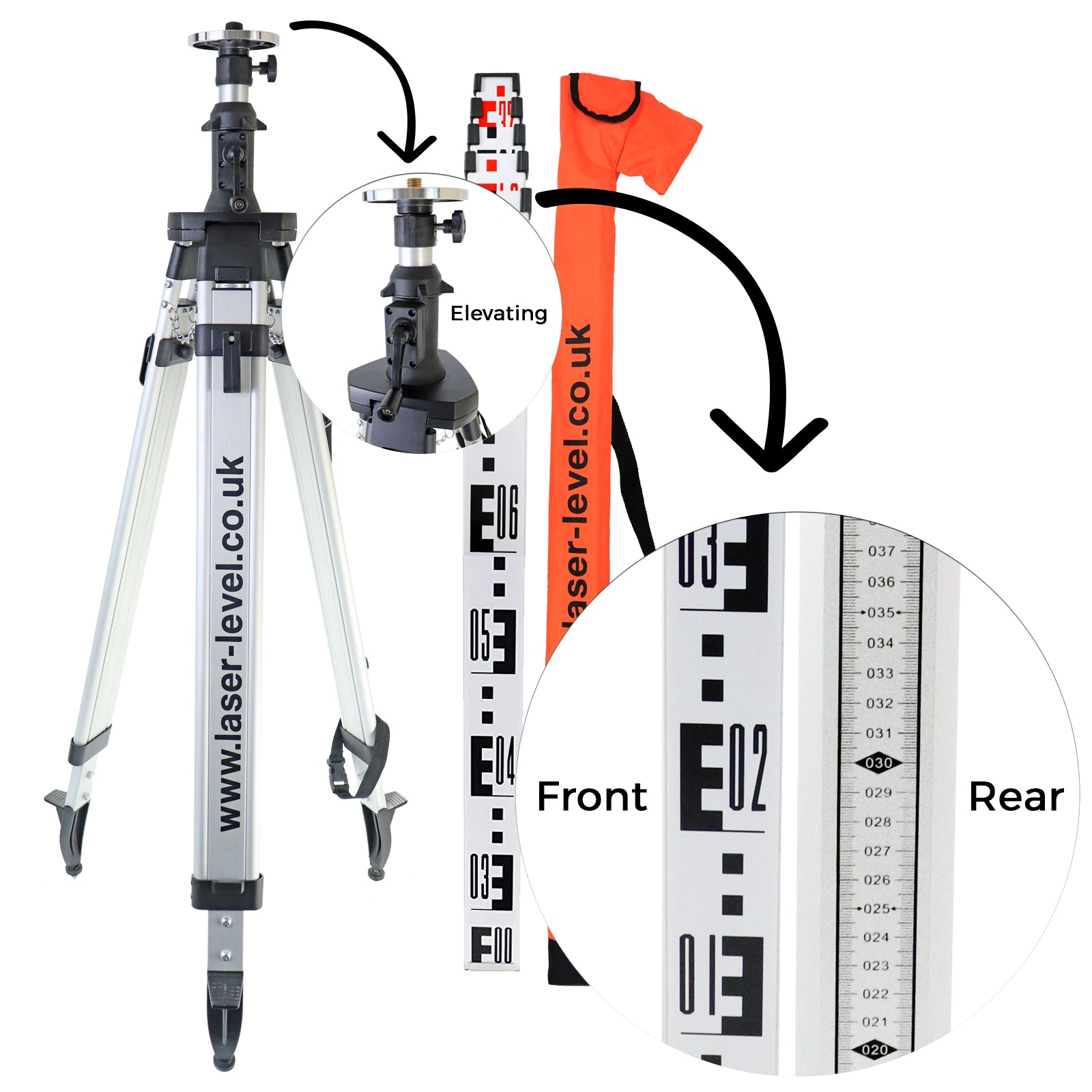

Elevating Surveying Tripod (Model: ET2161)

Features

Maximum 2.3m height.

Rigid section, stable, aluminium tripod.

Extending legs with locking clamps & support chains.

The central elevator column has mm graduations to measure height.

Feet can be changed from outdoor spikes to domed for indoors.

Well engineered, elevator gear system for fine height setting.

Mounting head with 5/8" thread fixing.

Hollow 5/8" inch thread to allow lasers which have a down plumb dot to pass through to the floor.

Carry strap.

Specification

Flat platform 105mm diameter, threaded 5/8 inch x 11.

Minimum height 1.10m

Maximum height 2.30m (with legs & elevator column both raised).

Fine adjusting, elevator height range: 760mm.

laser-level.co.uk branding on tripod leg

Weight 5kg.

Do you need ShockWatch® adding to your Laser?

The optional ShockWatch impact indicator clip is a tamperproof, mechanically activated device that turns bright red to indicate mishandling or after the Laser has received an excessive impact. Designed to mount directly onto the Laser Level, the clip is compact and economical and provides 360° impact detection alerting the user to check the Lasers Calibration before use. If this option is selected, our Technicians will fit your Laser with a Shockwatch prior to dispatch, giving you and your users extra piece of mind on the job site.

For further details of ShockWatch®, please Click Here.

Need to mount a Detector on Plant equipment?

The Spectra UL633N Universal Grade Laser Level can be used for machine control by using a magnetic CR700 Detector, which can be purchased as an optional extra.

For further details of the Spectra CR700, please Click Here.

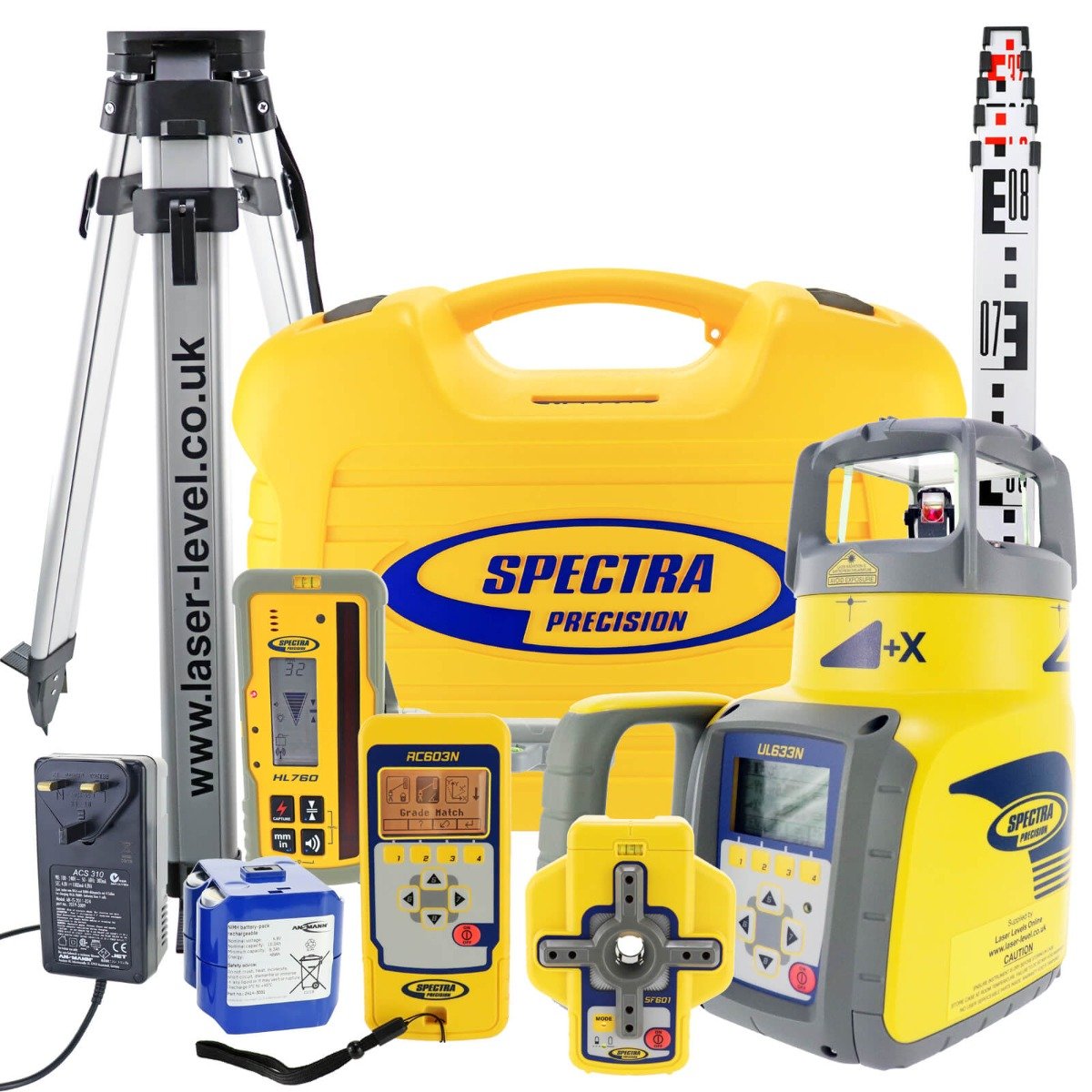

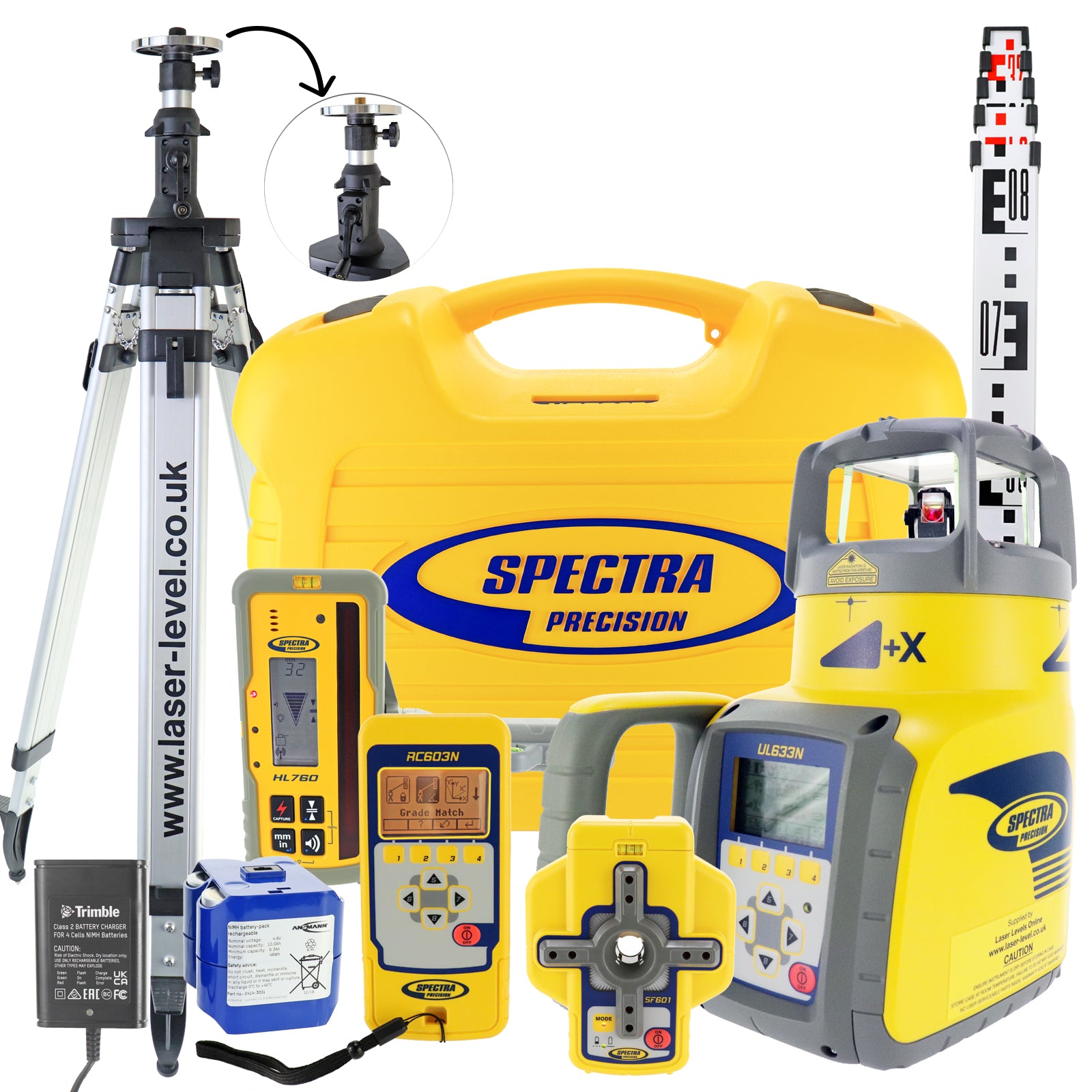

Kit comprises of

Spectra UL633N Universal Laser Level (checked and pre-calibrated)

Spectra HL760 Laser Detectors With Staff Mounting Bracket & Batteries

Spectra RC603N Radio Remote Control & Batteries

SF601 Spot Finder With Sun Shield & Batteries

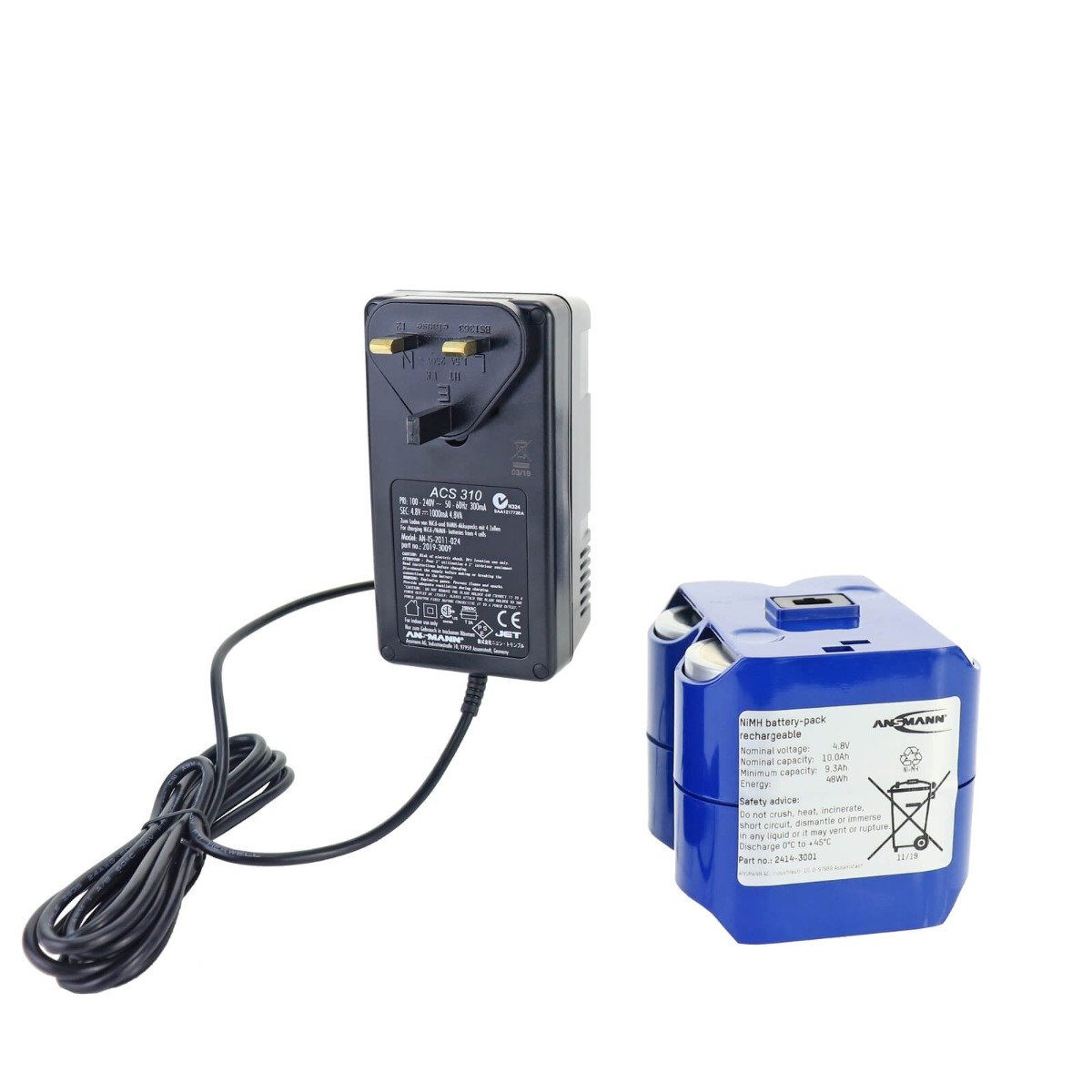

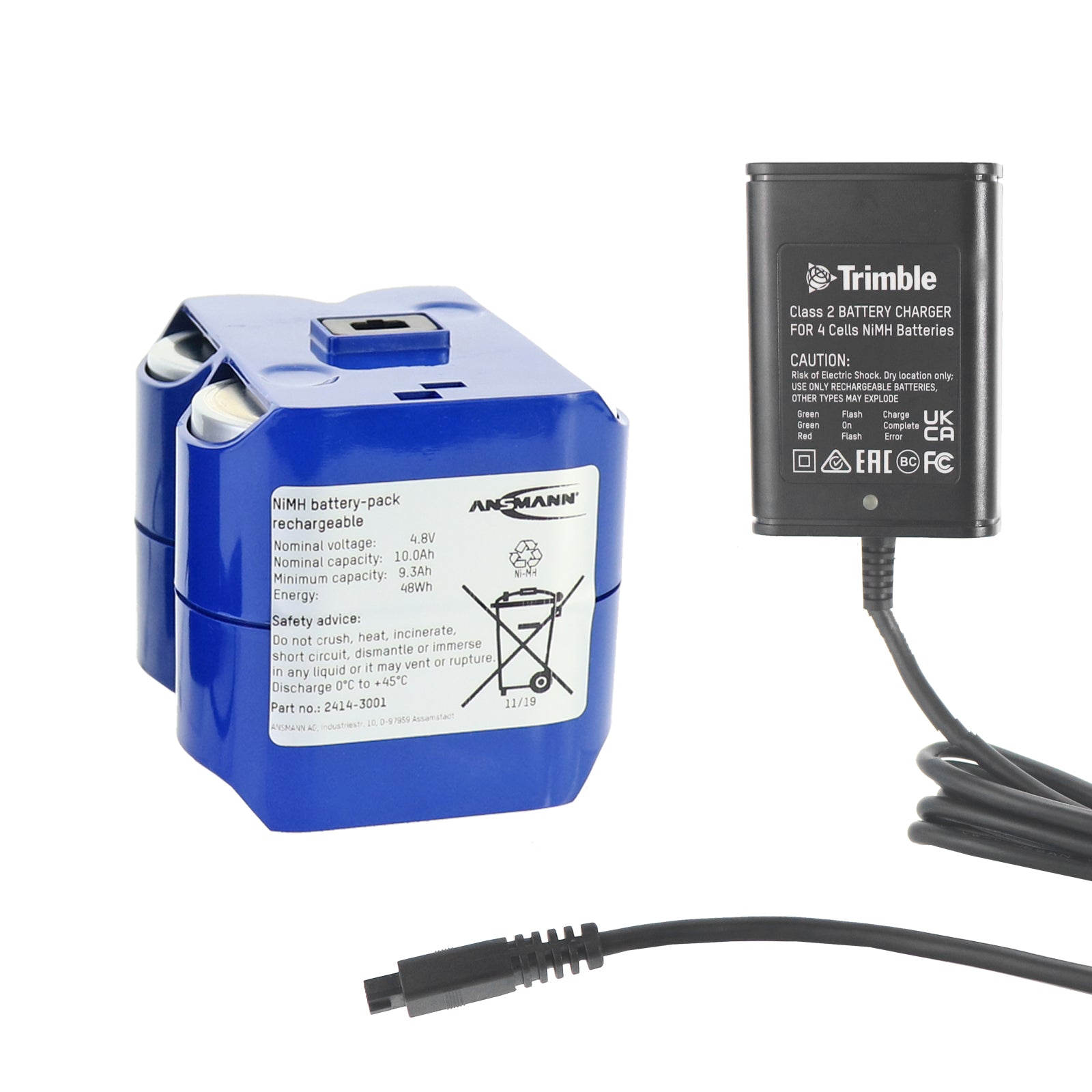

Q104667 Rechargeable Battery Pack (High Capacity)

Q104781 Universal Mains Charger

105516 Vertical Adapter for HL detector

Elevating Surveying Tripod, Type ET2161

4m Measuring Staff, Type TLS4S

Robust Carry Case

Instruction & Safety Manuals

Outet: 2 Year Automatic Warranty
