Spectra HL700 Detector - Outlet
Couldn't load pickup availability
Free DPD Delivery
Order before 3:45PM each working day, for DPD delivery in 3 to 5 working days (Mon-Fri).
GPS tracked to your Door & 1-Hour delivery window.
Automatic Discount
Outlet products are typically cheaper than normal retail versions because some items may have small cosmetic flaws that don’t affect functionality but keep them from being sold at full price.
1-Year Warranty
This Outlet product will be inspected, checked and prepared by our technicians.
About this Product

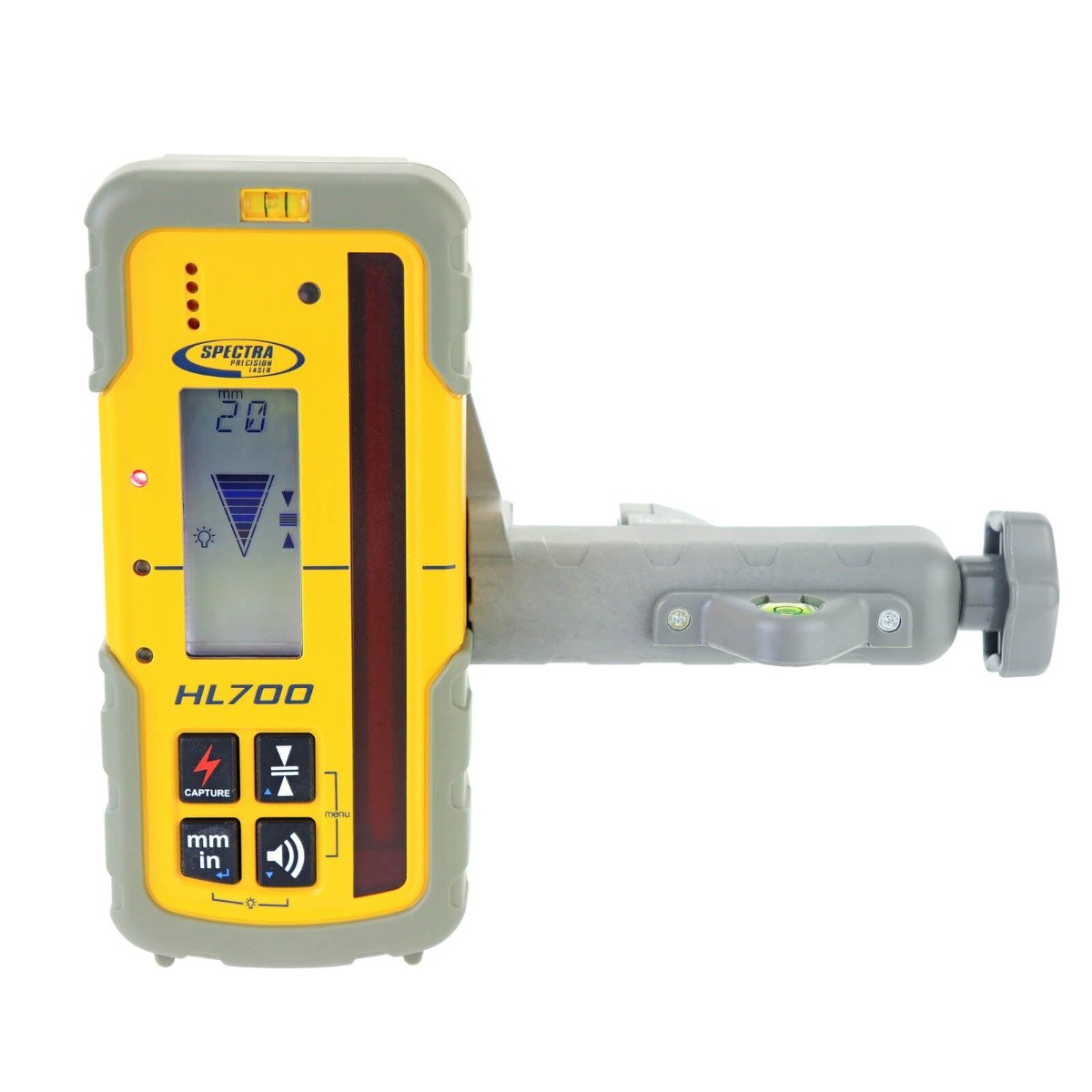

Spectra HL700 Rotary Detector With "Mm / Inch" Display
The Spectra Precision® Laser HL700 Laser Detector, a highly versatile laser receiver for basic and advanced levelling and aligning applications, is designed for general, concrete and site preparation contractors.
The HL700 is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating red beam laser level.
It features a digital readout of elevation that provides a numeric display of +/-50mm to 0.5mm resolution. The readout is displayed on the large front and rear LCD's and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity.
Selectable units of measurement can be displayed to meet your specific application - mm, cm, ft, in or fractional inches.
A 127mm long red pick-up window, more than double the industry standard, allows quick acquisition of the laser beam.
An anti-strobe sensor prevents false readings from any adjacent site strobe lights.
This detector is designed to survive tough construction site conditions; it is totally waterproof (IP67) and can withstand a drop of 3 metres (10 feet) onto concrete.
Features
Digital readout of elevation - not only will high or low arrows be displayed, but the exact distance from grade will be numerically displayed, which eliminates the need to get "on-grade" to make measurements.
Large 127mm reception height acquires the beam quickly and makes it easy to stay in the beam. The anti-strobe sensor stops construction strobe lights from setting off the receiver and makes it easier to identify true laser beam signals.
Simultaneous elevation LED's signal in low light levels and over a longer range for easier reading in poor light conditions.
A new CAPTURE function remotely captures and retains a measurement when the display is difficult to see.
Multiple deadband sensitivity settings, five in all, allows adaptation to meet all your job site requirements.
Dust and weatherproof housing withstands a drop of up to 3 m (10 ft) onto concrete for reduced downtime.
Two clamp positions for cut/fill or excavation. Excavation mode puts more reception height and elevation information above grade for higher utilization in digging and staking applications.
Example usage
Setting and checking jobsite elevation and depth for:
Cut and fills
General grading
Foundations, forms, and footings
Excavations

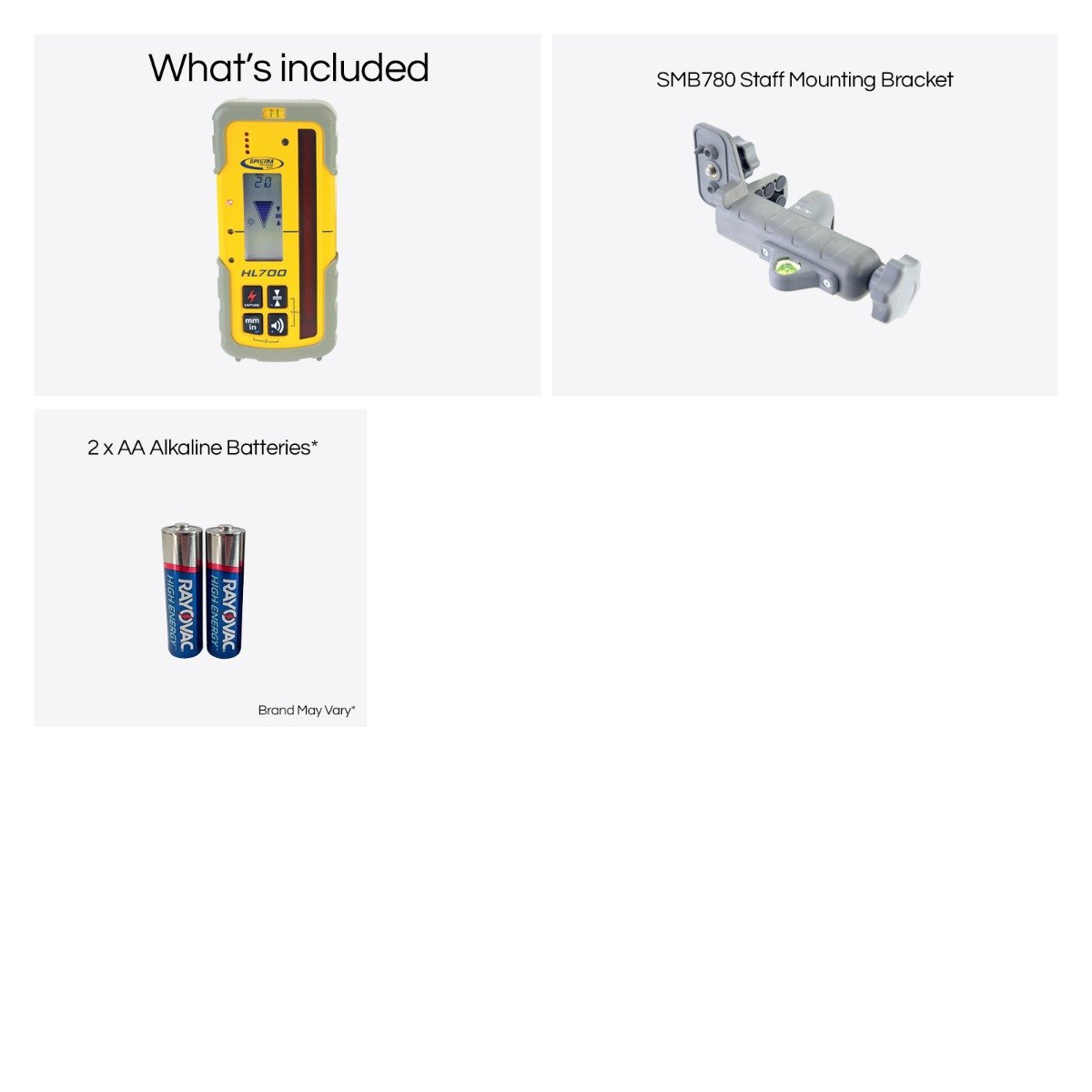

Comprises of
Spectra HL700 Detector
2 x AA Alkaline Batteries
Spectra SMB780 Staff Mounting Bracket With Bubble Level
Instruction & Safety Manual
Outlet Warranty: 1 Year
