Fukuda FRD600R Rotary Detector - Outlet
Only 62 item(s) are currently left in stock
Couldn't load pickup availability
Free DPD Delivery
Order before 3:45PM each working day, for DPD delivery in 3 to 5 working days (Mon-Fri).
GPS tracked to your Door & 1-Hour delivery window.
Automatic Discount
Outlet products are typically cheaper than normal retail versions because some items may have small cosmetic flaws that don’t affect functionality but keep them from being sold at full price.
1-Year Warranty
This Outlet product will be inspected, checked and prepared by our technicians.
About this Product
Fukuda FRD600R Laser Detector
Fukuda Lasers have listened to feedback from customers and have developed a new detector, model FRD600R with added features & improvements for the Professional Tradesperson, which is easy-to-use and very accurate. It is ideal for use with any brand of rotating red beam laser level.
This Detector is a highly versatile, well-engineered laser receiver for both basic and advanced levelling and aligning applications; designed for general, concrete and site preparation contractors. Strong magnets on two sides give added convenience when instaling steels and metal structures.
A 125mm long red pick-up window, more than double the industry standard, allows quick detection of the laser beam. Readings are shown in three ways: via front and back LCD, coloured LED indication and by audible sound, selectable loud/normal/off.
It is specifically compatible with the following Fukuda Red beam laser models: FRE-207, FRE-208, FRE-203XR, FRE-203XT, FRE-102AR and is designed to extend the range of these lasers to 500m diameter.
(Note: This Detector is NOT suitable for green beam Rotarys or any Cross Line laser)
Features
Large 125mm reception window picks up the beam quickly and makes it easy to stay in range. Two LCD screens both front & back.
Simultaneous elevation LED's signal in low light levels and over longer distances for easier reading in poor light conditions. A back-light is included.
Multiple deadband sensitivity settings, three in all, allows adaptation to meet all your job site requirements.
Dust and weatherproof housing to IP55.
Very powerful, top & side mounted magnets
Continuous usage, 30 hours battery life with auto switch off facility.
Specification
Detecting Sensitivity: fine, medium & course settings +/- 1mm, +/-2.5mm & +/- 5mm
Display: Front & back LCD, back-lit (blue tint)
Audible pitch warning. (selectable On, loud/normal & Off)
Power supply: 1 x 9V, PP3 alkaline battery
Operating time: Approx 30 hours continuous, at 20 deg C.
Low battery warning via LCD.
Power Conservation: 15 minutes auto cut-off.
Working temperature: -20 to +50 deg C.
Dimensions: 75 x 38 x 165mm
Weight: 590g (with battery & bracket)
Example Usage
Setting and checking jobsite elevation and depth for -
Cut and fills
General grading
Foundations
Forms and footings
Excavations
Comprises of
Fukuda FRD600R Detector
9V Alkaline Battery

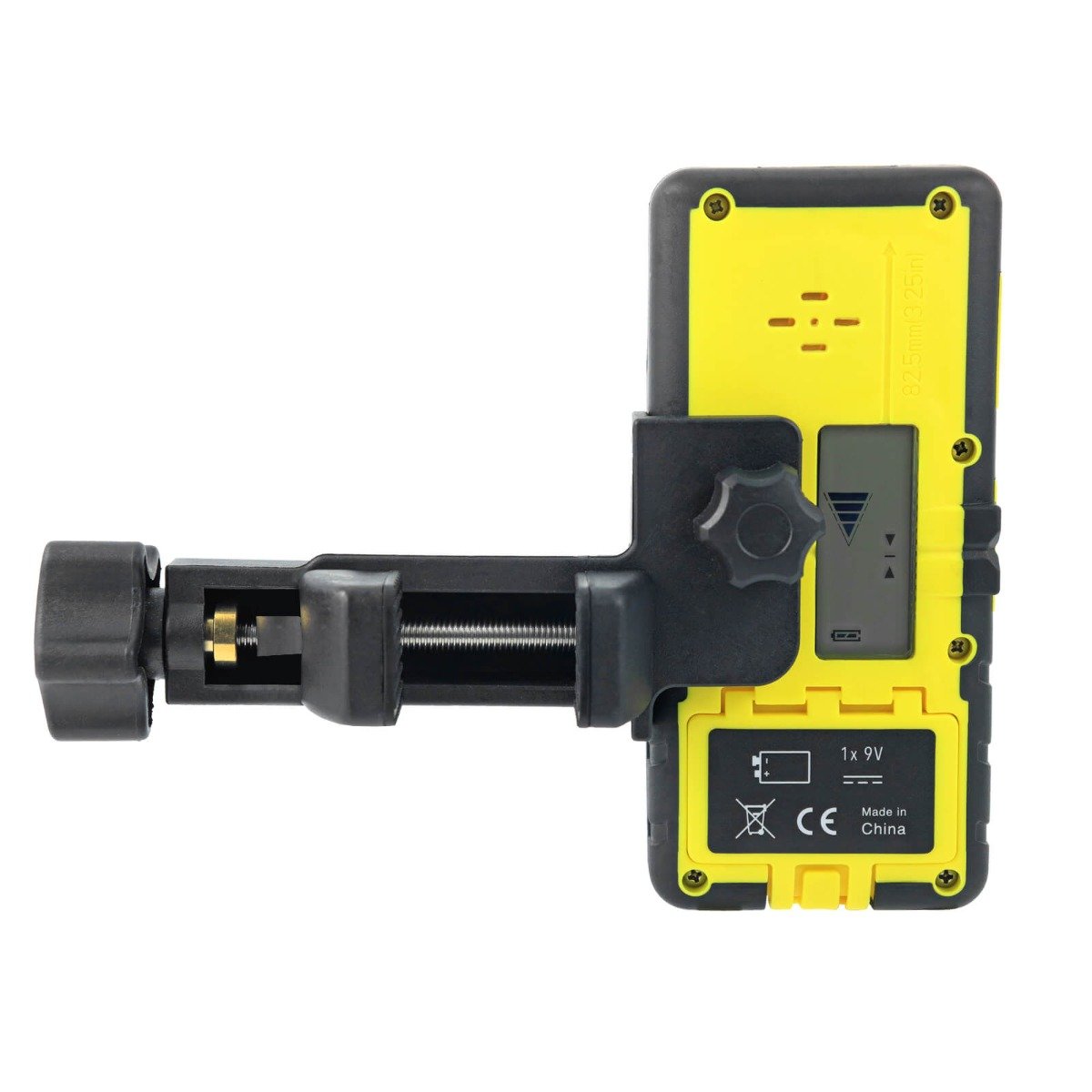

FMB-02 Staff Mounting Bracket
Fukuda 1 Year Outlet Warranty
