About this Product

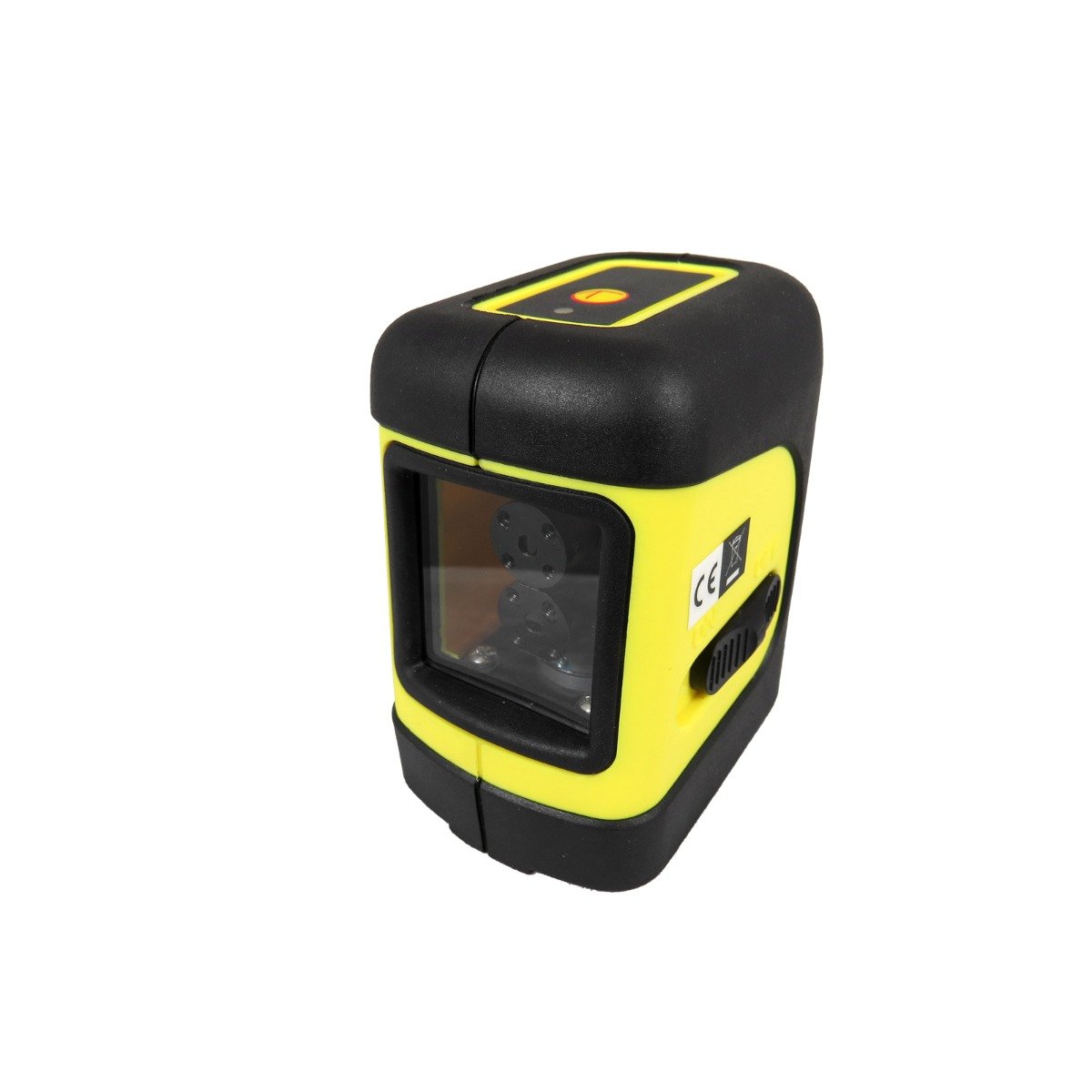

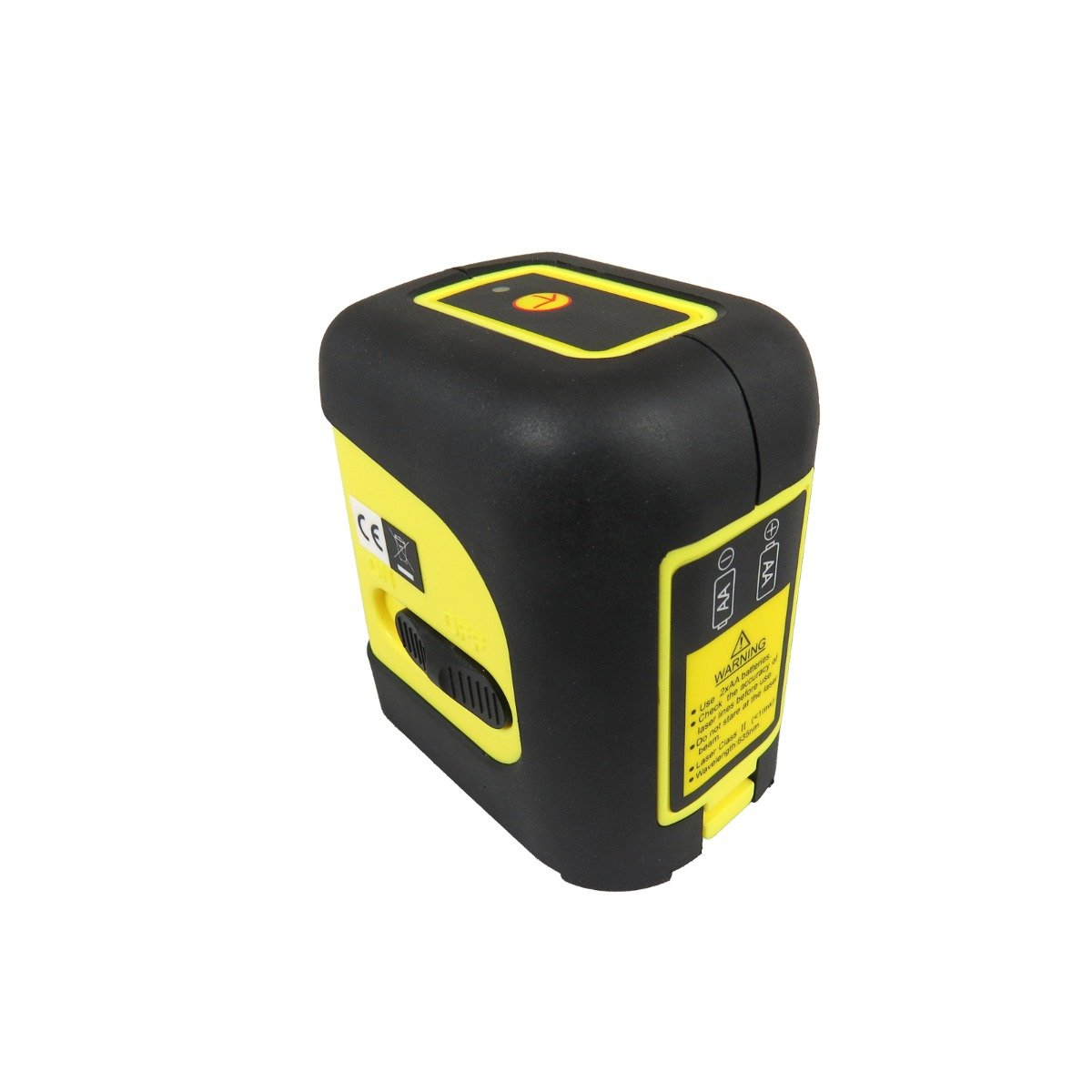

Fukuda EK-112R (Red Beam) Cross Line Laser
Self Levelling Cross Line Laser Level (Palm Type) & Magnetic Bracket (Indoor Only)
Fukuda Lasers have a new addition to their range, the EK-112R Cross Line Laser.
It self levels quickly & accurately; giving a fine, red laser cross - ideal for both horizontal & vertical setting-out. Both beams can be switched On & Off independently.
A transit latch protects the mechanism (to avoid transportation damage) and the case is surrounded by a black rubber cover for worksite protection.
The EK-112R comes with a very handy Multi-function Magnetic "L" bracket. It acts as an all-in-one Wall hanging bracket & 5/8" tripod Adapter.
So the user has the choice of mounting the laser on tripods or Floor to Ceiling Poles with either 1/4" or 5/8" threads. (Please see our Accessories section.)
All in all, its a very versatile Laser Cross kit, primarily for the Interior Trades.
Features
The EK-112R laser level is a dual output, self-levelling instrument which generates bright visible red Laser Lines in the form of a Cross.
Both laser beams can be switched ON or Off either independently, or used together.
A simple 3-second press of the power button (transit latch locked) puts the laser into MANUAL mode ie. to set inclines etc.
No bubble levels are needed as it aligns via a totally automatic, damped gravity system.
A transit latch mounted in the base can be used to physically lock the mechanism (when not in use) & this isolates the power too.
If the instrument detects any inaccuracy, it alarms by flashing the laser beams On & Off, once every second. So no false levels are given.
Specification
Accuracy: +/-2mm @ 10 metres
Working range: approx. 10m depending on ambient light.
Mounting thread: 1/4"
Laser diode: 635nm (1mW)
Laser class: 2
Self levelling range: +/-4 degrees to true horizontal.
Self levelling time: max. 5 secs.
Power supply: 2pc x AA alkaline batteries.
Battery life: at 20 deg C, 2 beams around 8hrs
Operating temperature: -10 to +50 deg C
Unit dimensions: 82 x 57 x 90mm
Weights: Instrument with batteries, 360g.
Weights: Complete kit with bracket & carry case etc, 590g.
Example usage
Ideal for wall Tiling / Stud wall & partitioning / Kitchen & bedroom unit installations / all Shop Fitting & refurbishment work / Electrical conduit & lighting / Plumbing & Pipework / Shelving systems & many others.

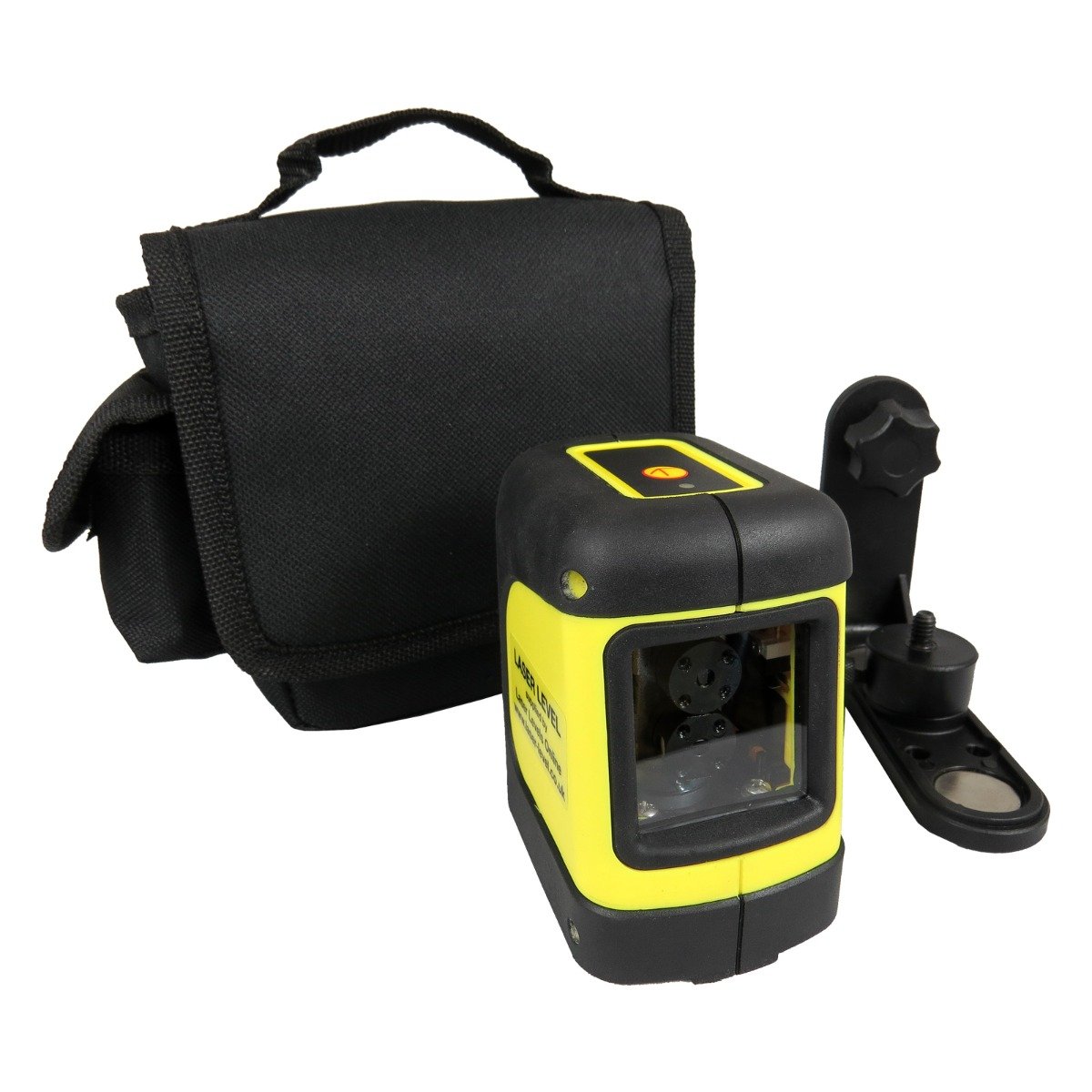

Kit comprises of
Fukuda EK-112R Instrument (checked and pre-calibrated)
2 x AA Alkaline Batteries
Magnetic "L" Shaped Mounting Bracket
5/8"-1/4" Adapter
Quick Start Guide
Soft Canvas Carry Case
Outlet Warranty: 1 Year
